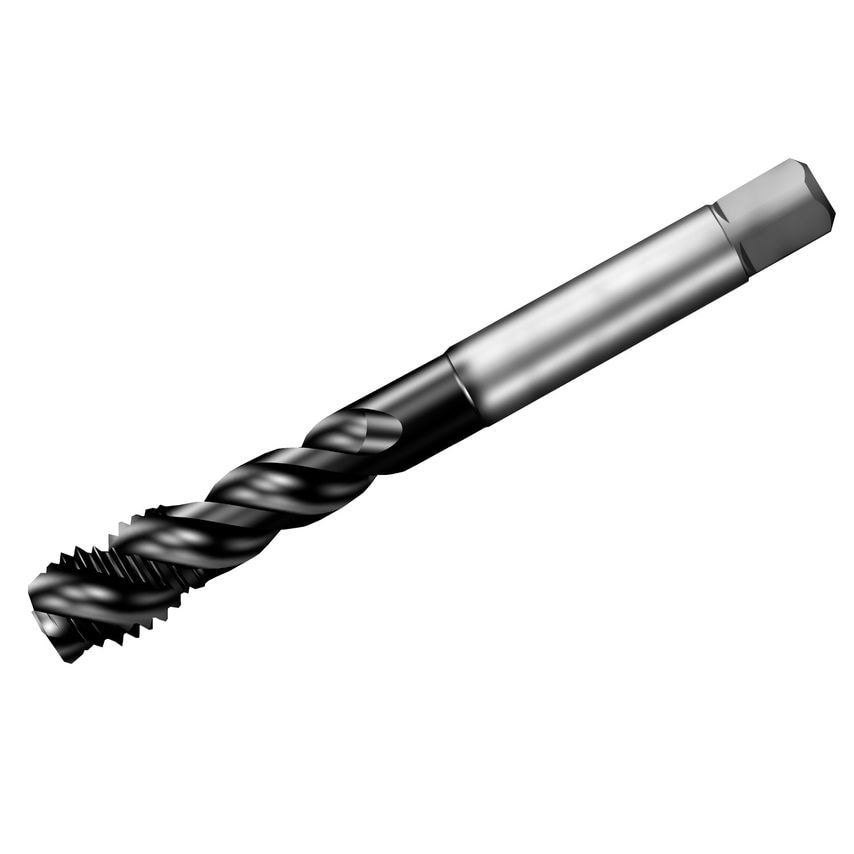

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Thread Tolerance Class | 6HX |
| Coolant Exit Style | 0 |
| Coating Process Type | PVD |
| Blind Hole Function Property | Yes |

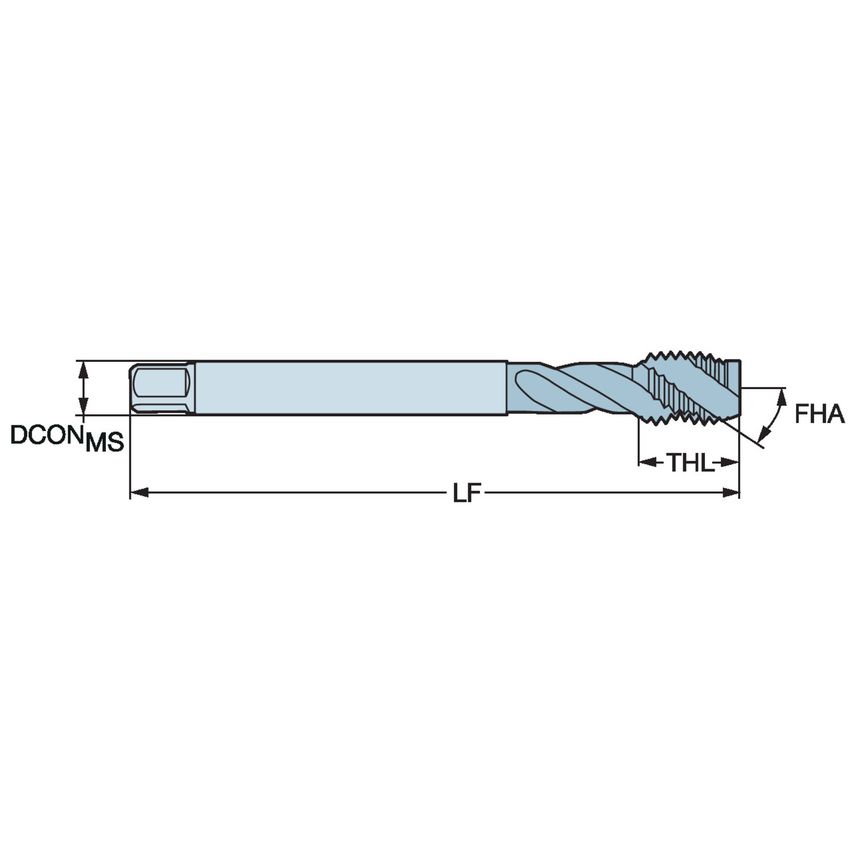

| Usable Length | 35mm |
| Functional Length | 70mm |
| Thread Pitch | 1mm |
| Coolant Entry Style | Without Coolant |
| Coating Type | TiAlN |
| Connection Diameter | 20mm |
| Unit Measured | Metric |
| Through Hole Function Property | Yes |
| MFR Part No. | 8056606 |
| Grade | P1PM |
| Thread Diameter Size | MF12x1 |
| CoroPak | 18 |
| Basic Standard Group | JIS-B-4436 |
