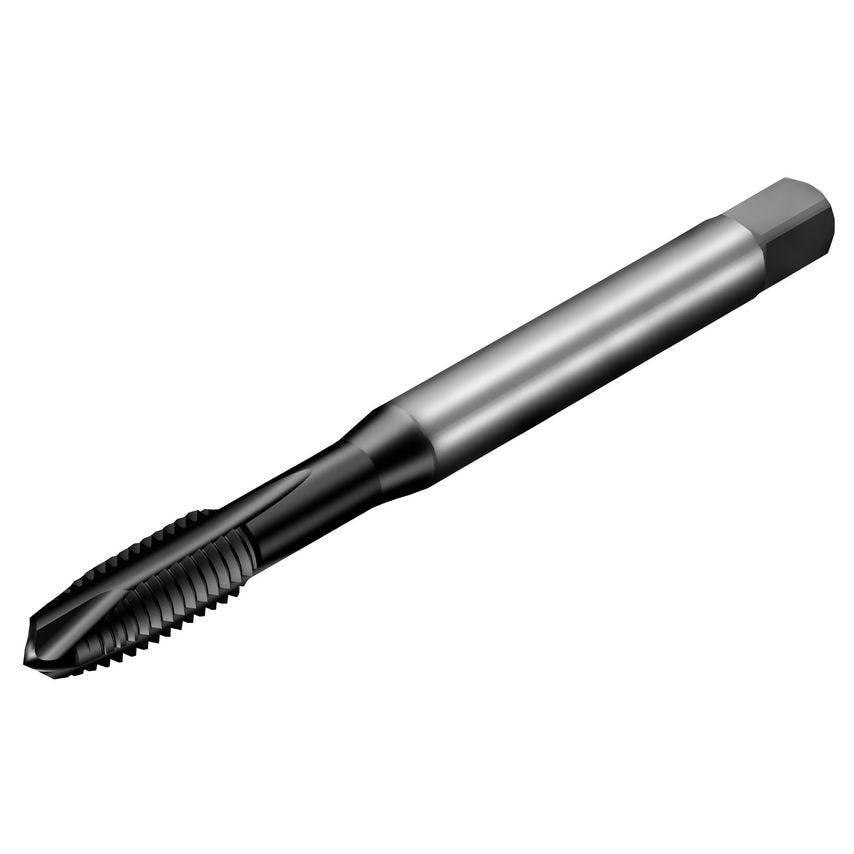

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Unit Measured | Metric |
| Thread Tolerance Class | 6HX |
| Grade | P1PM |
| CoroPak | 18 |
| Through Hole Function Property | Yes |
| Basic Standard Group | DIN/ANSI |
| Connection Diameter | 15.5mm |
| Coating Type | TiAlN |
| Tap Type | Spiral Point |
| Thread Diameter Size | M10 |
| Coating Process Type | PVD |
| Usable Length | 38mm |
| Coolant Entry Style | Without Coolant |
| Functional Length | 100mm |
| MFR Part No. | 8057113 |
| Coolant Exit Style | 0 |
| Thread Pitch | 1.5mm |
| Blind Hole Function Property | No |
