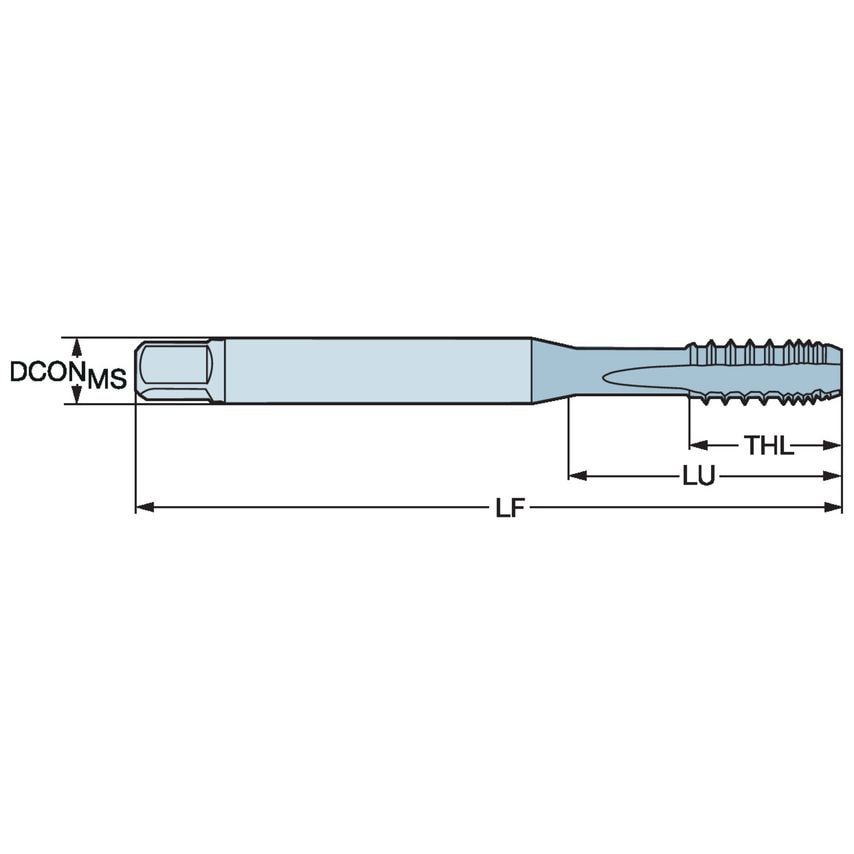

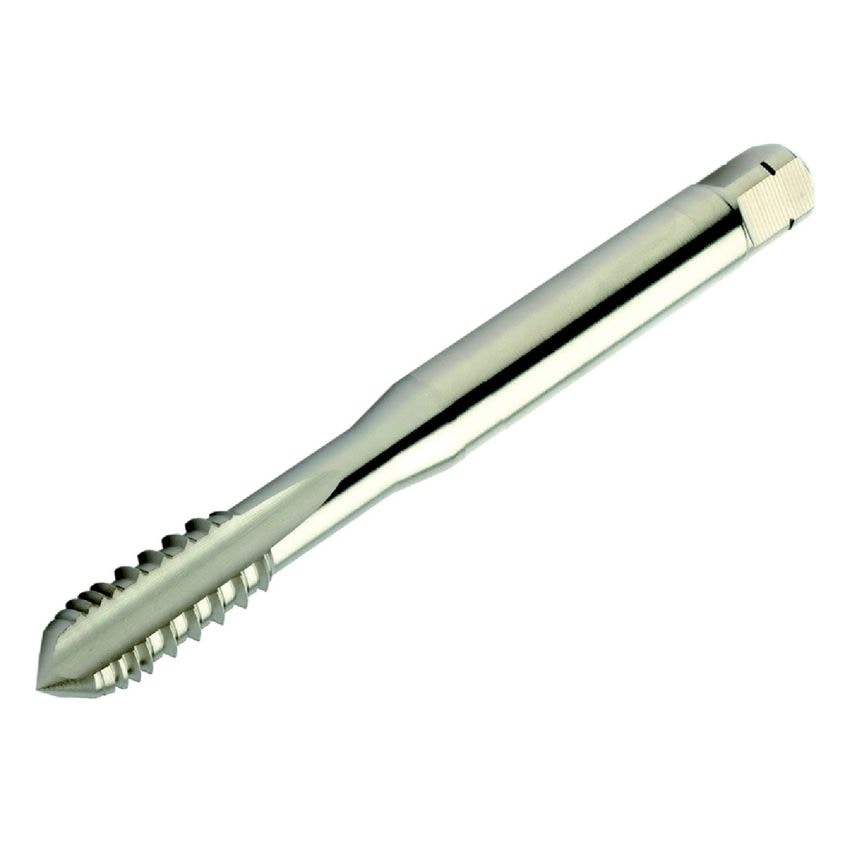

Product Range: CoroTap 100Tool Type: TappingCoroTap 100 is a range of straight flute taps that are optimized for short chipping ISO K, ISO N and ISO H materials. Suitable for through and blind holes.Features & Benefits- Straight flute taps for through and blind holes in short-chipping materials- Variety of thread forms and standards- External and internal coolant delivery
| Coating Type | Uncoated |
| Connection Diameter | 27mm |
| CoroPak | 170 |
| Coolant Entry Style | Without Coolant |
| Basic Standard Group | DIN 371 |
| Coating Process Type | UNCOAT |
| Thread Size | M10 |
| Thread Diameter Size | M 10 |
| Usable Length | 39mm |
| Grade | D150 |
| Through Hole Function Property | Yes |
| Functional Length | 100mm |
| Coolant Exit Style | 0 |
| Blind Hole Function Property | Yes |
| Unit Measured | Metric |
| MFR Part No. | 7605007 |
| Thread Tolerance Class | 6H |
| Thread Pitch | 1.5mm |
