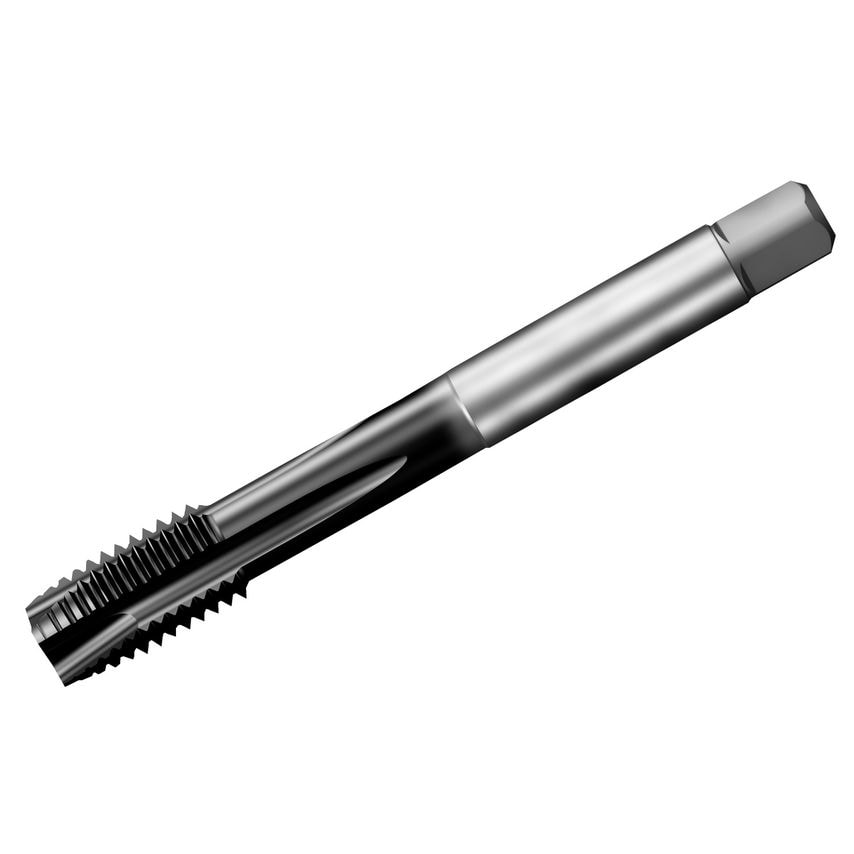

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Blind Hole Function Property | No |
| Weight | 0.41kg |
| Coating Type | TiAlN |
| Through Hole Function Property | Yes |
| Usable Length | 91mm |
| CoroPak | 18 |
| MFR Part No. | 8057375 |
| Basic Standard Group | DIN376 |
| Thread Tolerance Class | 6HX |
| Coolant Exit Style | 0 |
| Thread Size | 20mm |
| Unit Measured | Metric |
| Functional Length | 160mm |
| Tap Type | Spiral Point |
| Coolant Entry Style | Without Coolant |
| Coating Process Type | PVD |
| Grade | P1PM |
| Connection Diameter | 4mm |
| Thread Diameter Size | M27 |
| Thread Pitch | 3mm |
