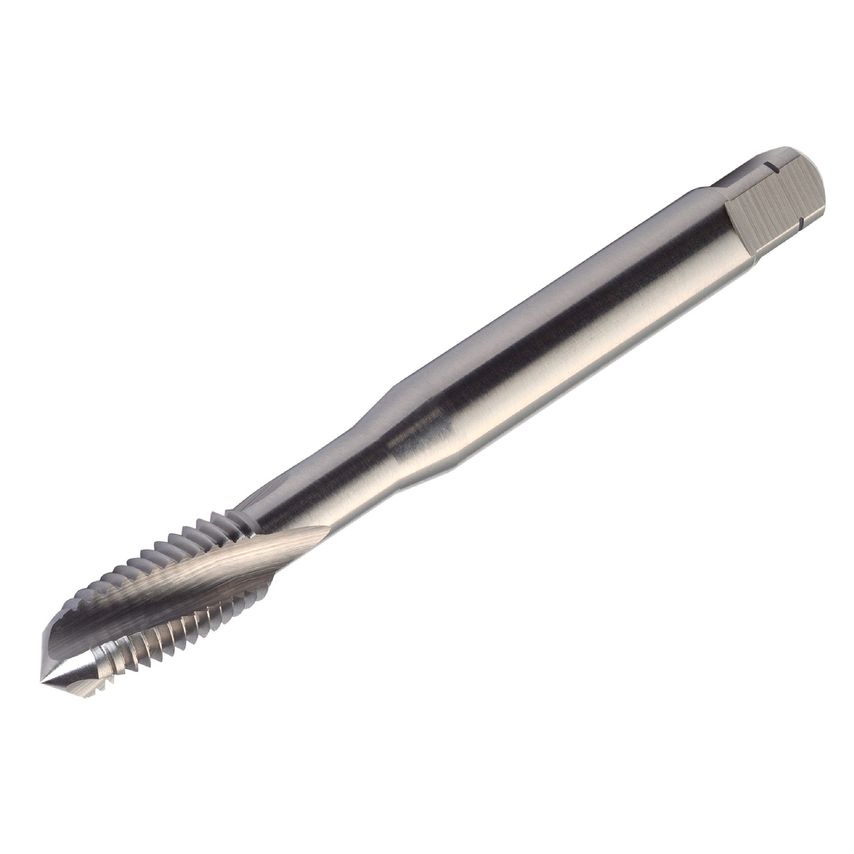

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Coating Type | Uncoated |
| Usable Length | 21mm |
| Grade | D150 |
| Coolant Entry Style | Without Coolant |
| Coolant Exit Style | 0 |
| Basic Standard Group | DIN 371 |
| Thread Pitch | 0.7mm |
| Blind Hole Function Property | Yes |
| CoroPak | 170 |
| Connection Diameter | 20mm |
| Functional Length | 63mm |
| Thread Tolerance Class | 6H |
| Thread Diameter Size | M 4 |
| MFR Part No. | 7605848 |
| Unit Measured | Metric |
| Coating Process Type | UNCOAT |
| Through Hole Function Property | Yes |
