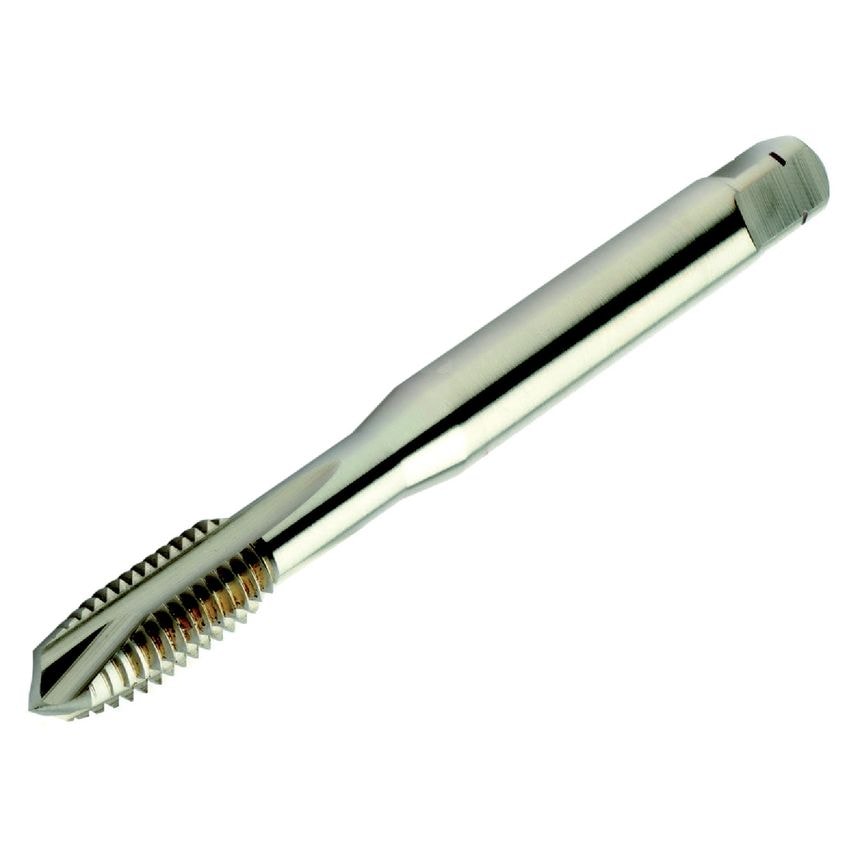

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.

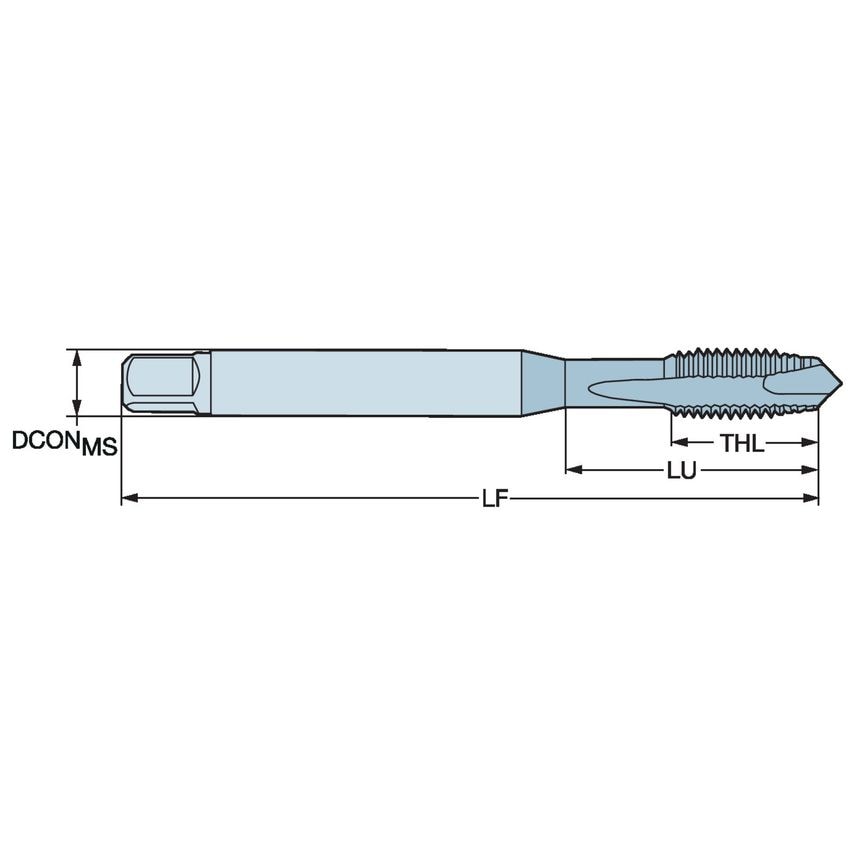

| Connection Diameter | 58.84mm |
| ISO Cutting Tool Material | HSS >=4 |
| Coolant Exit Style | 0 |
| Usable Length | 27mm |
| Blind Hole Function Property | No |
| Basic Standard Group | DIN 371 |
| Coating Type | Uncoated |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Grade | B150 |
| Functional Length | 80mm |
| Thread Diameter Size | M 6 |
| Tap Type | Spiral Point |
| CoroPak | 170 |
| Thread Tolerance Class | 6H |
| MFR Part No. | 7605859 |
| Coolant Entry Style | Without Coolant |
| Coating Process Type | UNCOAT |
| Thread Pitch | 1mm |
