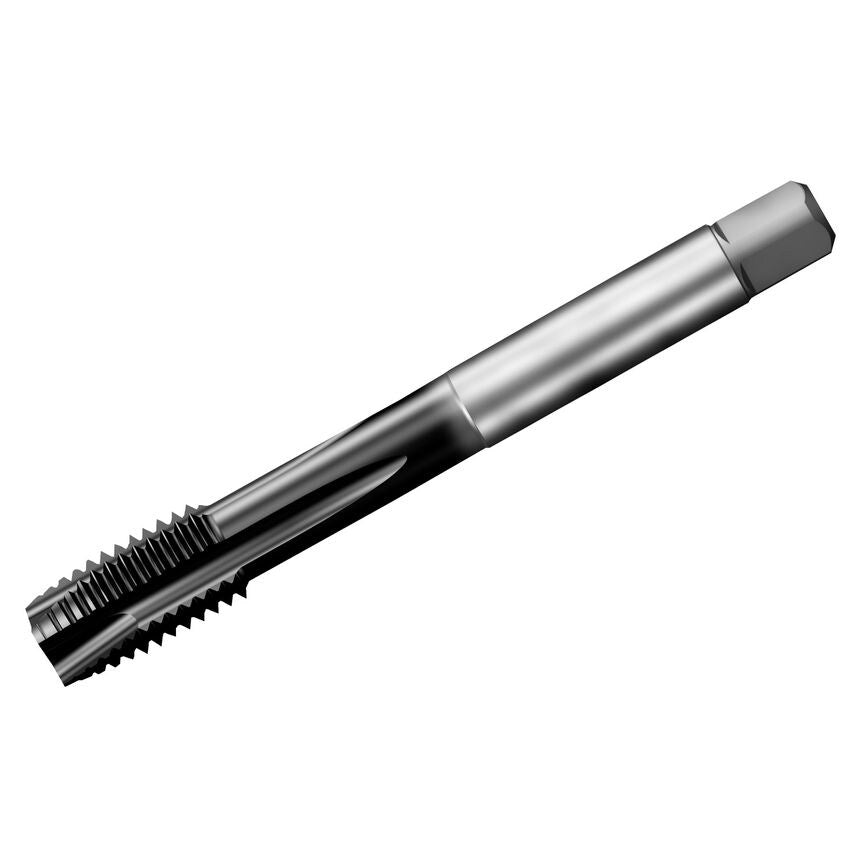

Product Range: CoroTap 200Tool Type: TappingCoroTap 200 feature spiral point taps for through holes designed to push the chips forward. The range includes versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral point taps for through holes- Available in many thread forms and standards- Up to 3 D depending on material- Optimized geometries allow for reliable, predictable tool life in both through hole applications.- Optimized grades ensure low friction at high speeds for precision threads, resulting in excellent thread quality.
| Coating Process Type | PVD |
| Coolant Entry Style | Without Coolant |
| Thread Diameter Size | MF30x1.5 |
| Coating Type | TiAlN |
| Grade | P1PM |
| Usable Length | 67mm |
| Coolant Exit Style | 0 |
| Connection Diameter | 6mm |
| Blind Hole Function Property | No |
| Weight | 0.47kg |
| Functional Length | 150mm |
| Thread Pitch | 1.5mm |
| Through Hole Function Property | Yes |
| CoroPak | 18 |
| Basic Standard Group | DIN374 |
| MFR Part No. | 8057394 |
| Unit Measured | Metric |
| Thread Tolerance Class | 6HX |
| Tap Type | Spiral Point |
