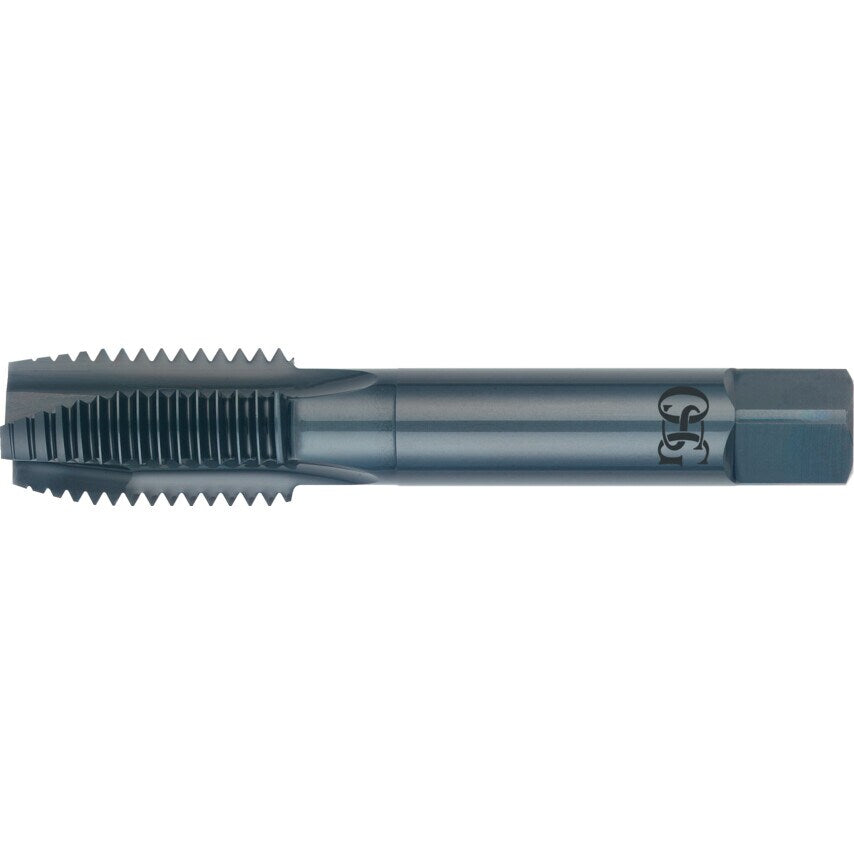

Spiral Point/Gun Nose - Metric.
HSS-EV3. Oxidised finish. 1066PT for through holes.
Type 1066.
Manufactured from 3% vanadium super grade high speed steel. Increased vanadium produces toughness without adding brittleness. Greater resistance to work generated heat. Prolonged cutting edge life. Manufactured to ISO 529 : 1975.
BSP and BSPF also available.
| Overall Length | 72mm |
| Tap Type | Spiral Point |
| Number of Flutes | 3 |
| Square Width | 7.1mm |
| Lead | Plug |
| Thread Direction | Right Hnd |
| Material | HSS-EV3 |
| Pitch | 1.25mm |
| Finish/Coating | Steam Tempered |
| Class of Fit | 6H |
| Thread Size | M9 |
| Dimensions Standard | ISO 529 |
| Thread Length | 22mm |
| Thread Standard | Metric Coarse |
| MFR Part No. | 22101654 |
| Coolant Delivery | External |
| Shank Diameter | 9mm |
| Series | 1066-POT |
