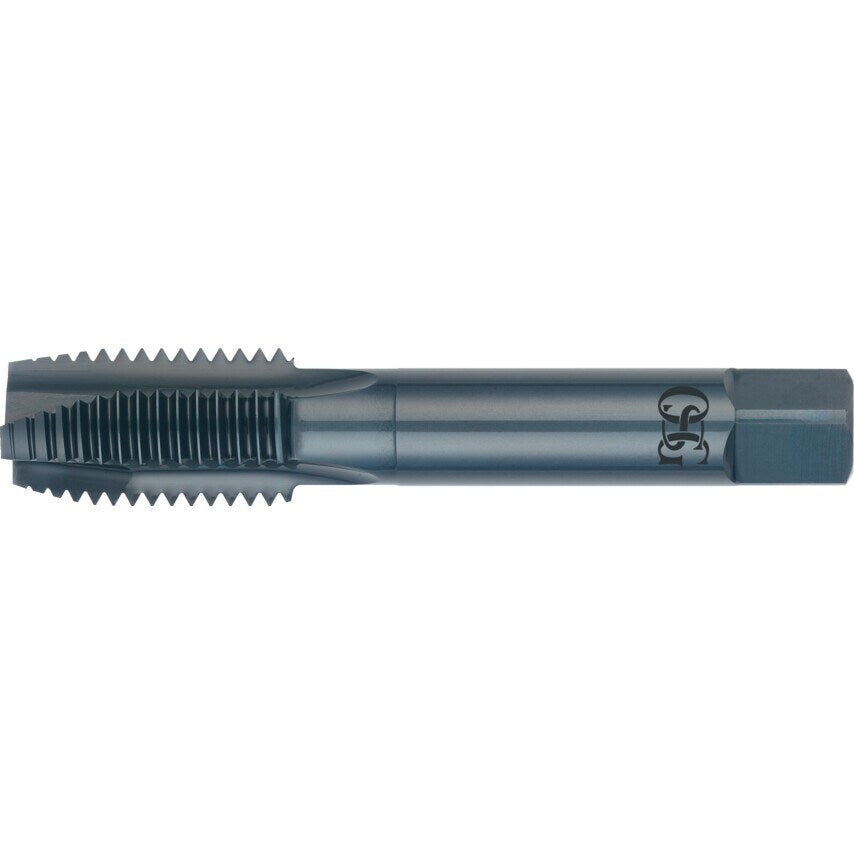

Spiral Point/Gun Nose - Metric.
HSS-EV3. Oxidised finish. 1066PT for through holes.
Type 1066.
Manufactured from 3% vanadium super grade high speed steel. Increased vanadium produces toughness without adding brittleness. Greater resistance to work generated heat. Prolonged cutting edge life. Manufactured to ISO 529 : 1975.
BSP and BSPF also available.
| Material | HSS-EV3 |
| Thread Standard | Metric Coarse |
| Thread Size | M3.5 |
| Dimensions Standard | ISO 529 |
| Tap Type | Spiral Point |
| Thread Direction | Right Hnd |
| Overall Length | 50mm |
| MFR Part No. | 22101404 |
| Shank Diameter | 3.55mm |
| Finish/Coating | Steam Tempered |
| Pitch | 0.6mm |
| Thread Length | 13mm |
| Series | 1066-POT |
| Lead | Plug |
| Coolant Delivery | External |
| Square Width | 2.8mm |
| Number of Flutes | 3 |
| Class of Fit | 6H |
