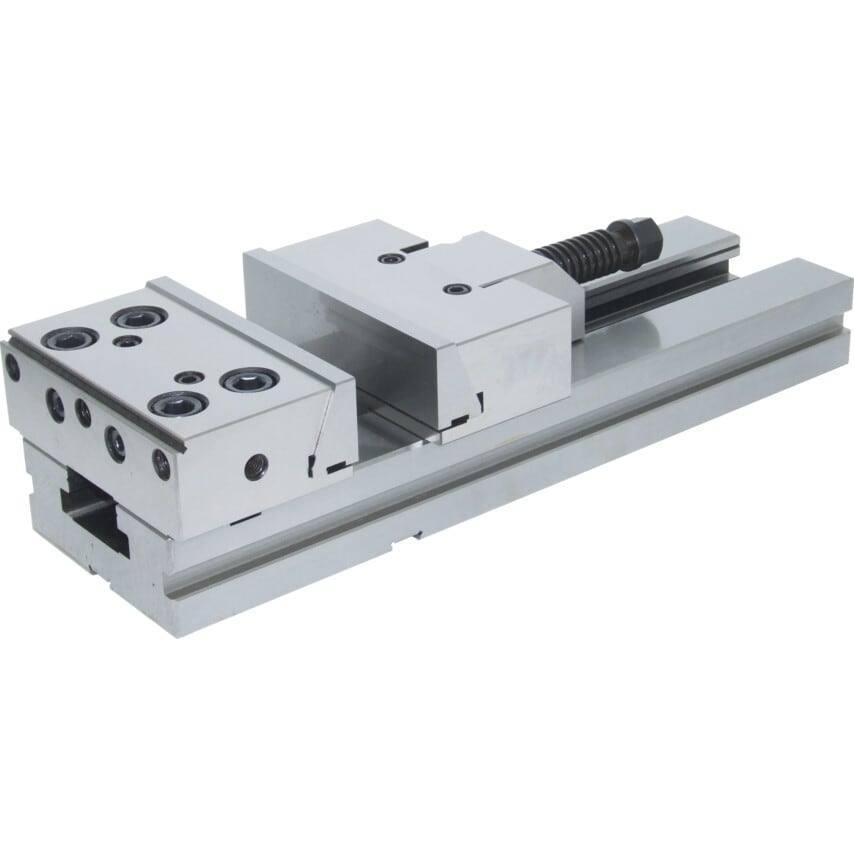

Precision modular vices are designed to be used on standard and CNC machines for precision grinding and milling. The vice could be set up individually or work in multiples, on tables or palletised components depending on the machined material dimensions.
Made from hardened high grade alloy steel.
Perpendicular accuracy: 0.005mm. Parallelism: 0.005mm.
Accessories:

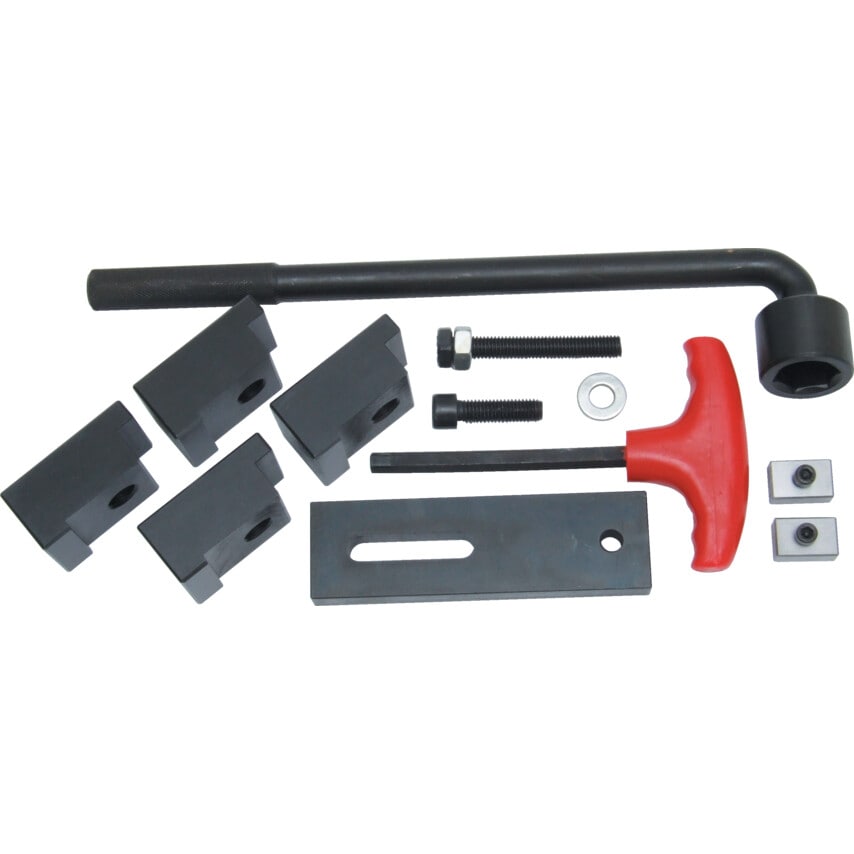

L-wrench, T-wrench, vice holding clamp, work stop with main bolt, positioning key-nuts etc.
| Mounting Type | Bolt/Clamp |
| Overall Width | 150mm |
| Jaw Opening | 200mm |
| Jaw Width | 150mm |
| Jaw Material | Alloy Steel |
| Throat Depth | 50mm |
| Overall Material | Alloy Steel |
| Overall Dimensions | 420 x 150mm |
| Jaw Height | 50mm |
| Clamping Force | 5000kg |
| Base Type | Fixed |
| Jaw Dimensions | 150 x 50mm |
| Compatible Vice Jaw Width | 150mm |
| Jaw Face Material | Alloy Steel |
| Vice Type | Machine Vice |
| Overall Length | 420mm |
| MFR Part No. | PVM150 |
