                      Proto save

                      £2.97

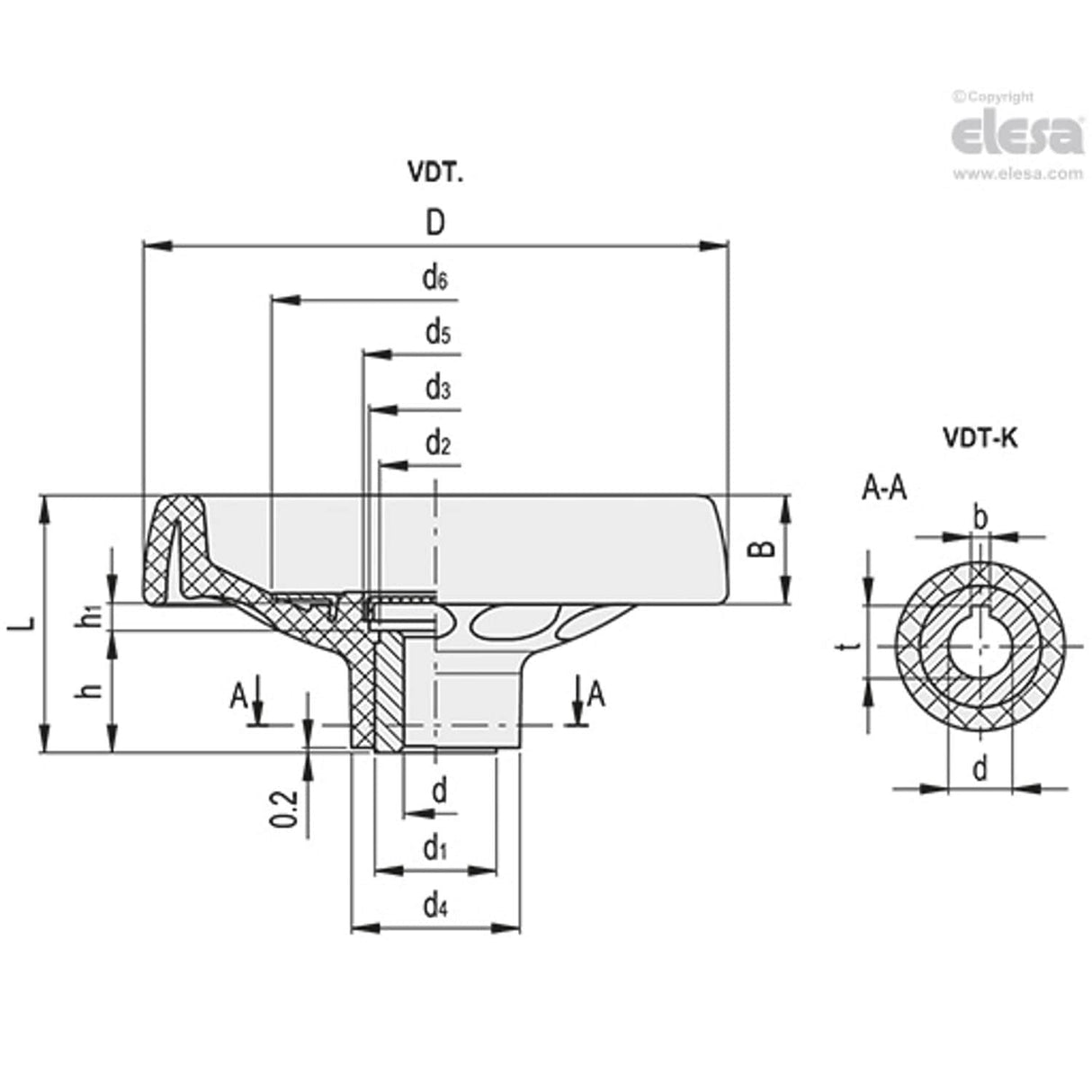

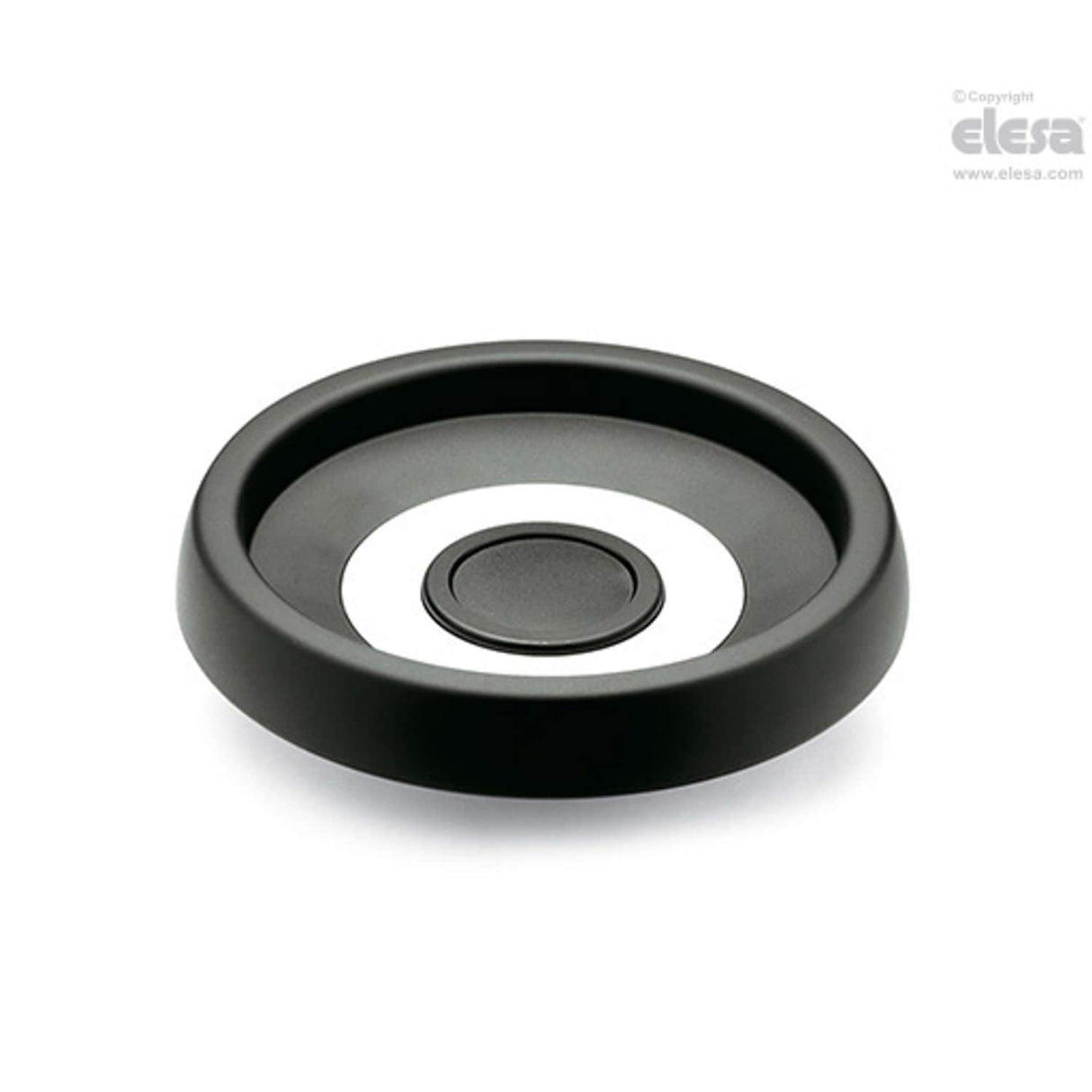

                          VDT. Solid handwheels, Technopolymer For product drawing and dimensions refer to pdf Item data sheet.

| d3 | 26 |
| C# | 180Nm |
| D | 100 |
| L# | 21J |
| d5 | 28 |
| B | 22 |
| d6 | 54 |
| h1 | 5.5 |
| Diameter | 100mm |
| t | 11.4 |
| d2 | 20 |
| MFR Part No. | VDT.100 A-10-K |
| d1 | 22 |
| h | 22 |
| L | 49 |
| d(H9) | 10 |
| d4 | 32 |
| Weight | 180g |
| b | 3 |
