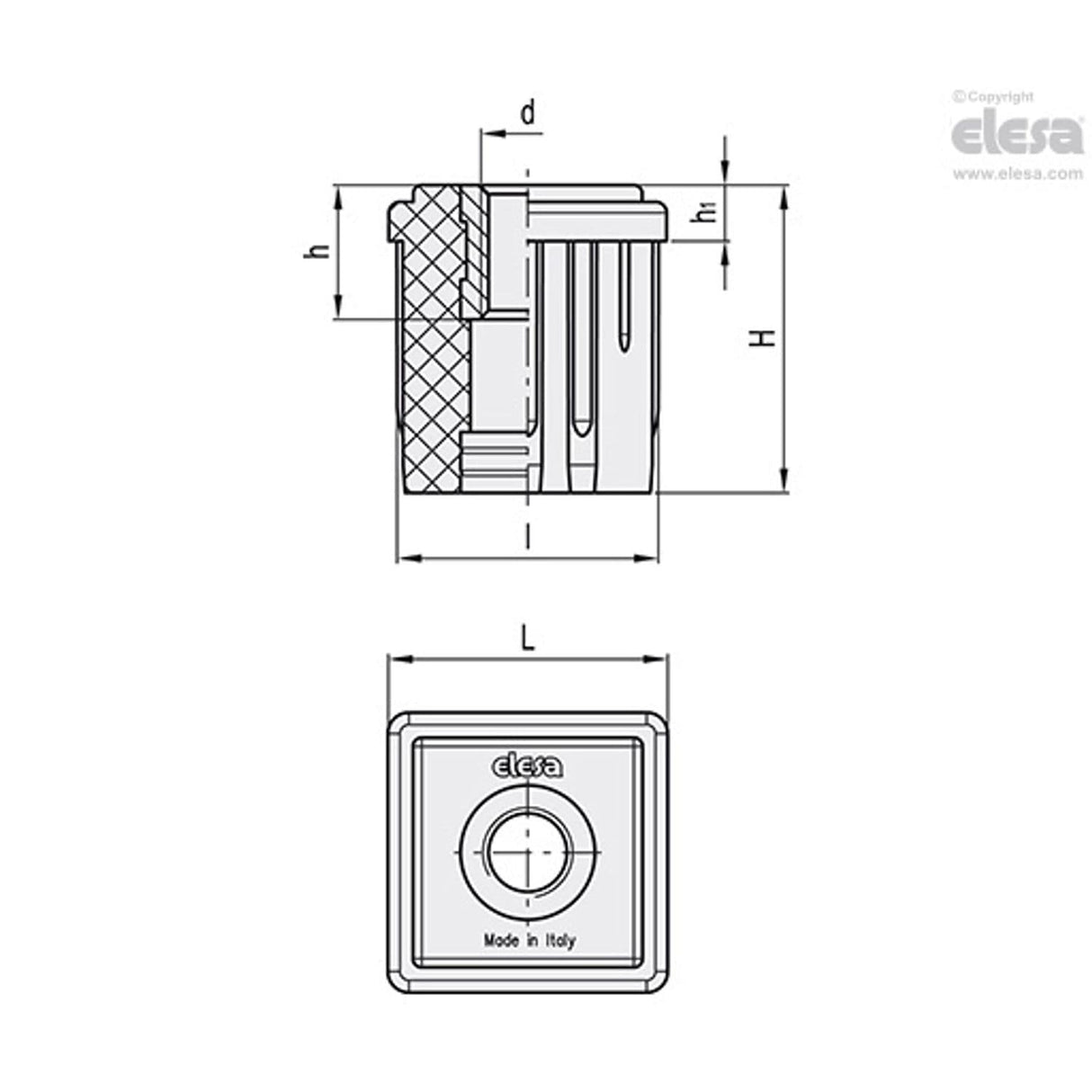

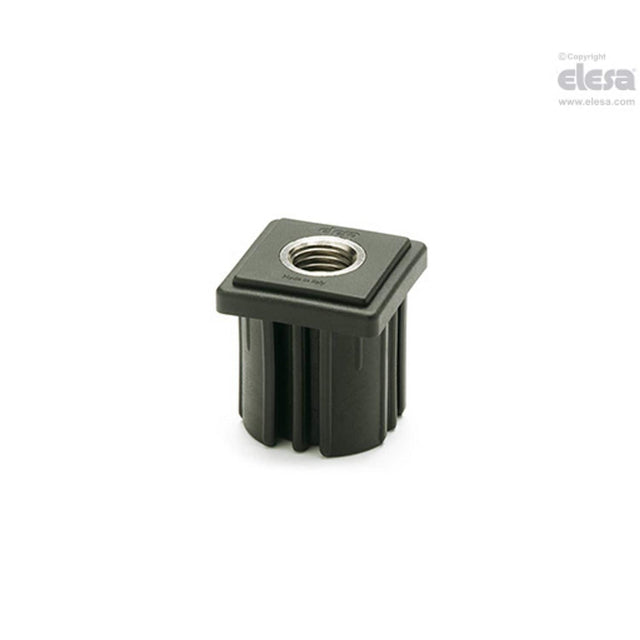

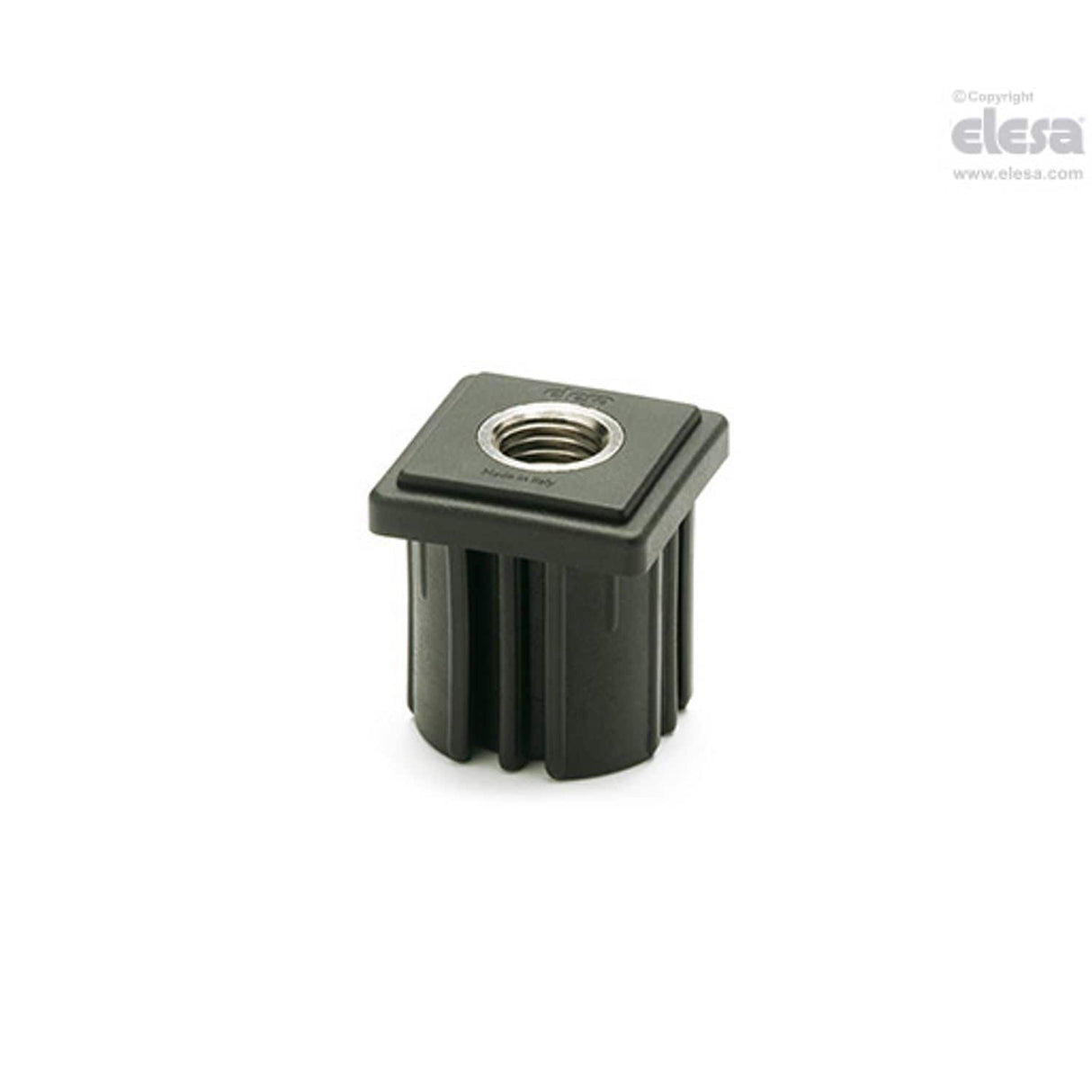

ND.Q Square end-caps for tubes, heavy loads, technopolymer For product drawing and dimensions refer to pdf Item data sheet.
| h | 15 |
| Weight | 63g |
| H | 43 |
| l | 36.5 |
| h1 | 8 |
| External Diameter | 40 |
| Inner Diameter | 36 |
| Tube Thickness | 2 |
| d | M10 |
| Max. Static Load | 18000N |
| MFR Part No. | ND.Q-40x2-M10 |
| L | 40 |
