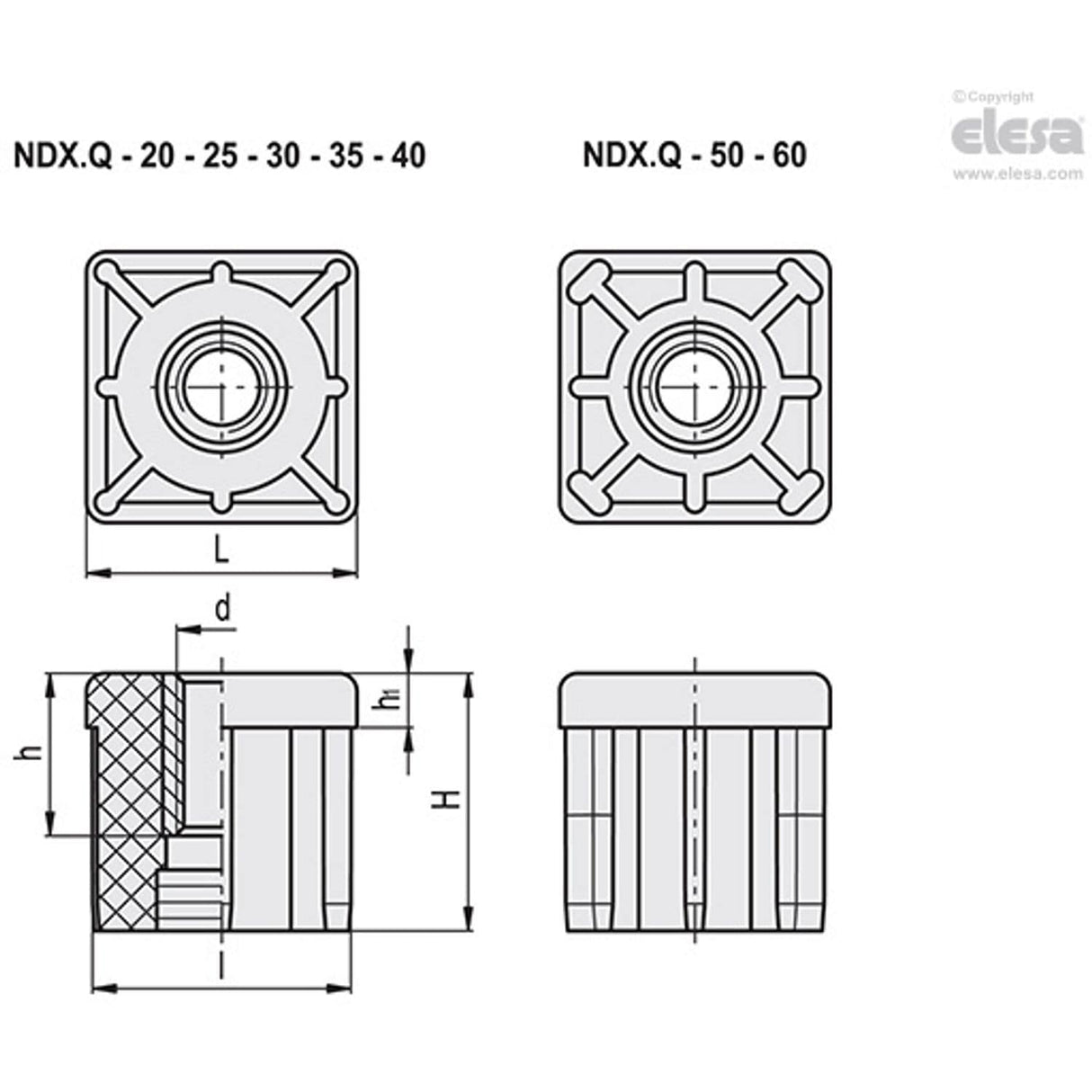

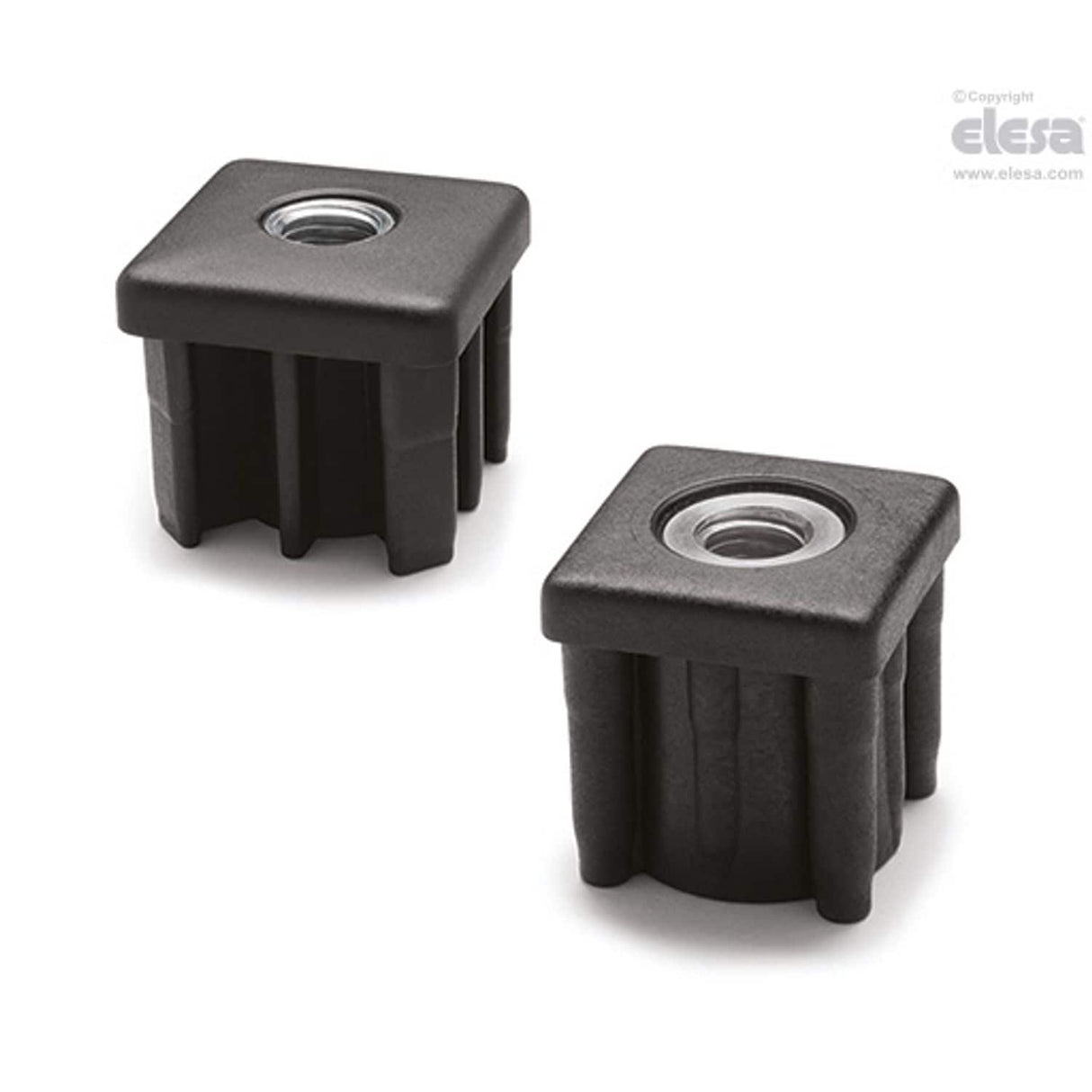

NDX.Q Square end-caps for tubes, For product drawing and dimensions refer to pdf Item data sheet.
| External Diameter | 25 |
| Inner Diameter | 22 |
| Max. Static Load | 4500N |
| h1 | 6 |
| L | 25 |
| MFR Part No. | NDX.Q-25x1.5-M12 |
| Tube Thickness | 1.5 |
| l | 22 |
| h | 10 |
| H | 26 |
| Weight | 19g |
| d | M12 |
