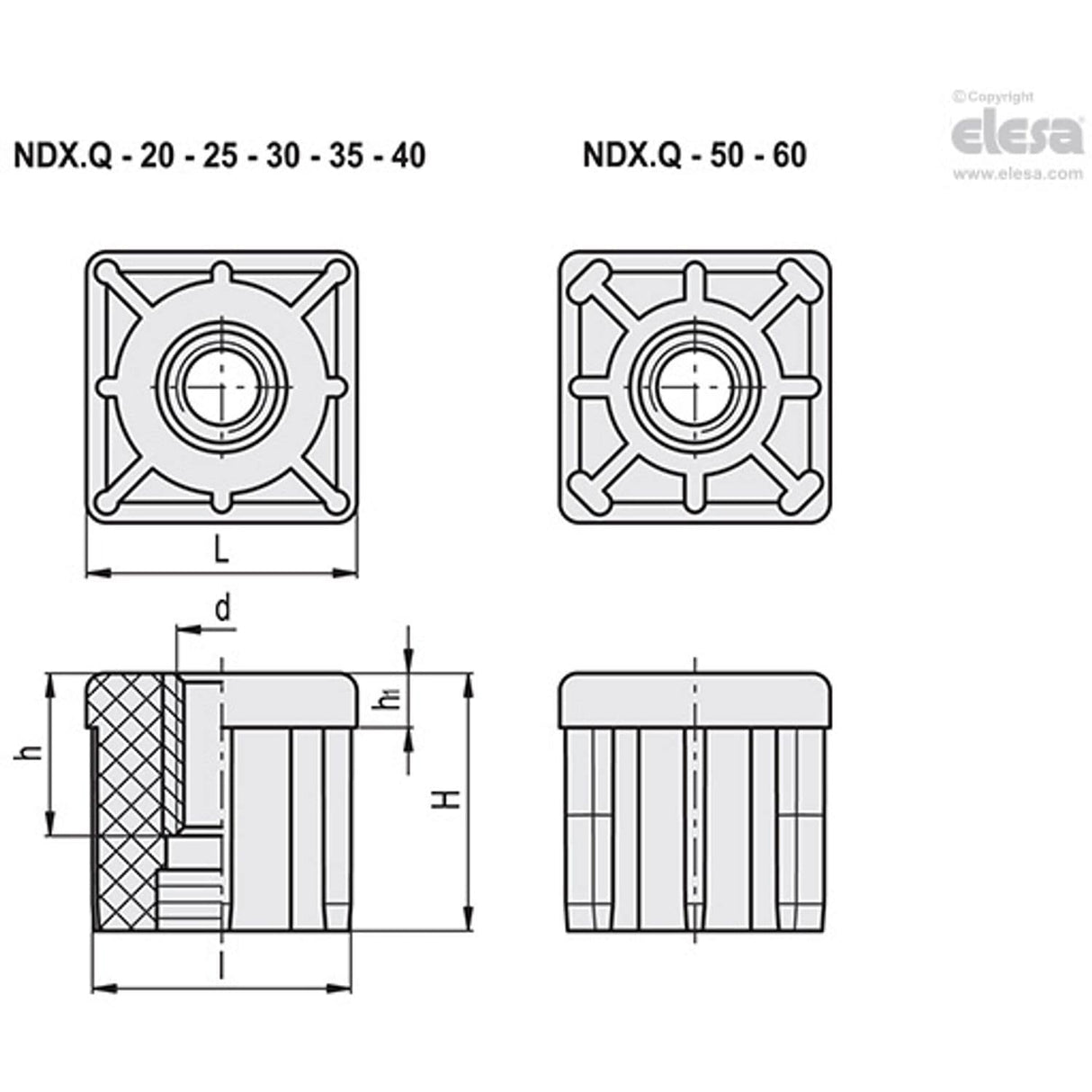

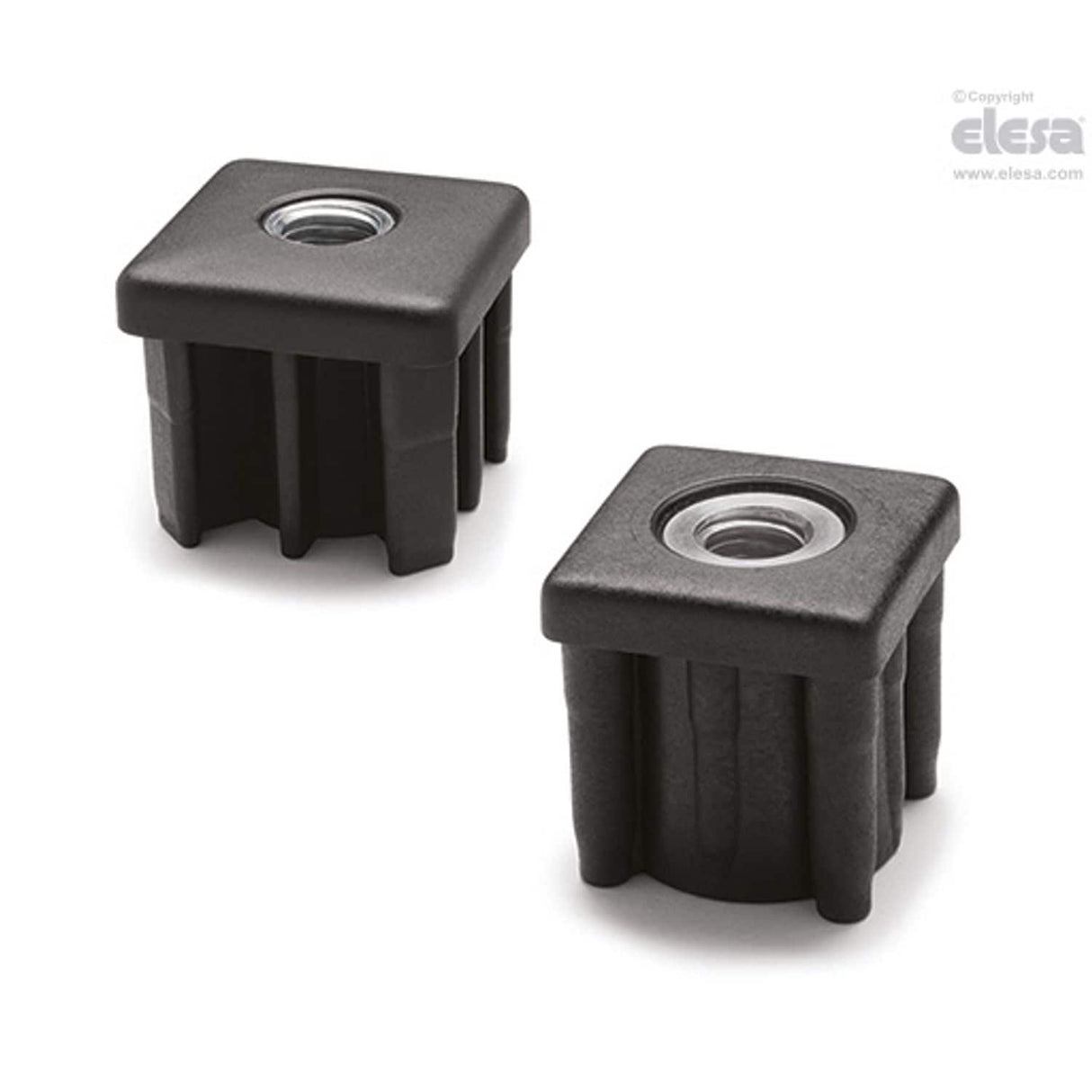

NDX.Q Square end-caps for tubes, For product drawing and dimensions refer to pdf Item data sheet.
| Weight | 32g |
| H | 31 |
| h1 | 6 |
| MFR Part No. | NDX.Q-30x1.5-M8 |
| l | 27 |
| L | 30 |
| d | M8 |
| Inner Diameter | 27 |
| Tube Thickness | 1.5 |
| Max. Static Load | 4500N |
| External Diameter | 30 |
| h | 10 |
