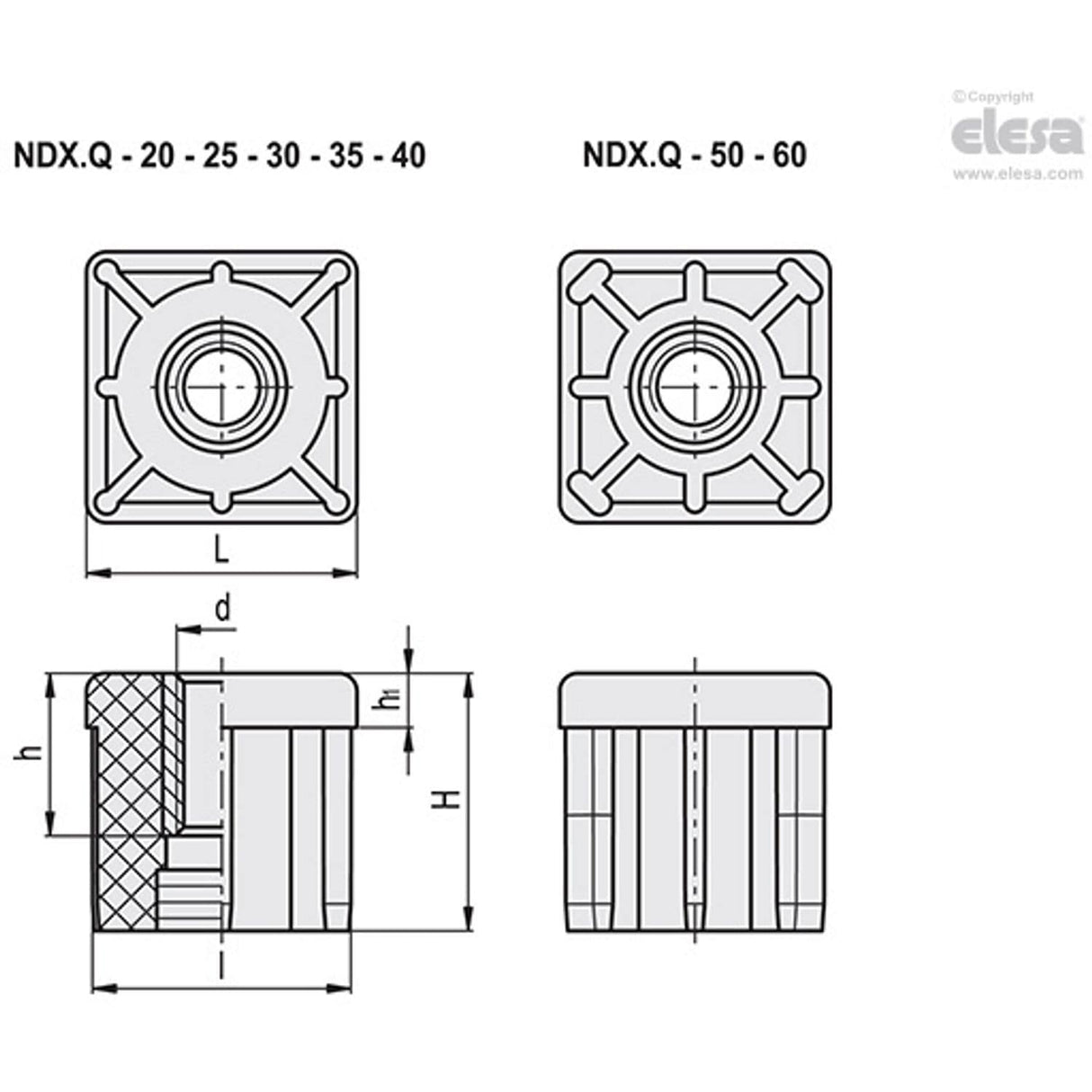

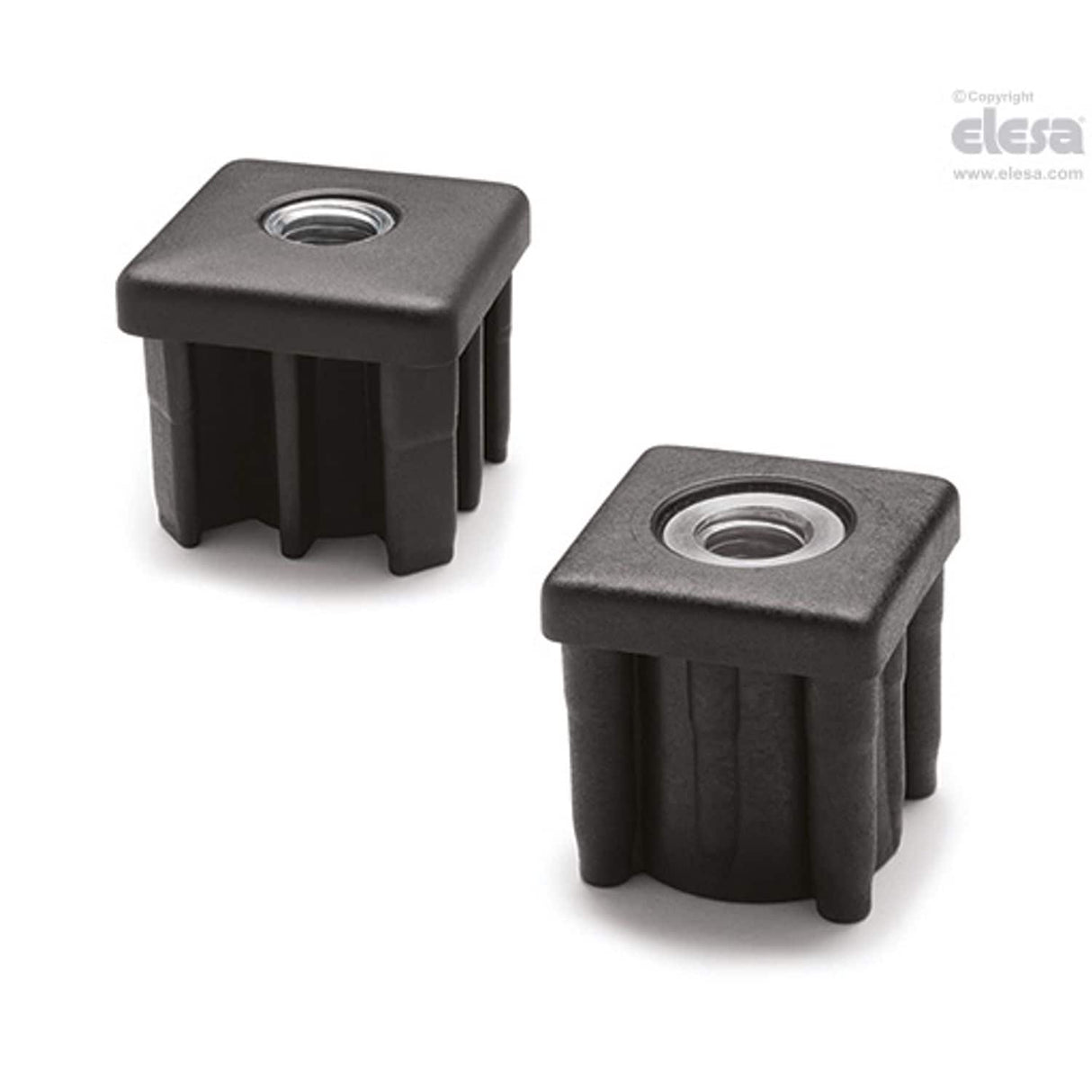

NDX.Q Square end-caps for tubes, For product drawing and dimensions refer to pdf Item data sheet.
| Max. Static Load | 6000N |
| h1 | 8 |
| L | 40 |
| h | 10 |
| Tube Thickness | 1.2 |
| Weight | 54g |
| d | M8 |
| l | 37.6 |
| H | 38 |
| Inner Diameter | 37.6 |
| MFR Part No. | NDX.Q-40x1.2-M8 |
| External Diameter | 40 |
