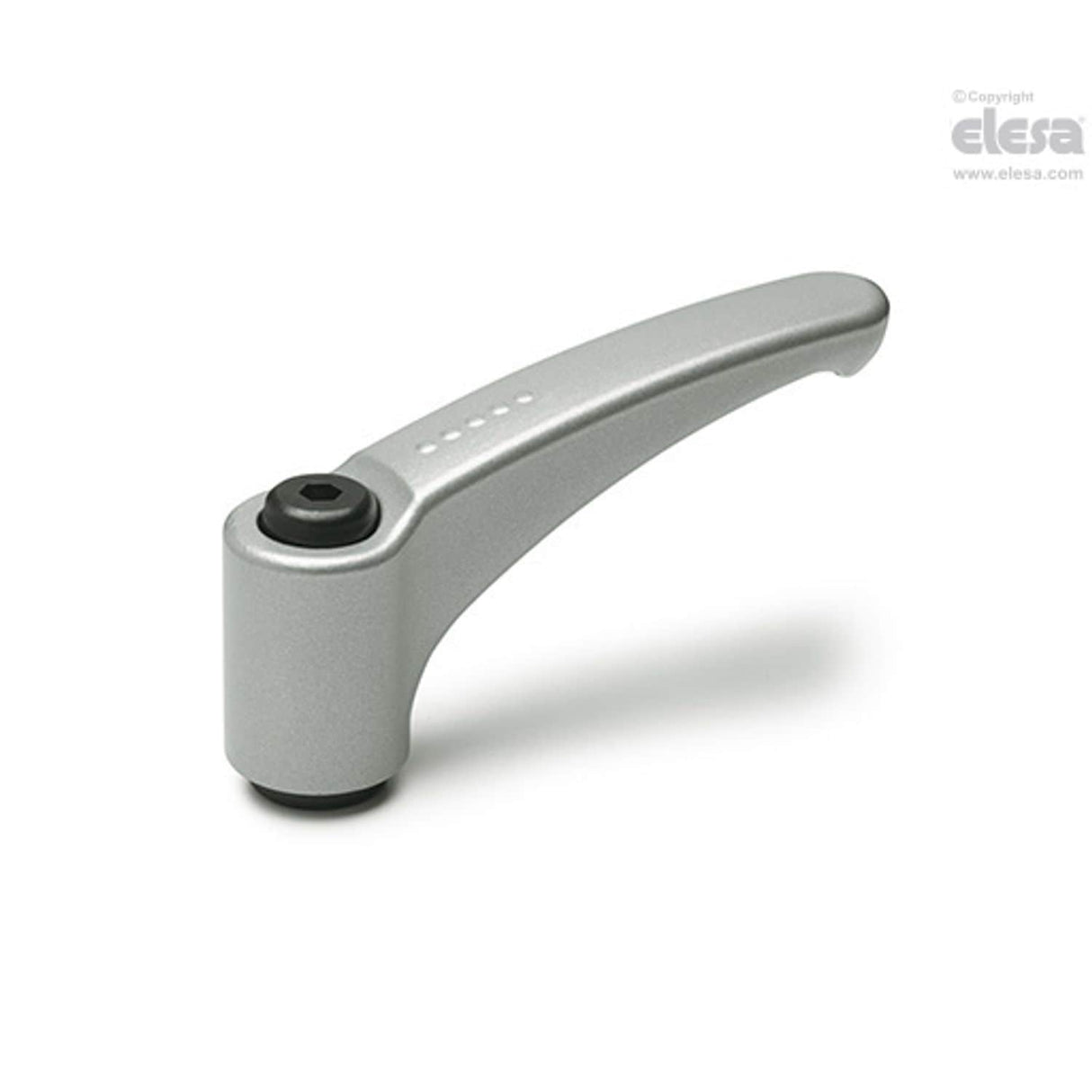

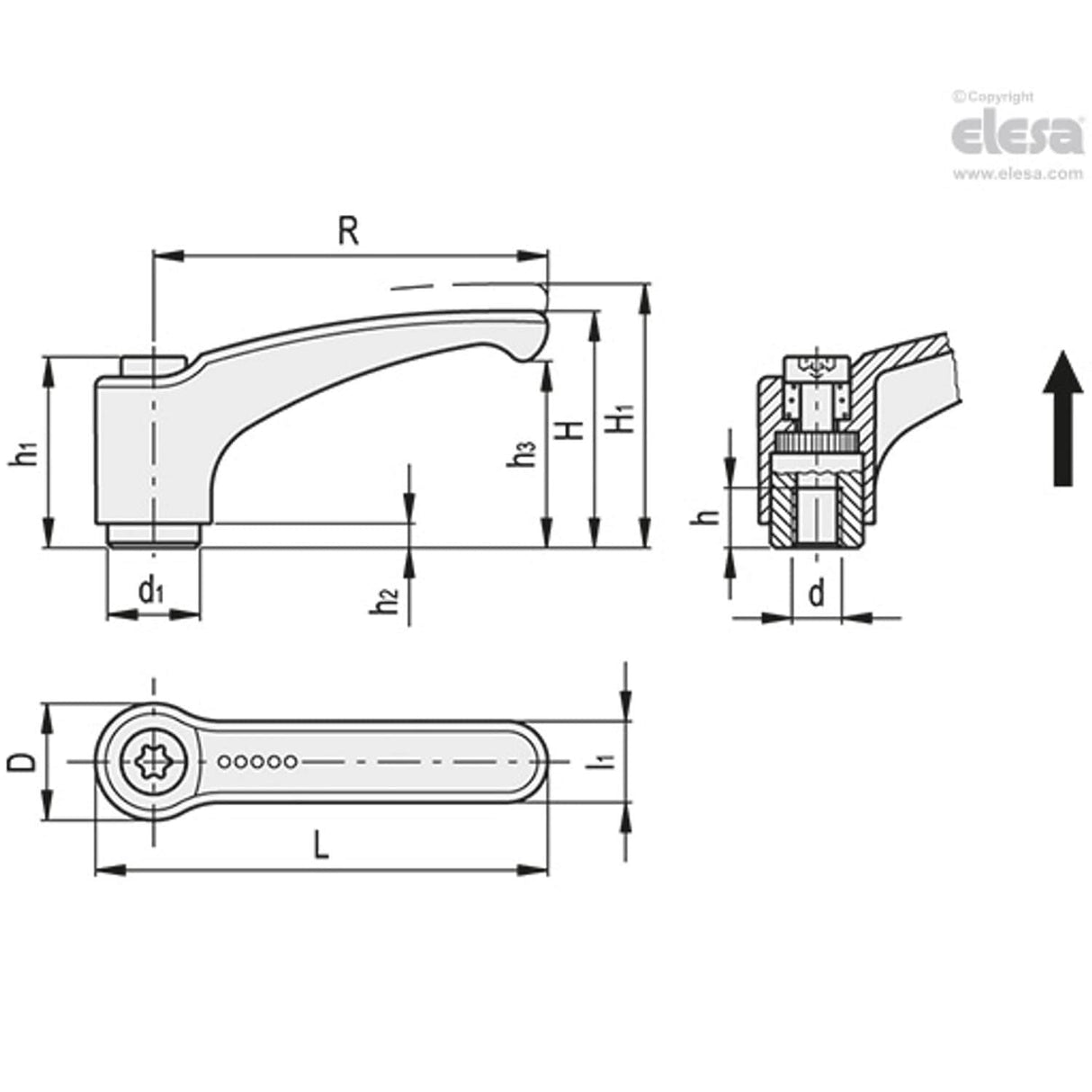

ERM. Adjustable handles, Zinc alloy, steel or stainless steel clamping element, Black-oxide steel clamping element, threaded hole For product drawing and dimensions refer to pdf Item data sheet.
| h2 | 5 |
| MFR Part No. | ERM.95 A-M10-C6 |
| H1 | 61 |
| h1 | 43 |
| R | 95 |
| d1 | 19.5 |
| h | 17 |
| Colour | C6 - RAL 3000 |
| l1 | 18 |
| d | M10 |
| H | 56 |
| Diameter | 25mm |
| h3 | 42 |
| L | 109 |
| D | 25 |
| Weight | 208g |
| Number of Teeth | 28 |
