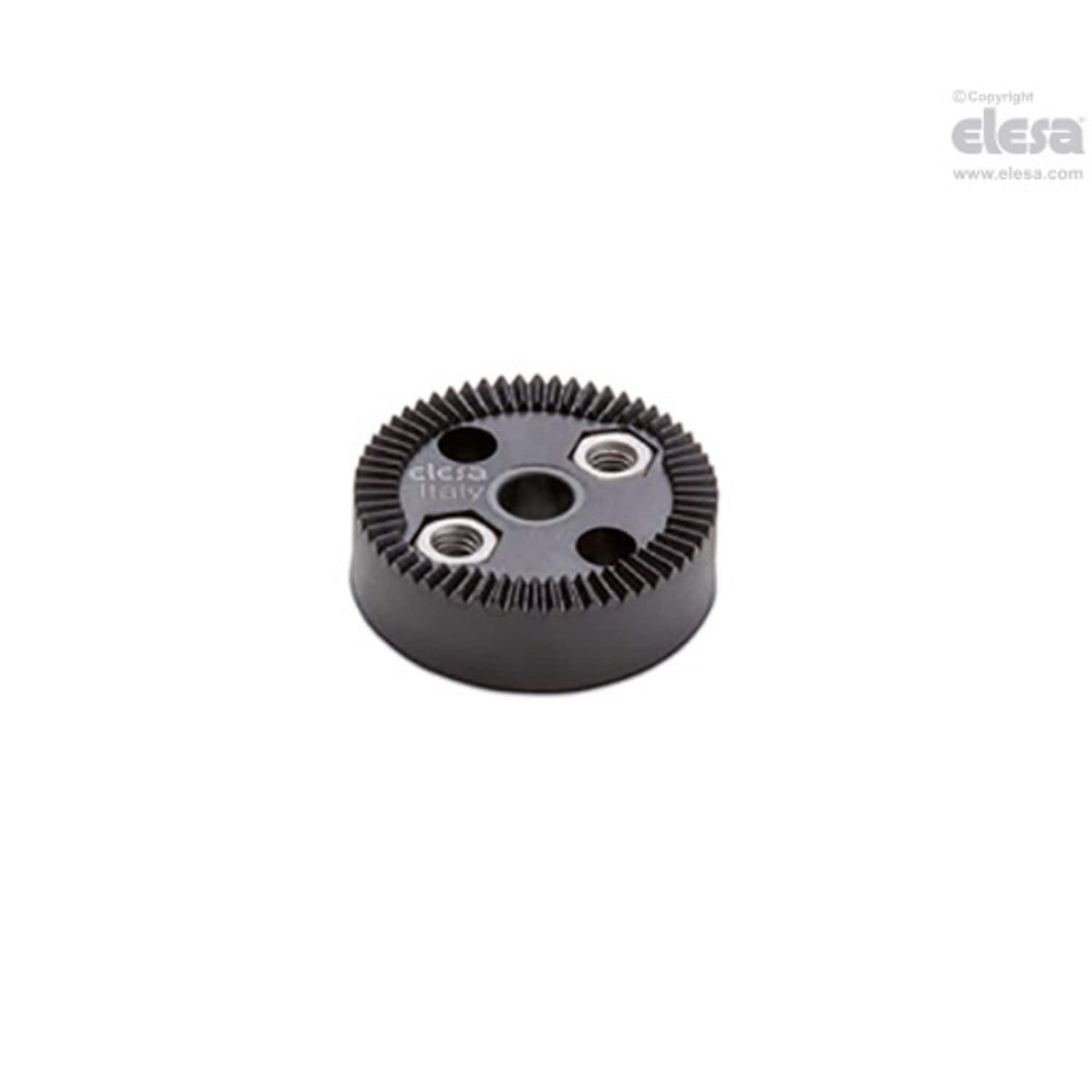

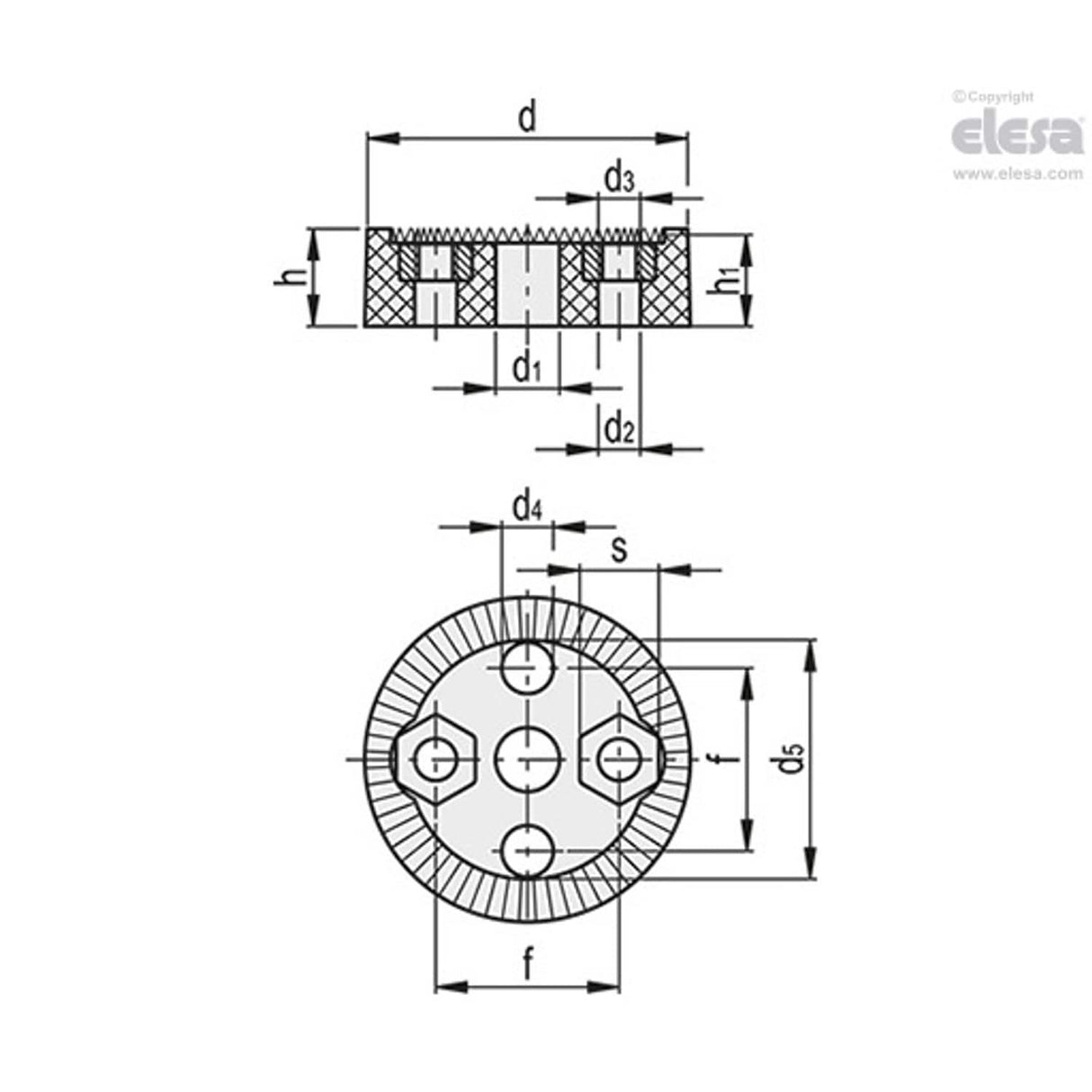

RDB Toothed clamping elements, SUPER-technopolymer, Back mounting, pass-through holes, stainless steel hexagonal nuts For product drawing and dimensions refer to pdf Item data sheet.
| d3 | M5 |
| C# | 120Nm |
| h | 12 |
| s | 8 |
| d5 | 30 |
| d4 | 6 |
| w min | 1.3 |
| f | 23 |
| Weight | 18g |
| h1 | 11.4 |
| d | 40 |
| d1 | 8.3 |
| MFR Part No. | RDB.40-60-B |
| d2 | 5 |
| h3 | 22.8 |
