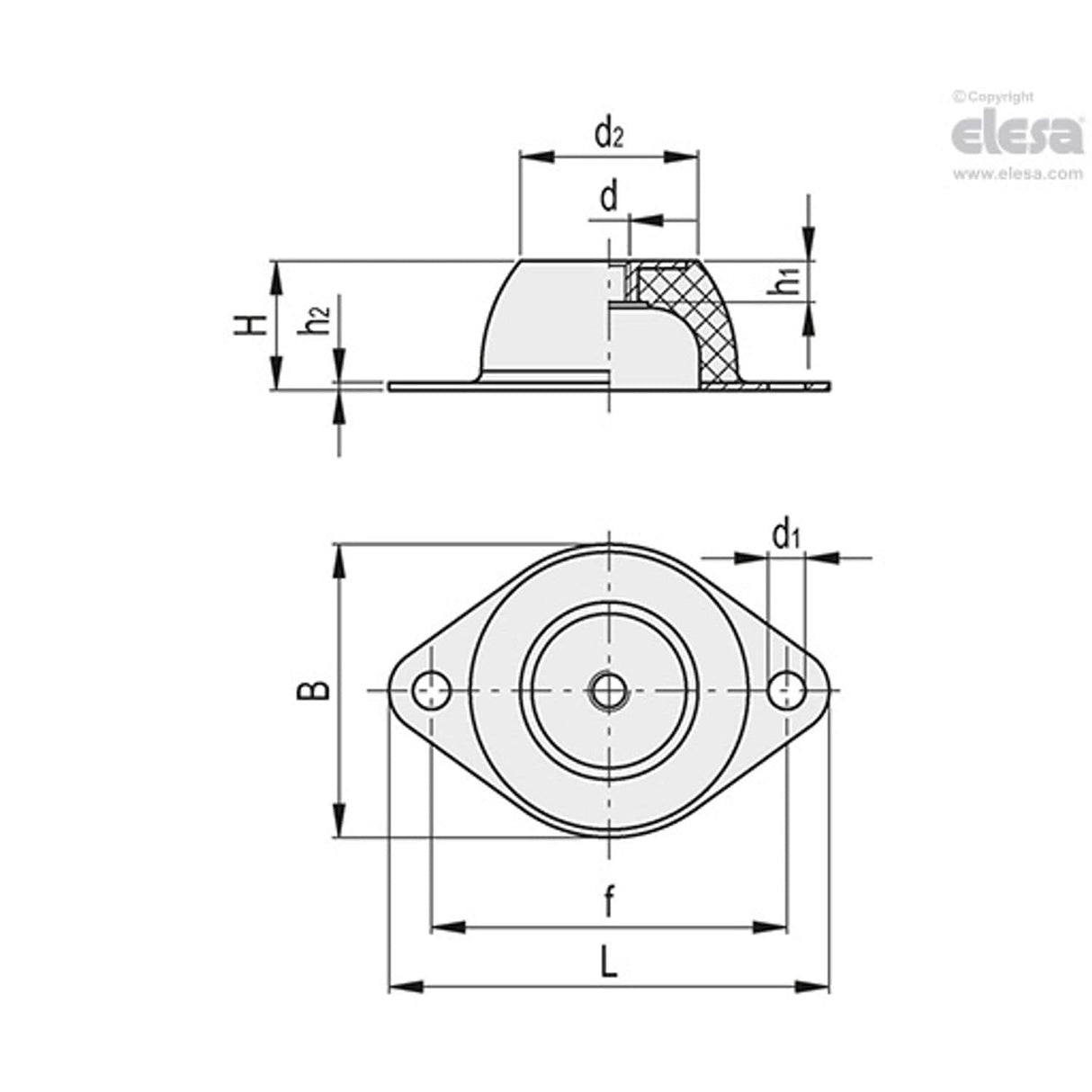

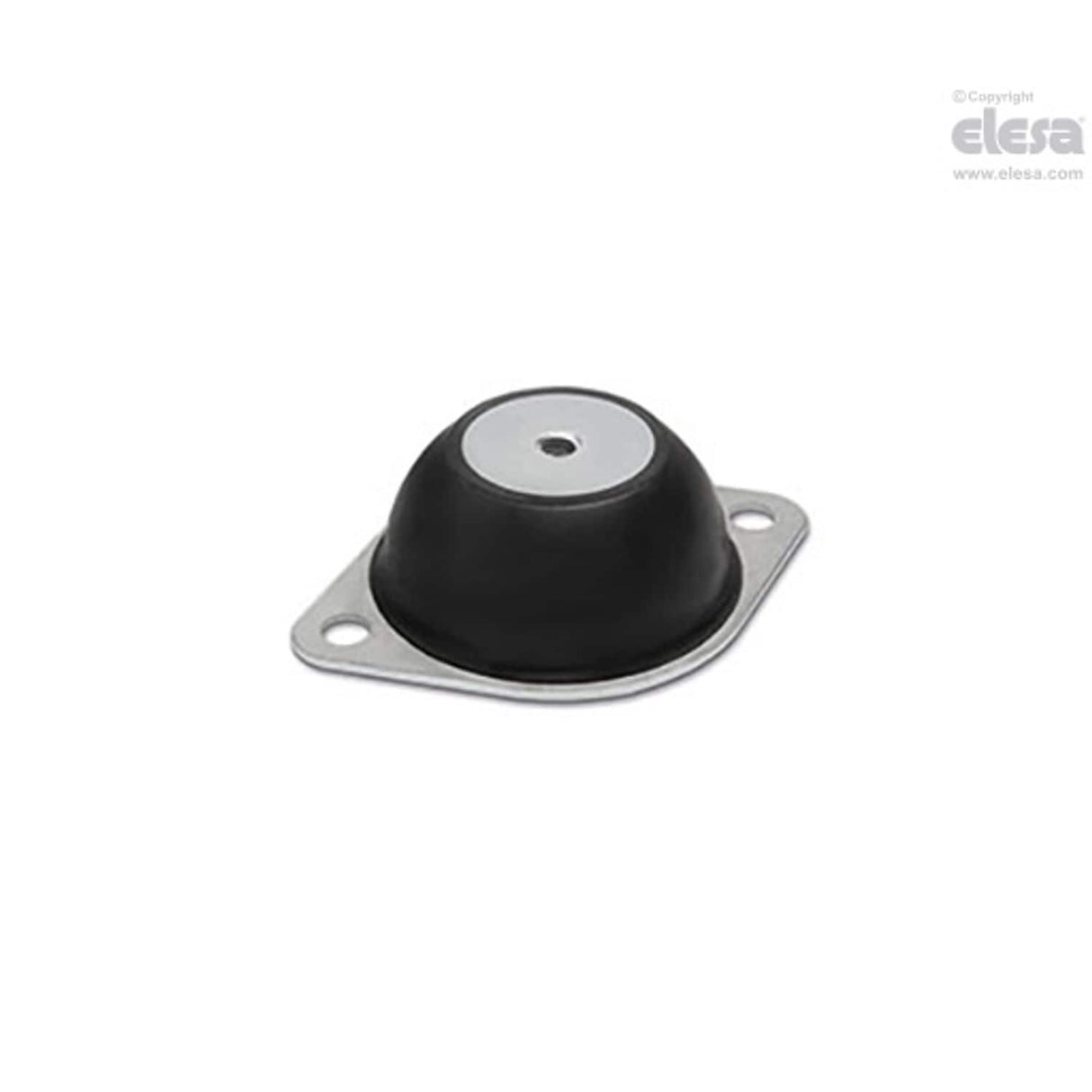

DVE Anti-vibration mounts with flange, Rubber and steel or rubber and stainless steel, Oval mounting flange For product drawing and dimensions refer to pdf Item data sheet.
| d2 | 45 |
| h2 | 2 |
| h1 | 11 |
| MFR Part No. | DVE-45-M10-A-40 |
| f | 92 |
| d | M10 |
| H | 35 |
| L | 114 |
| Max. Deflection | 8.75mm |
| B | 76 |
| d1 | 10 |
| Max Load | 643N |
