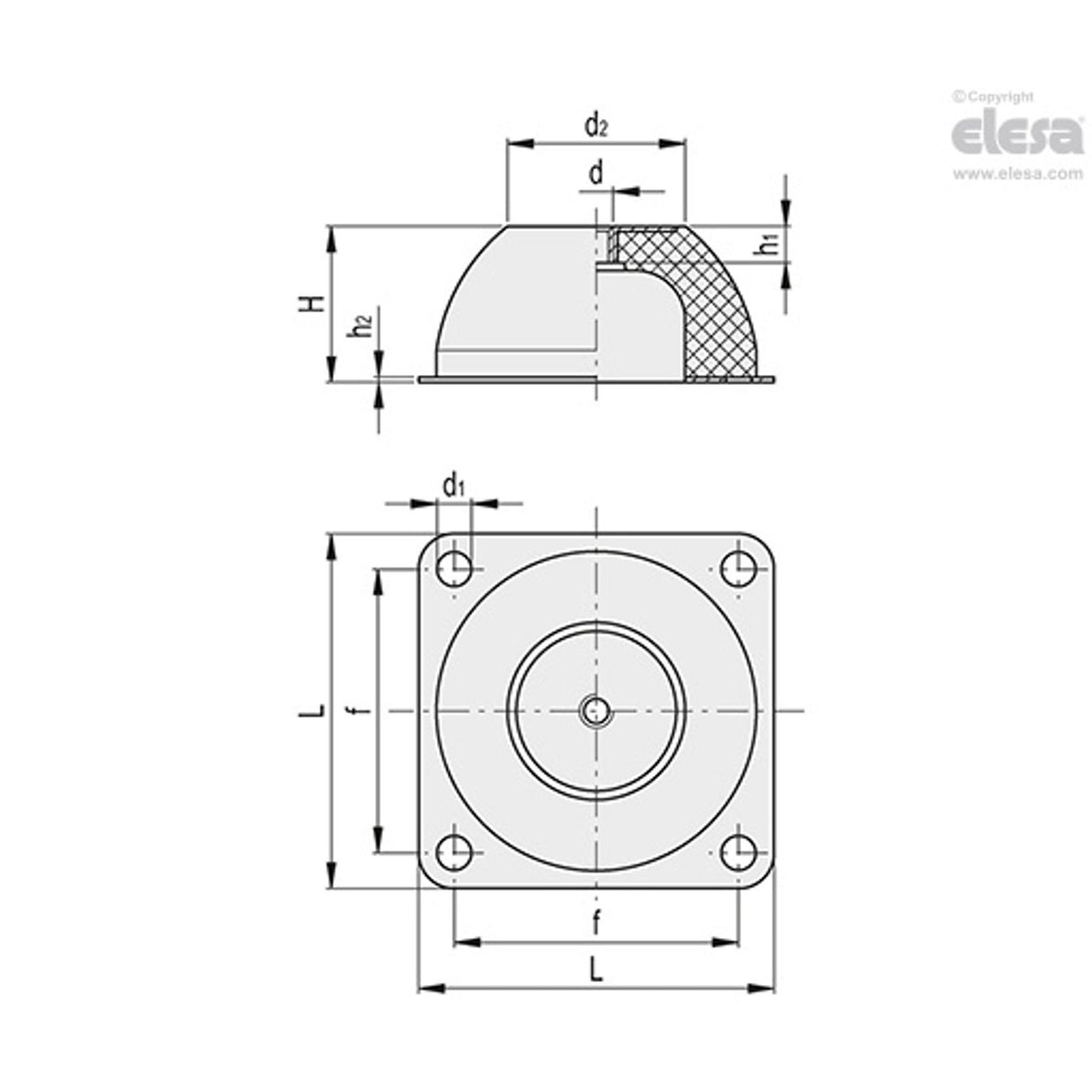

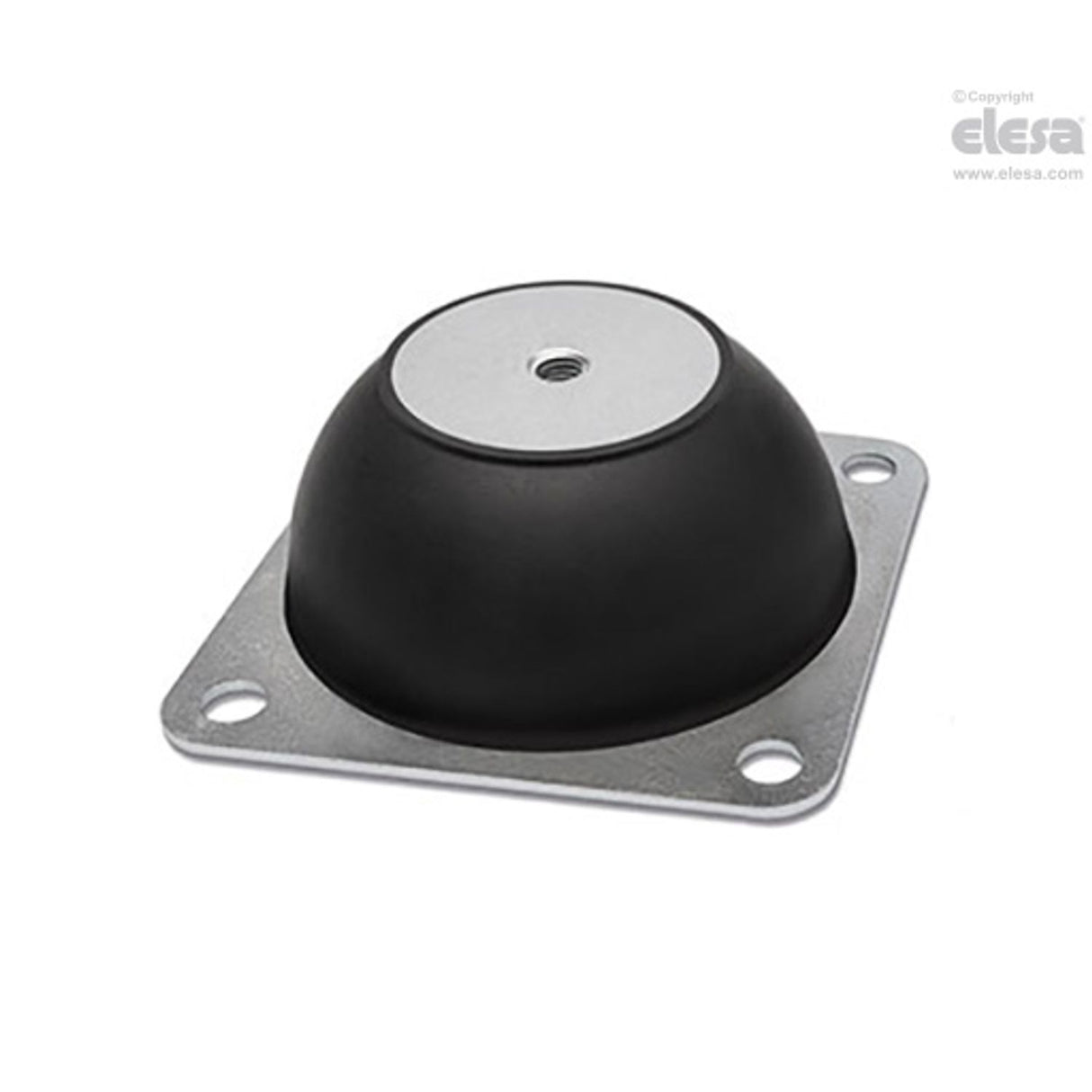

DVE Anti-vibration mounts with flange, Rubber and steel or rubber and stainless steel, Square mounting flange For product drawing and dimensions refer to pdf Item data sheet.
| Max. Deflection | 40mm |
| Max Load | 10528N |
| d | M24 |
| f | 250 |
| MFR Part No. | DVE-186-M24-B-40 |
| h1 | 40 |
| d1 | 18 |
| H | 160 |
| L | 310 |
| d2 | 186 |
| h2 | 4 |
