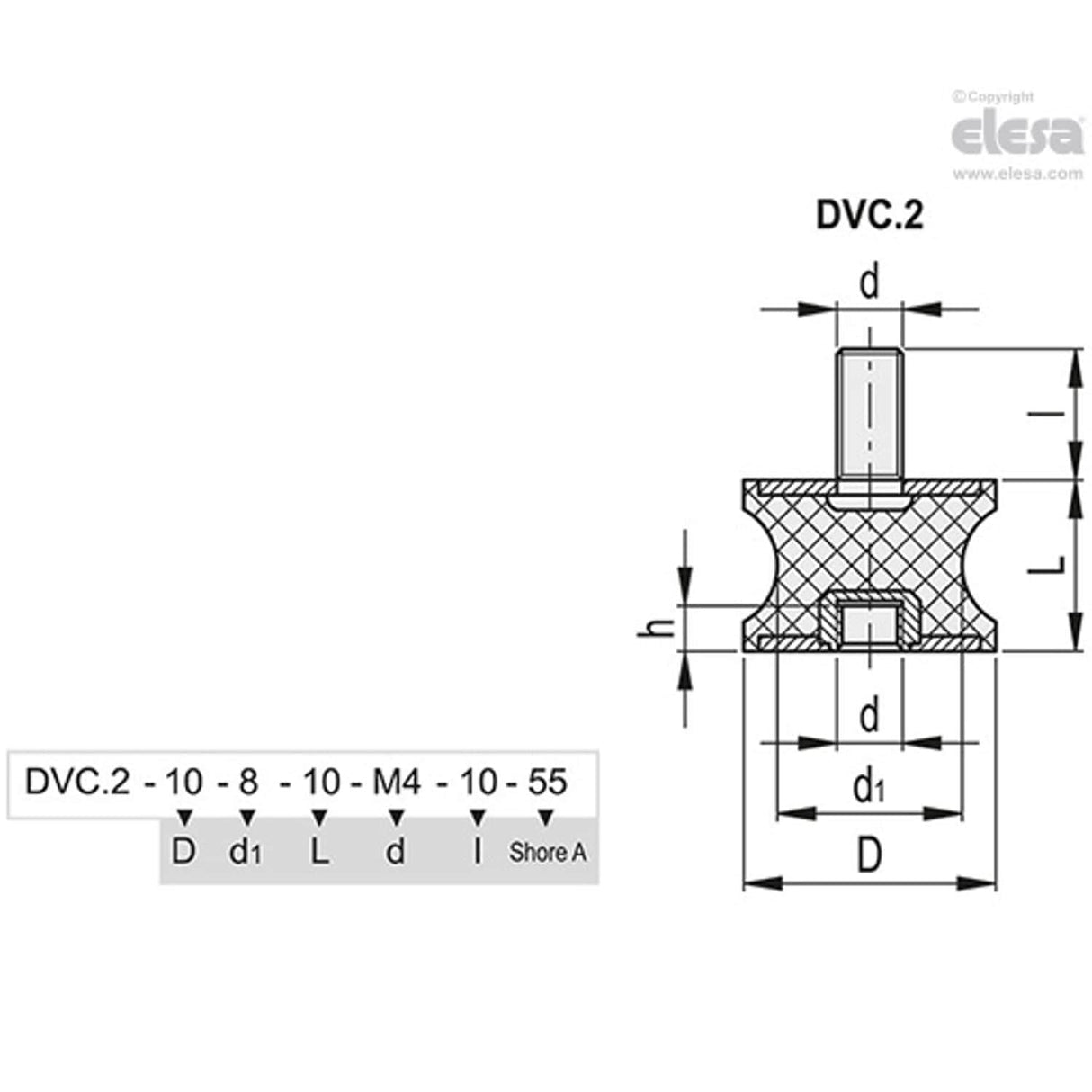

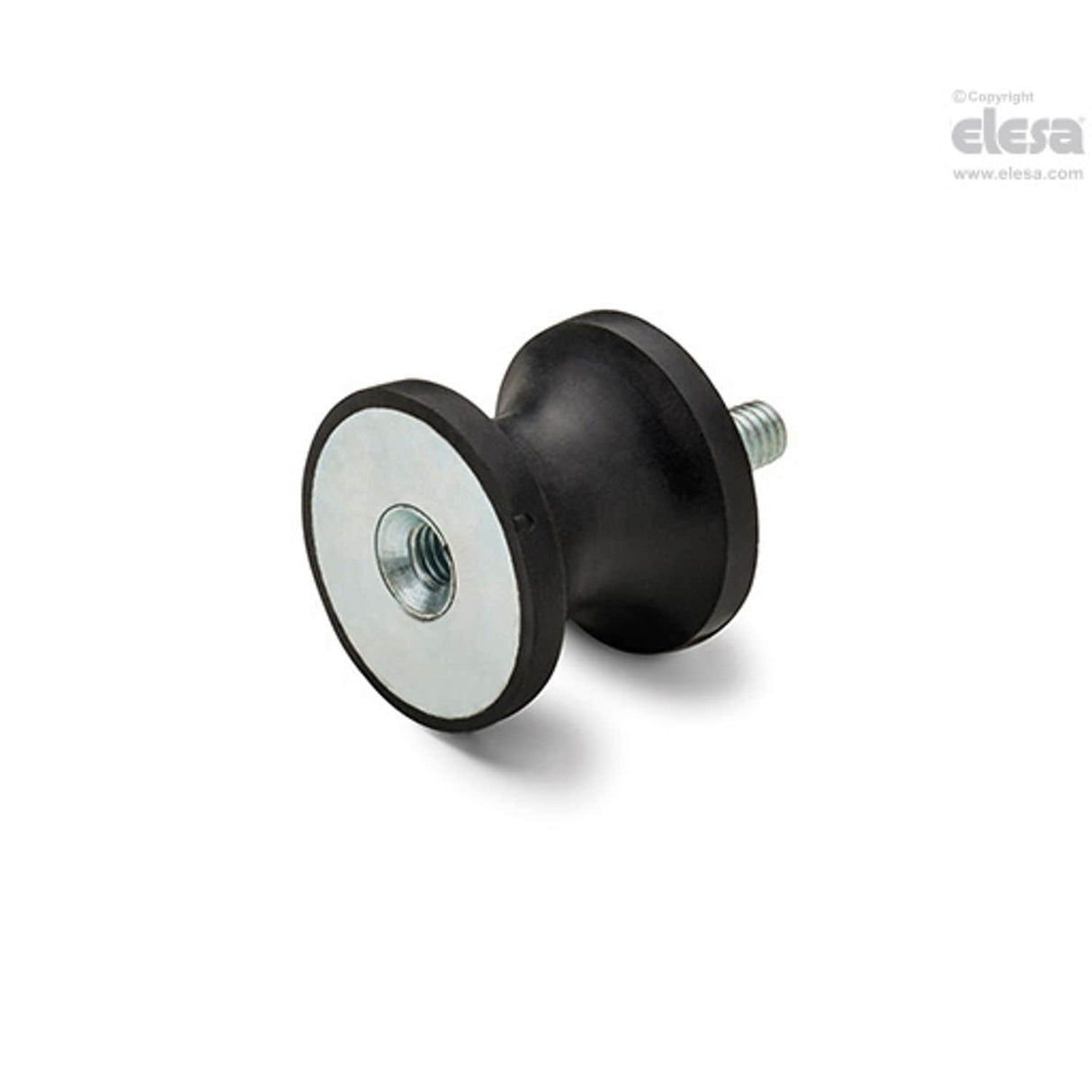

DVC.1 - DVC.2 - DVC.3 Rubber buffers, Rubber and steel or stainless steel, Threaded hole and threaded stud For product drawing and dimensions refer to pdf Item data sheet.
| l | 20 |
| D | 35 |
| d | M8 |
| Max Load | 1355N |
| h | 8 |
| Max. Deflection | 8.5mm |
| MFR Part No. | DVC.2-35-25-34-M8-20-40 |
| L | 34 |
| d1 | 25 |
| Diameter | 35mm |
