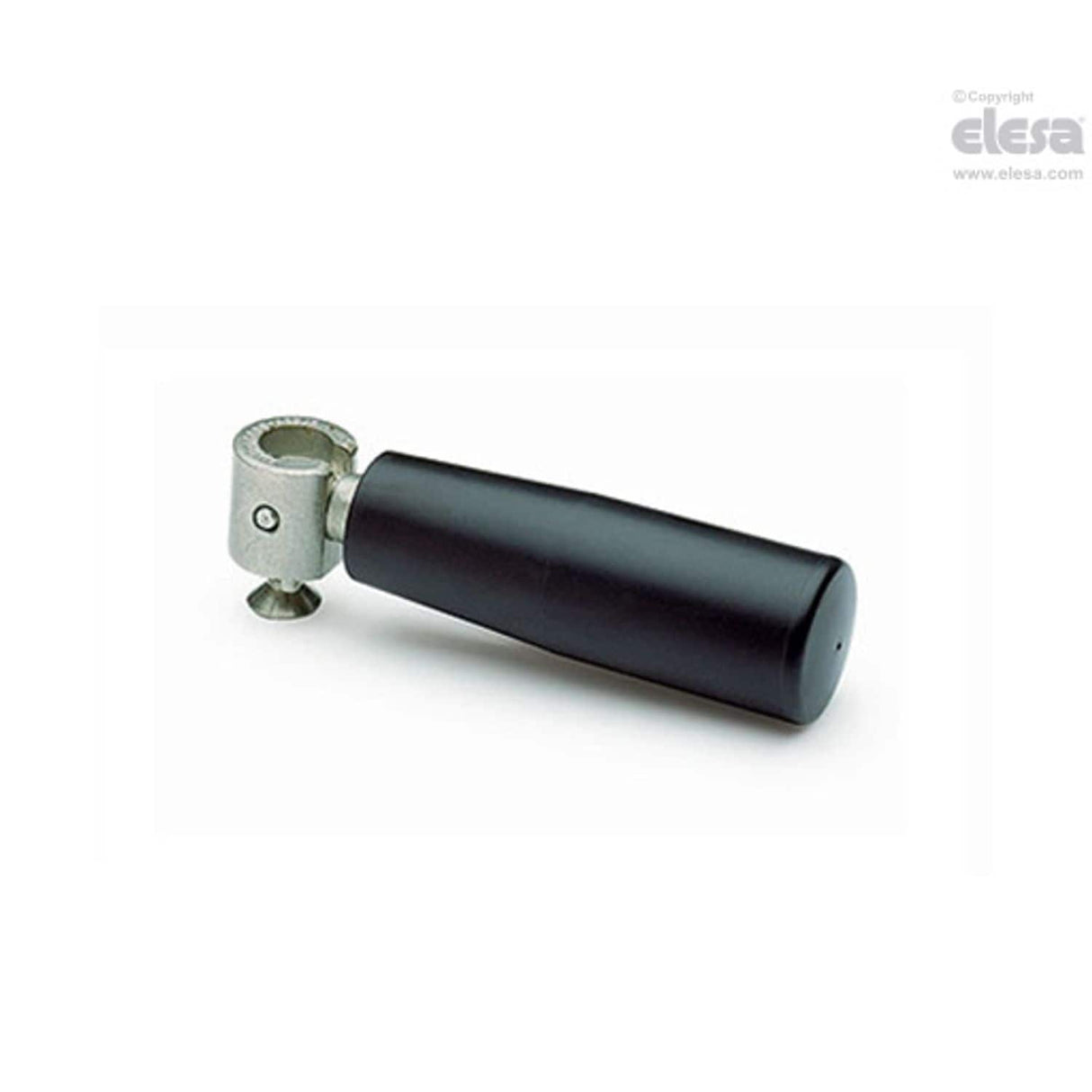

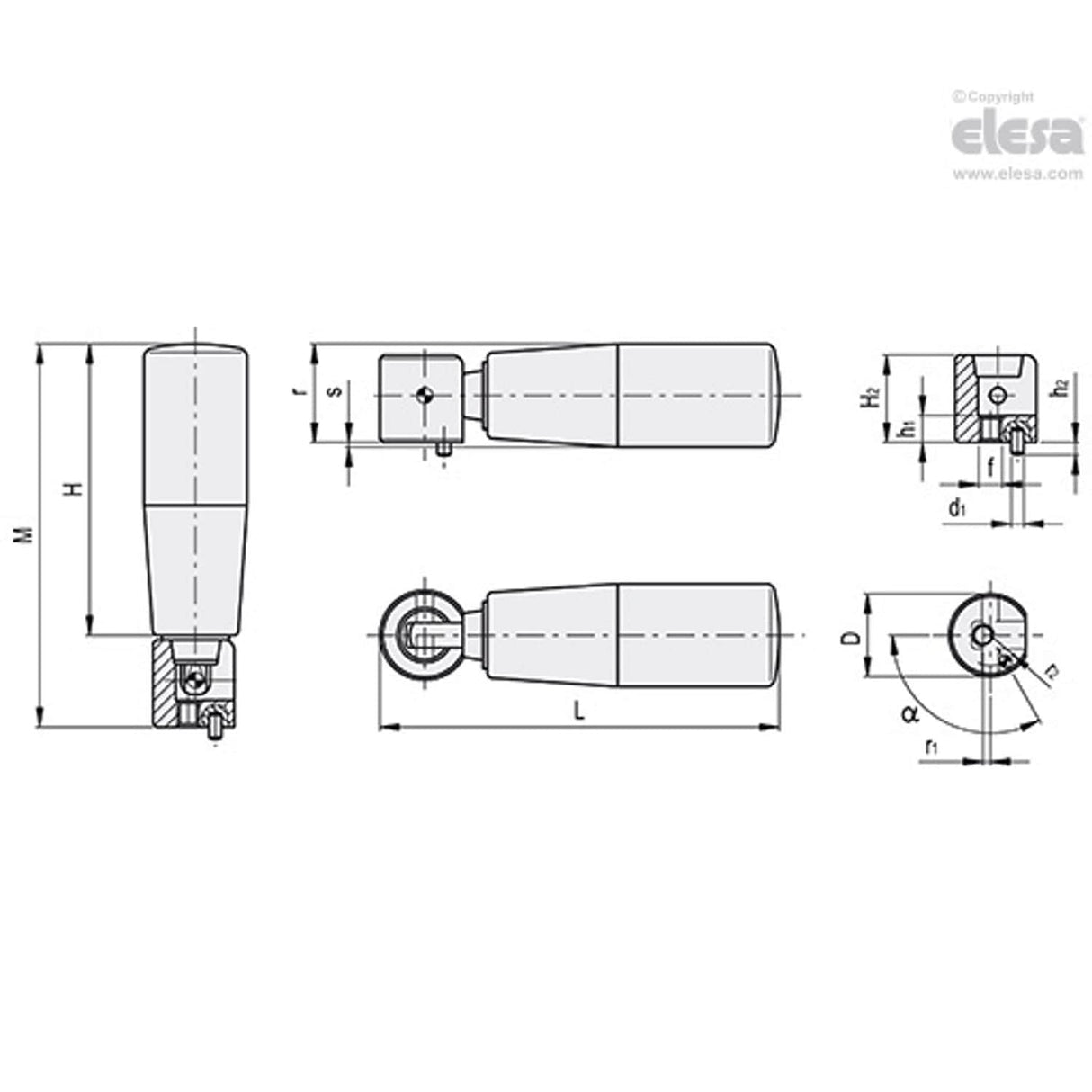

IR.780 Fold-away handles, Technopolymer, Stainless steel pin and support For product drawing and dimensions refer to pdf Item data sheet.
| r | 23 |
| s | 2 |
| H2 | 19.5 |
| MFR Part No. | IR.780/65-SST-S.D.20 |
| H | 65 |
| f | M6 |
| d1 | 3 |
| Diameter | 20mm |
| M | 85.5 |
| h1 | 6 |
| r2 | 7 |
| Weight | 43g |
| h2 -0.2 | 3 |
| r1 | 0.6 |
| L | 89.5 |
| D | 20 |
