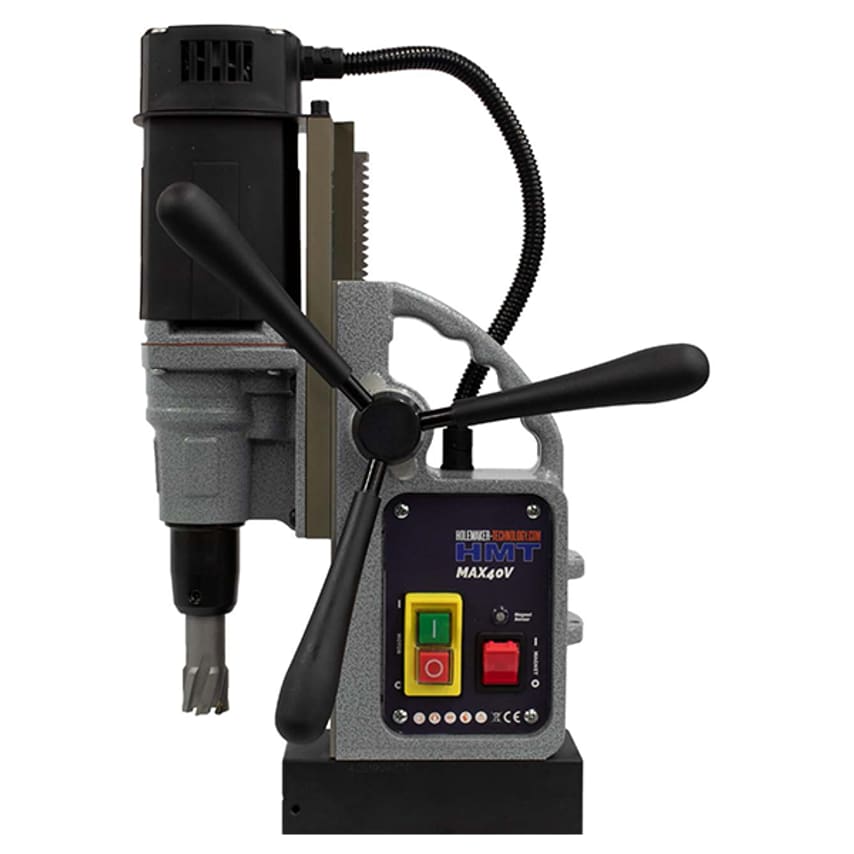

The MAX40V offers a 145mm stroke and comfortably accommodates cutters up to 110mm for deep broaching. It also accepts the VersaDrive Rapid-Lock Weldon Adapter with VersaDrive tooling, opening up 1,000s of time saving solutions from the whole VersaDrive system. Each machine comes in a plastic case with Hex keys, safety strap and removable coolant system.
| Maximum Height | 440mm |
| Coolant System | Gavoty Oil Fed |
| Width | 180mm |
| Length | 264mm |
| Weight | 10.5kg |
| Pack Quantity | 1 |
| Cutting Size Range | 12 to 40mm TCT |
| Maximum Cutting Length | 110mm |
| Motor Power | 1150W |
| Spindle | 19.05mm |
| Minimum Height | 360mm |
| Maximum Cutter Capacity | 110mm TCT |
| No Load Speed | 600rpm |
| Stroke Length | 145mm |
| Magnetic Adhesion | 1500kg |
| Twist Drill Capacity | 16mm |
| Reaming | 12mm |
| Stroke | 145mm |
