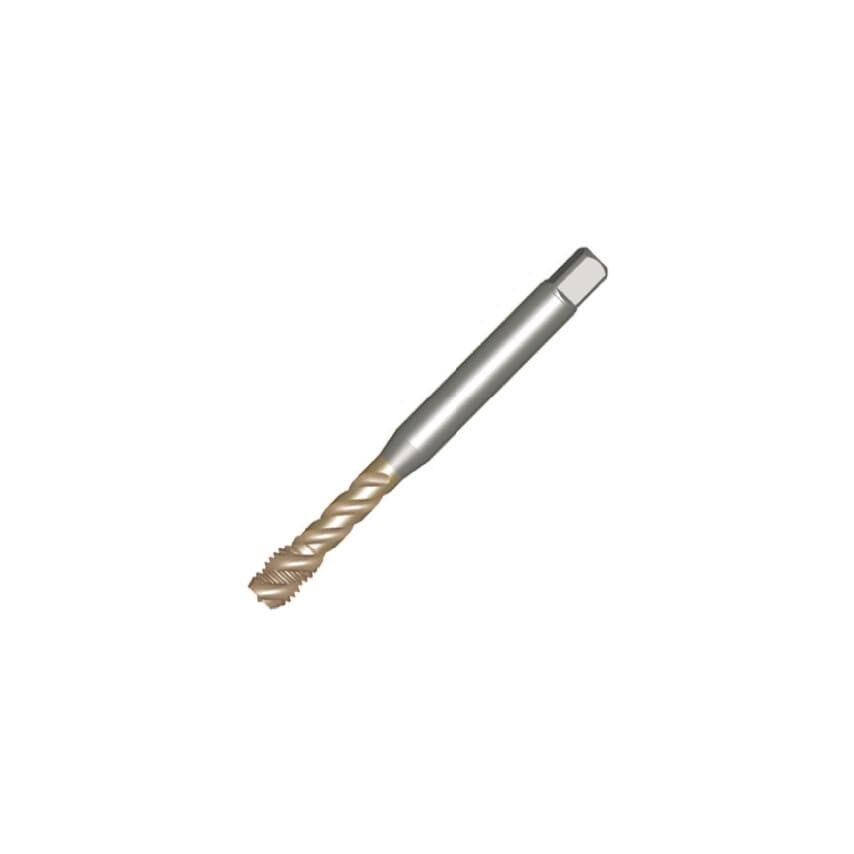

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Blind Hole Function Property | Yes |
| Thread Diameter Size | UNF 5/8-18 |
| Thread Tolerance Class | 2B |
| Grade | C110 |
| MFR Part No. | 26539621 |
| Coating Type | AlCrN |
| Basic Standard Group | DIN 2184-1 |
| Through Hole Function Property | Yes |
| Coolant Exit Style | 0 |
| Functional Length | 110mm |
| CoroPak | 14.1 |
| Unit Measured | Metric |
| Coolant Entry Style | Without Coolant |
| Threads Per Inch | 18 |
| Usable Length | 67.75mm |
| Coating Process Type | PVD |
| Connection Diameter | 32mm |
