£0.36

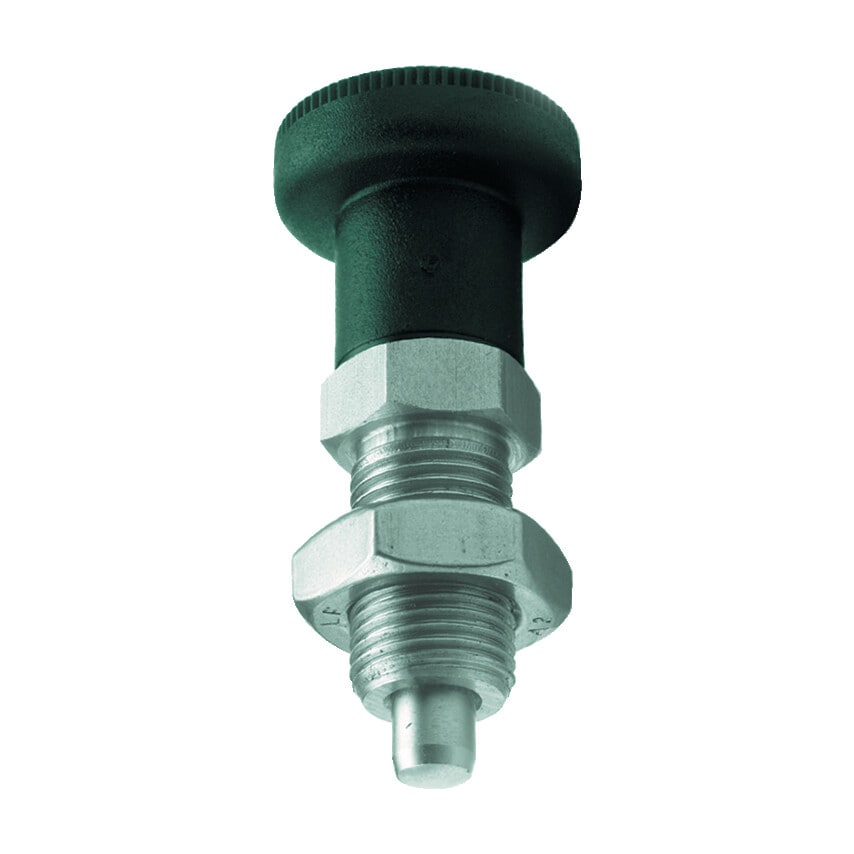

Type AK-NI stainless steel indexing plungers with lock knob and lifting knob.
Features:
-AISI 303 stainless steel construction
-Chemically nickel plated plunger pin
-Plastic (Polyamide PA) non removable, black matt knob

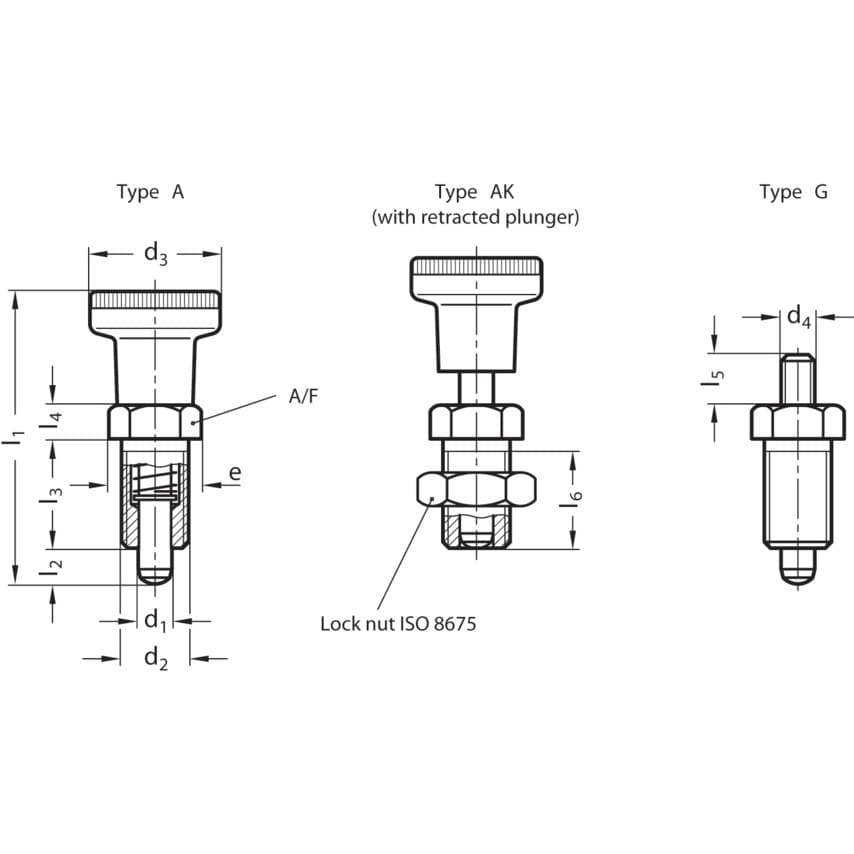

| l6 min | 17mm |
| L3 | 20mm |
| l5 | 10mm |
| L4 | 6mm |
| l2 min | 6mm |
| Product Type | Indexing Plunger |
| d3 | 25mm |
| d4 | M6mm |
| A/F | 14mm |
| D1 | 6mm |
| Material | Stainless Steel |
| MFR Part No. | GN617-6-AK-NI |
| l1 | 54.0mm |
| Type | AK-NI Stainless Steel |
| E | 16.2mm |
| D2 | M12 x 1.5mm |
