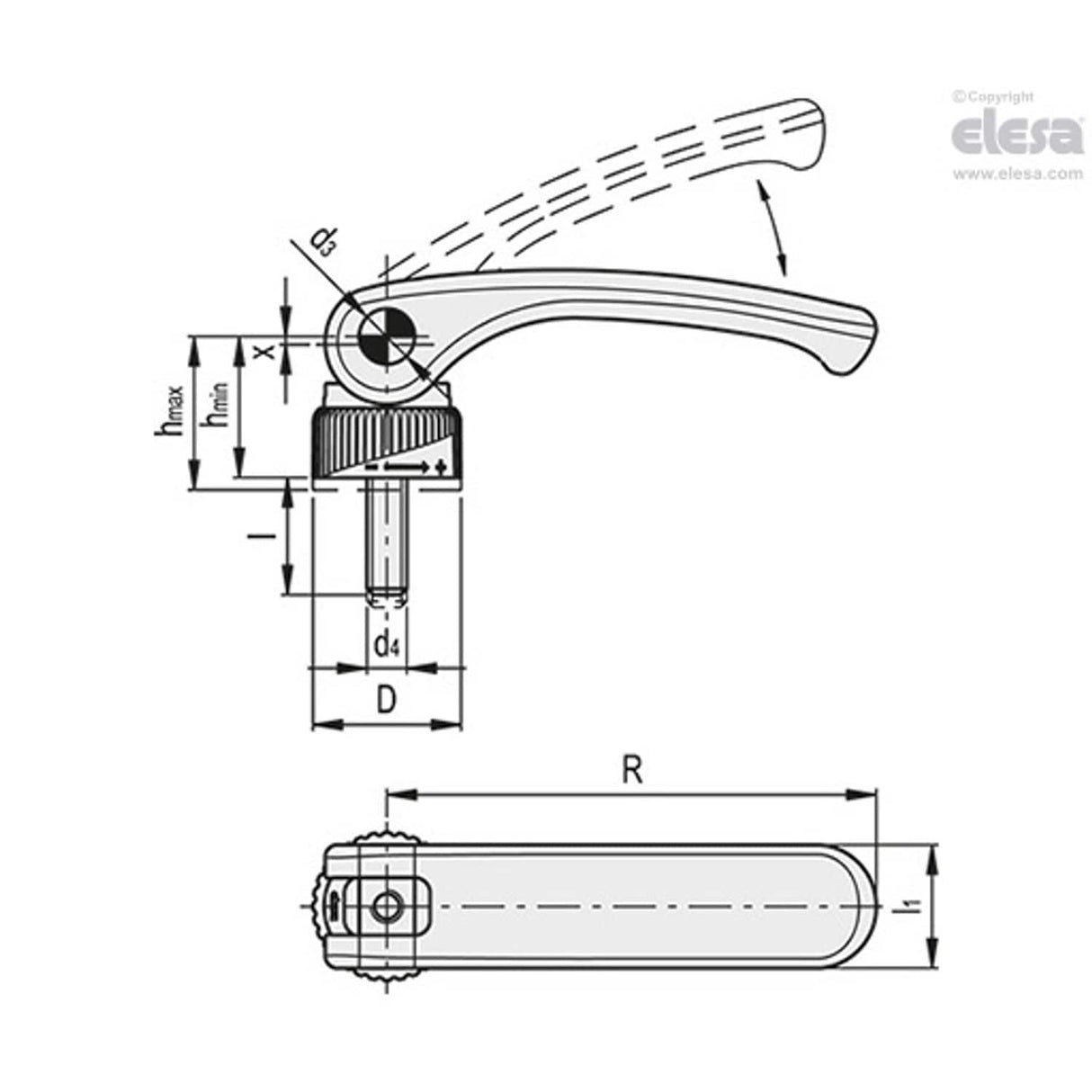

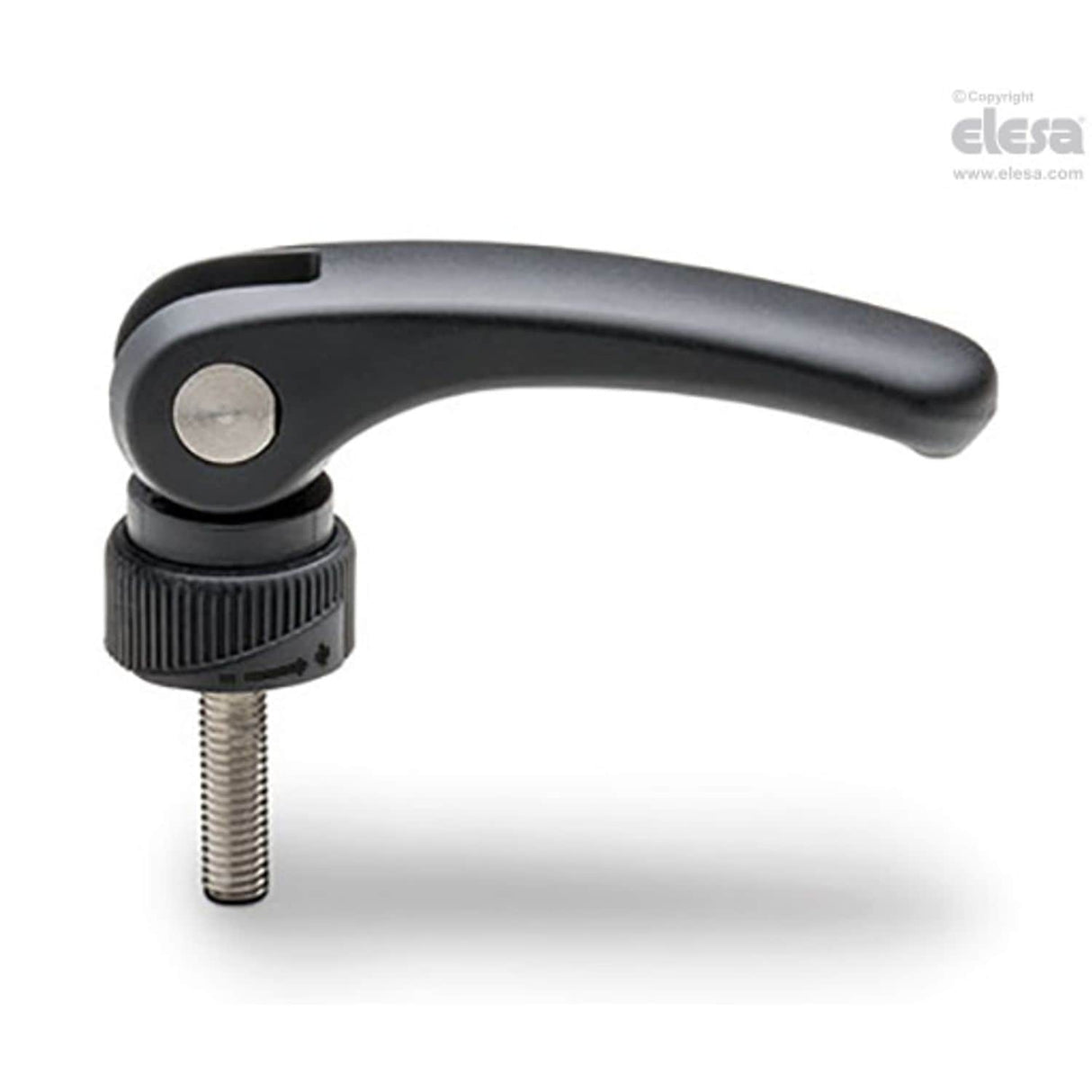

LAC. Cam levers, Technopolymer, With adjustable ring-nut, rotating pin with threaded stud in AISI 303 stainless steel For product drawing and dimensions refer to pdf Item data sheet.
| d4 | M8 |
| l | 40 |
| R | 79 |
| d3 | 11 |
| h Max | 28 |
| MFR Part No. | LAC.80-SST-p-M8x40-R |
| D | 25 |
| h Min | 26.5 |
| Diameter | 25mm |
| x | 1 |
| l1 | 20 |
