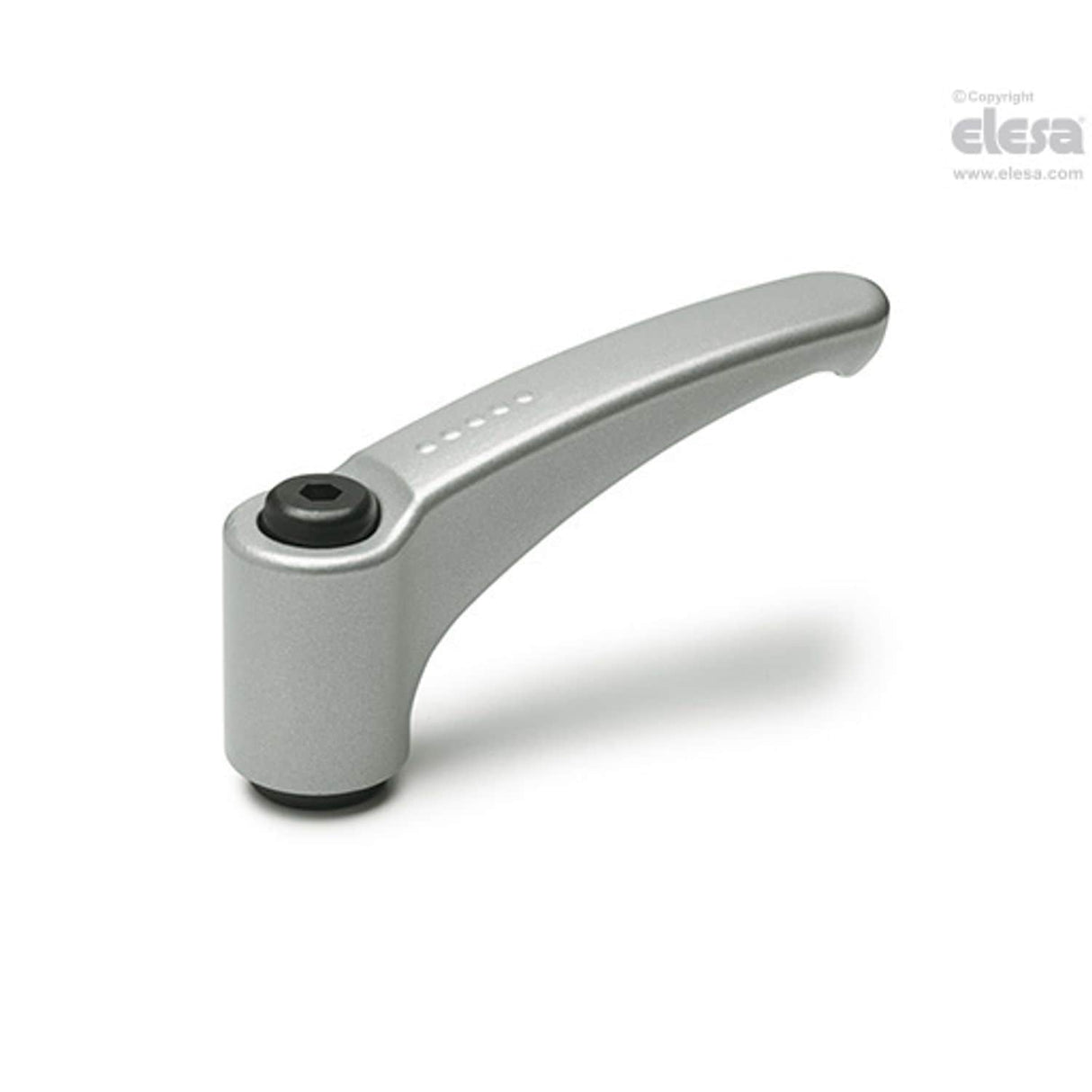

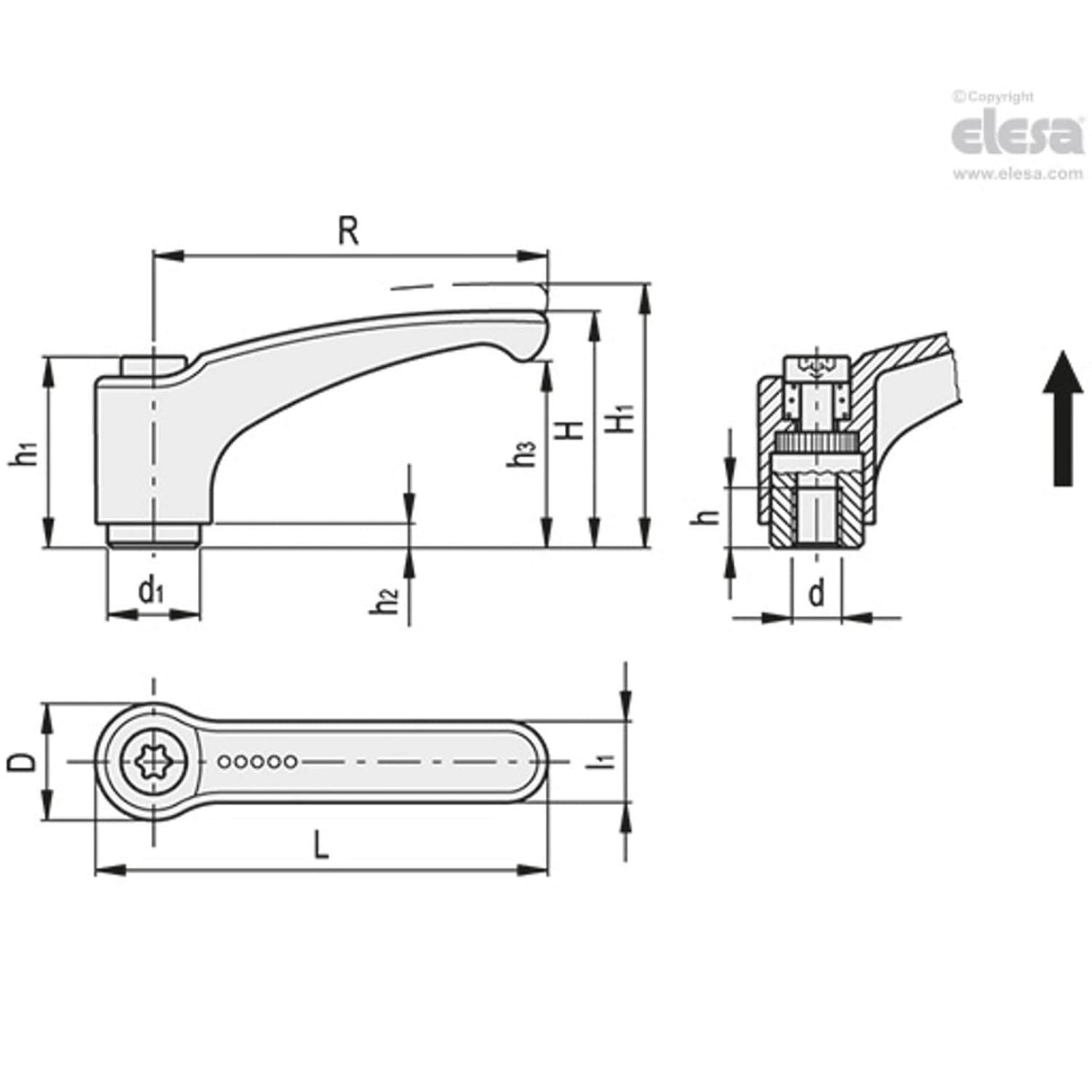

ERM. Adjustable handles, Zinc alloy, steel or stainless steel clamping element, Black-oxide steel clamping element, threaded hole For product drawing and dimensions refer to pdf Item data sheet.
| D | 14.5 |
| d | M6 |
| H1 | 33 |
| H | 30 |
| Number of Teeth | 18 |
| h2 | 3.5 |
| Diameter | 14.5mm |
| h | 8 |
| MFR Part No. | ERM.44 A-M6-C6 |
| h3 | 20.5 |
| l1 | 11 |
| Weight | 37g |
| R | 44 |
| d1 | 10 |
| L | 52 |
| Colour | C6 - RAL 3000 |
| h1 | 24.5 |
