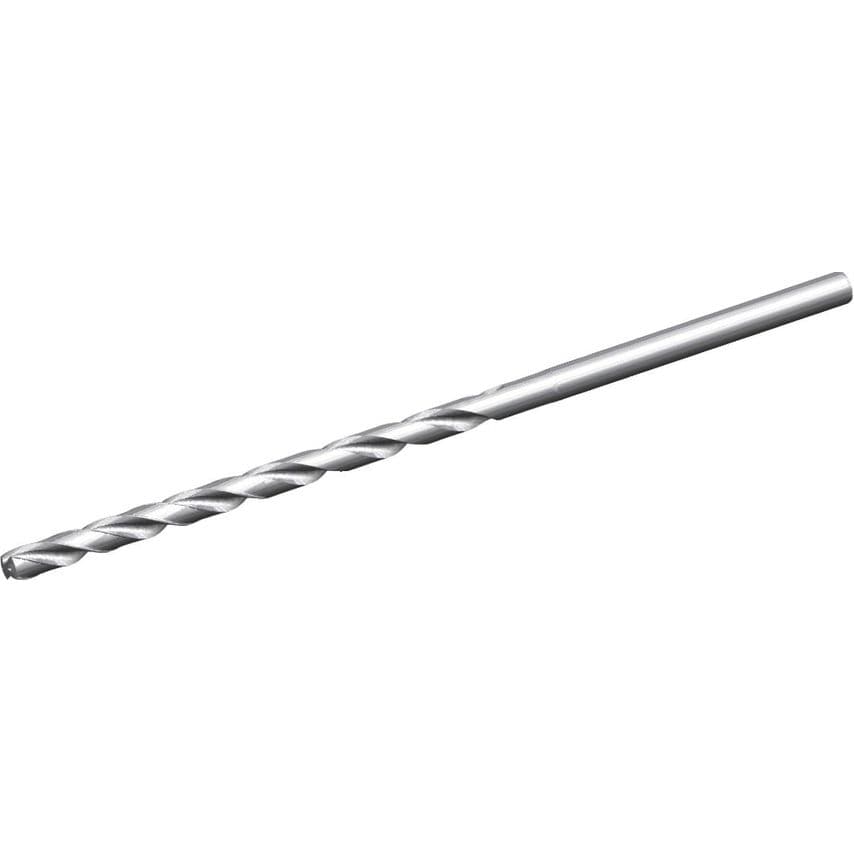

Beyond SC Deep-Hole Drills Multiple Materials Through CoolantHigh-Performance Solid Carbide Drills
| Functional Length | 179.6200mm |
| Adapter Type | Cylindrical |
| Primary Material | Non-Ferrous Materials |
| Hand Preference | Right |
| MFR Part No. | 3867762 |
| Drill Diameter | 7.5000mm |
| Shank Length | 40.0000mm |
| Coolant Delivery | Off-center Axial Coolant |
| Coolant Supplied | Yes |
| Coolant Diameter | 0.9900mm (0.0441in) |
| Drill Diameter Tolerance | -0.015000 to 0.000000mm |
| Unit Measured | Metric |
| Flute Length | 136mm | 136.0000mm |
| Adapter / Shank / Bore Diameter | 8.0000mm |
| Clamping Length | 36mm |
| Number of Flutes | 2 |
| Material | Carbide |
| Adapter Style | Straight-Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Overall Length | 181mm | 181.0000mm |
| Finish/Coating | Uncoated |
| Helix Angle | 28.426 |
| Drill Point | 1.38mm |
| Drill Depth | 119mm | 119.0000mm |
| Flute Construction | Helical Flute |
| Assembly Length | 152.62mm |
