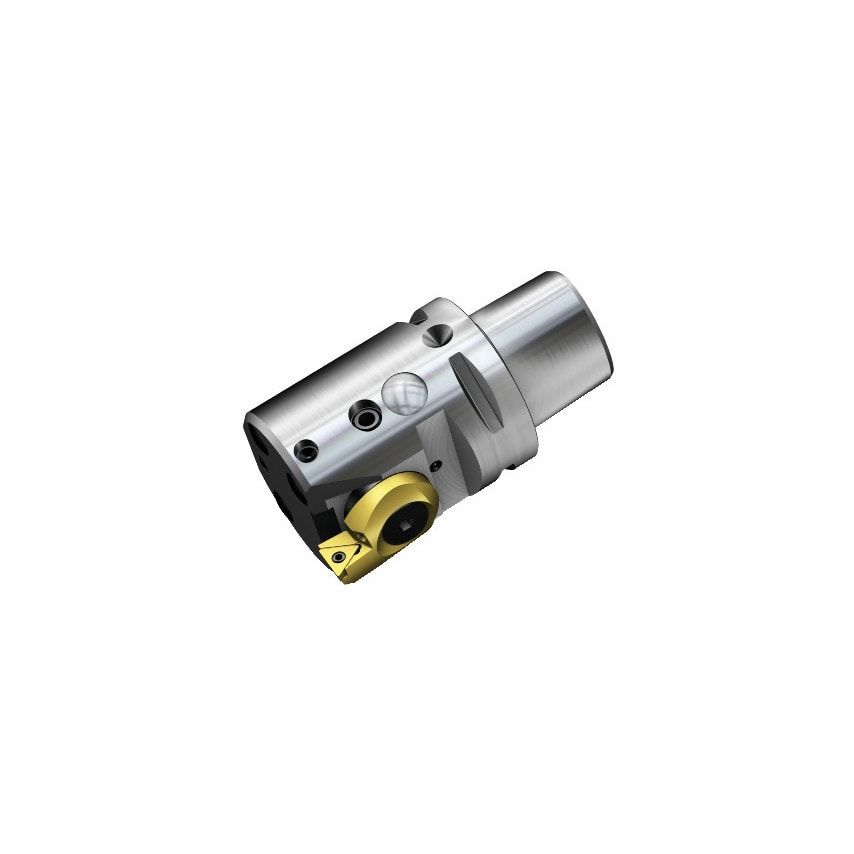

Product Range: CoroBore 826Tool Type: Fine boring toolsFine boring tool with excellent chip controlFeatures & Benefits- Fine boring with click-wise diameter setting in microns- High-precision nozzles for coolant directed to the cutting edge- Hole tolerances from IT6- Rigid interfaces between head and cartridge for stable, vibration-free boring- Coolant through the toolApplication AreaFine boring, Hole tolerance: IT6, Diameter range 361267 mm (1.41749.882 inch)
| Through Hole Function Property | Yes |
| Body Diameter | 1.97in |
| Functional Length | 66mm |
| MFR Part No. | 7323220290666 |
| Body Material | Steel |
| Maximum Cutting Diameter | 70.65mm |
| Minimum Cutting Diameter | 69.35mm |
| Weight | 1.46kg |
| Cutting Diameter | 70mm |
| Connection Diameter | 50mm |
| Tool Cutting Edge Angle | 92\u00b0 |
| Maximum Adjustment Limit | 0.65mm |
| Unit System | Metric |
| CoroPak | 104 |
| Standards Met | ISO26623-1 |
