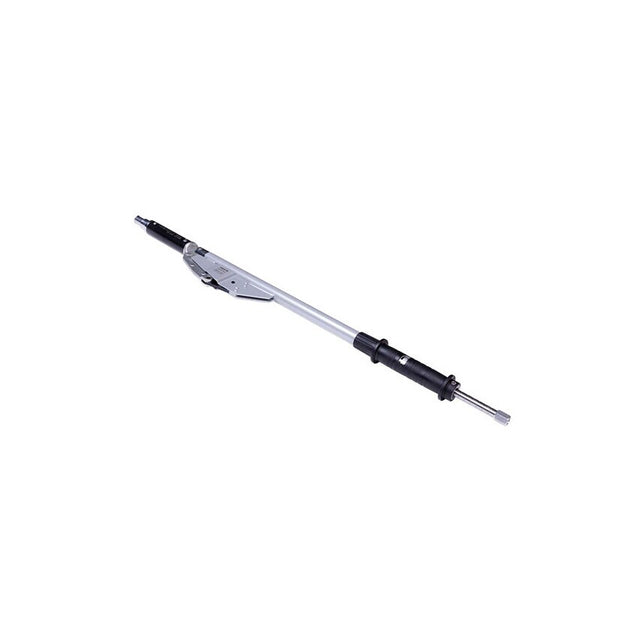

120102 Industrial Torque Wrench 3AR-N 22mm Spigot, 120 - 600Nm

Re-engineered to be more compactable and easier to use. A robust construction that gives accurate results to 4% even in difficult working conditions. Its unique profiled cam and reaction plate gives a much clearer torque signal. Equipped with a comfortable handle that guides the operator's hand to the correct position. Ideal for heavy duty applications. On request 'P' Type wrenches can be set, marked with the setting and certified for production line applications requiring a sealed torque setting. Only if a pre-set torque value has been requested will the tool be supplied with a Declaration of Conformance. Features and Benefits Push-through ratchet allows two direction torqueing Able to be split and packed into two parts for a smaller, easier to transport tool Large break angle greatly reduces the possibility of over-torqueing

Maximum Torque	600 NmNm
Minimum Torque	120 NmNm
MFR Part No.	120102
Accuracy	\u00b14%
Drive Size	22 mmin
Calibration Certificate	Yes
Torque Range	120 to 600Nm
Body Material	Steel
Overall Length	1032mm
Torque Wrench Type	Spigot
Drive Shape	22mm Spigot
