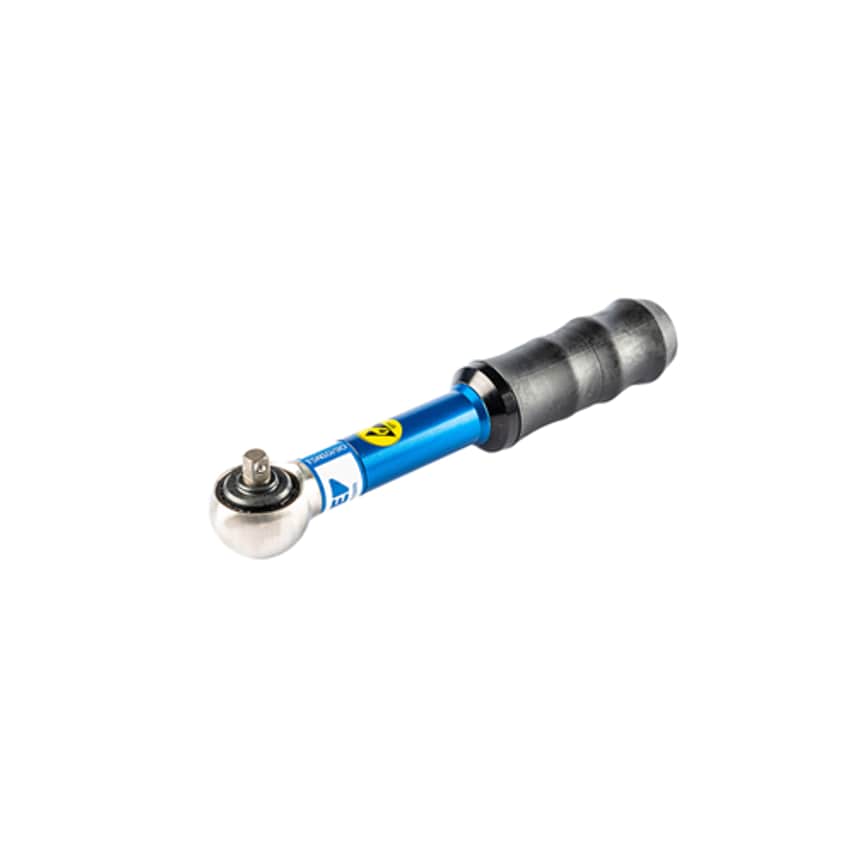

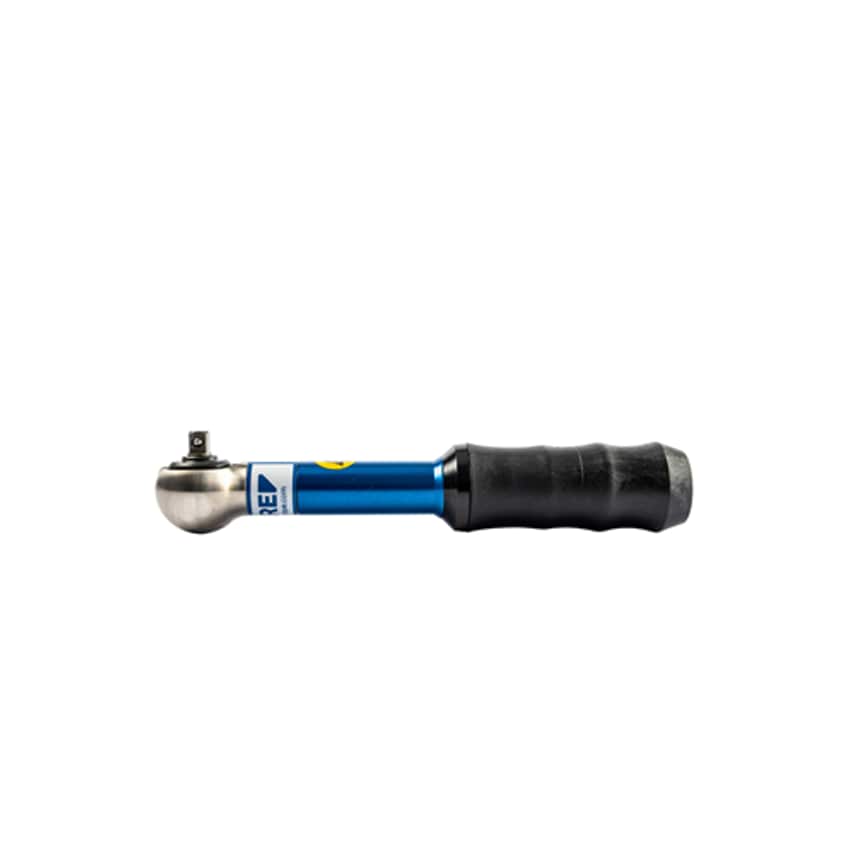

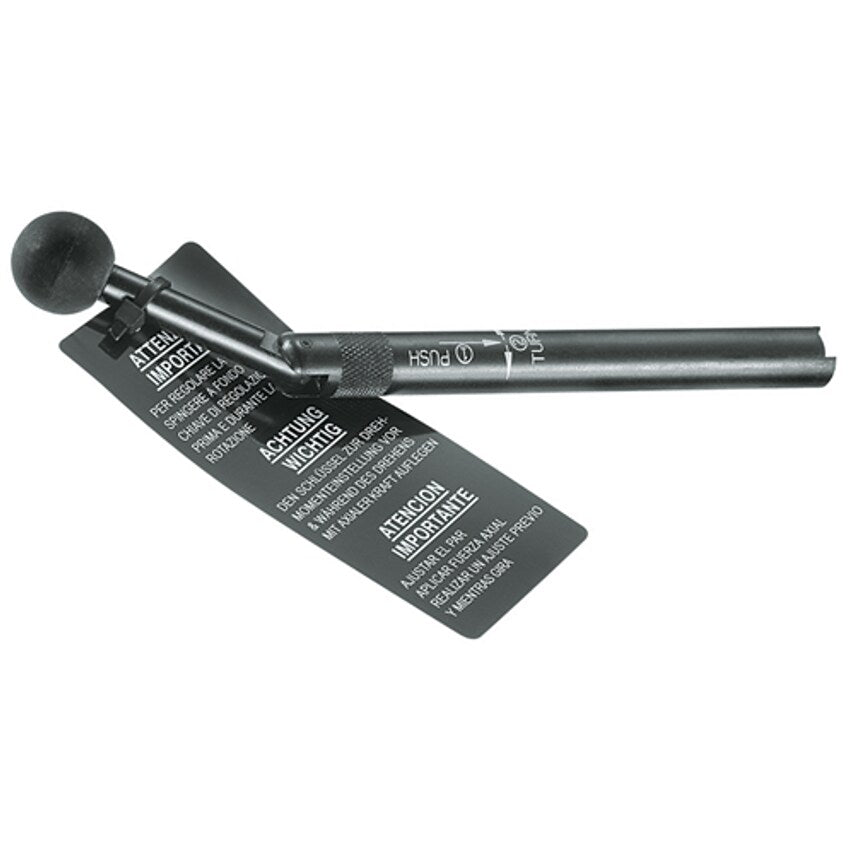

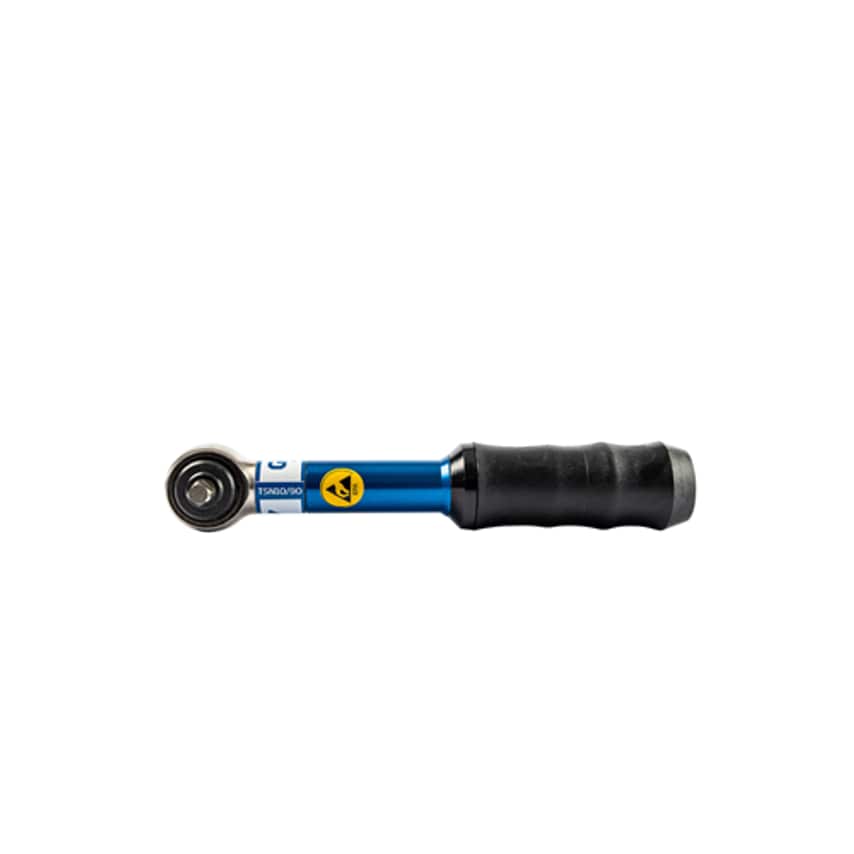

Use: Controlled screw tightening in the range of 1 - 5 N m Serial / production-line Extremely long-term work Features: Pre-set production torque wrench - without scale 1/4", 3/8" or 1/2" square drive with ball locking device With integrated ratchet-function for controlled clockwise tightening Working accuracy: +/- 6 % tolerance of set torque Acc. to DIN EN ISO 6789, traceable to national standards Precision mechanism slips very noticeably and audibly ("click") when the pre-set value is achieved - over-tightening is not possible Automatic resetting to the starting position Lightweight, but robust and corrosion-resistant construction design Very convenient non-slip rubber handgrip The pre-setting can be made at the factory or by the user on suitable torque testers If ordering, please specify the Nm value - if a fixed factory pre-setting is desired (price on request) EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications Scope of delivery: Special adjusting key for changing the pre-set torque value Test certificate acc. to DIN EN ISO 6789 Delivery in sturdy cardboard packaging
| Minimum Torque | 1 N\u00b7mNm |
| Trigger Mechanism | Friction clutch |
| Maximum Torque | 5 N\u00b7mNm |
| Precision | +/- 4 % |
| Product Type | Torque Wrenches |
| Tightening Direction | Right |
| Standards Met | DIN EN ISO 6789-2 |
| Torque Range | 1 - 5Nm |
| Drive Type | Single square ratchet |
| Drive Connector Square (Male) | 6.3mm |
