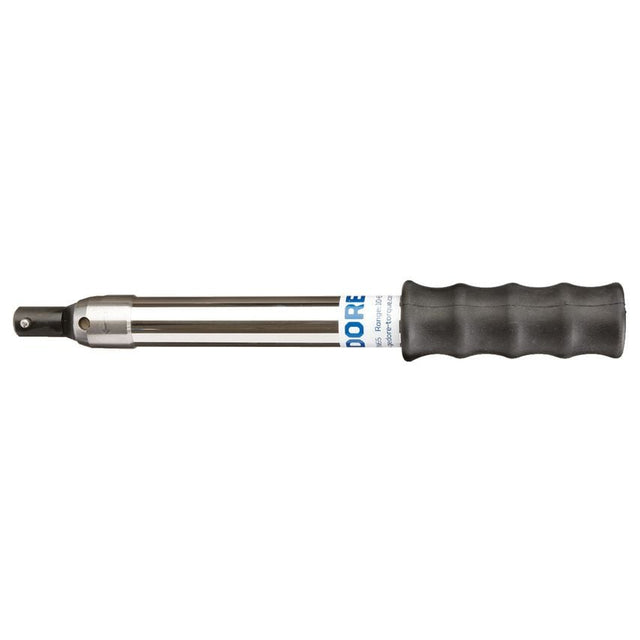

TBN Breaking Torque wrench Z16 5-25 Nm

Use: Controlled screw tightening in the range of 5 - 25 N m Serial / production-line Extremely long-term work Features: Pre-set production torque wrench - without scale With 16 mm spigot-end For bi-directional tightening (the wrench only has to be turned by 180!) Working accuracy: +/- 4 % tolerance of set torque Acc. to DIN EN ISO 6789, traceable to national standards Breaking of the handgrip by 20 when the pre-set torque value is achieved makes over-tightening unlikely Automatic resetting to the starting position Lightweight, but robust and corrosion-resistant construction design Very convenient non-slip rubber handgrip The pre-setting can be made at the factory or by the user on suitable torque testers If ordering, please specify the Nm value - if a fixed factory pre-setting is desired (price on request) Scope of delivery: Torque wrench TBN Breaking Torque wrench Special adjusting key for changing the pre-set torque value Test certificate acc. to DIN EN ISO 6789 Delivery in sturdy cardboard packaging

Drive Type	Drive pin
Product Type	Torque Wrench
Standards Met	DIN EN ISO 6789-2
Precision	+/- 4 %
Material	Tubular Steel Construction
Tightening Direction	Left and right
Trigger Mechanism	Long travel triggering
Maximum Torque	25 N\u00b7mNm
Minimum Torque	5 N\u00b7mNm
Drive Connector Pin	16mm
Length	265mm
