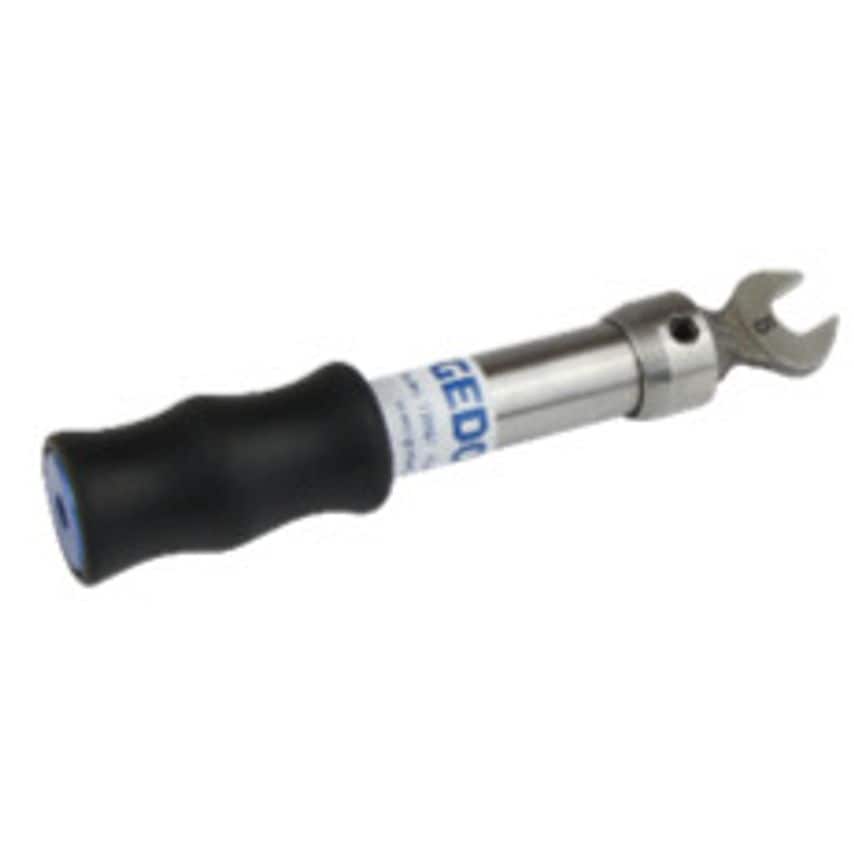

Breaking Torque Wrench 0,4-2 Nm Captive Pin 011100

Use: Controlled screw tightening in the most common range of 0.4 - 2 Nm Serial / production-line Extremely long-term work Features: Pre-set production torque wrench - without scale With captive in-end For bi-directional tightening (the wrench only has to be turned by 180!) Working accuracy: +/- 4 % tolerance of set torque Acc. to DIN EN ISO 6789, traceable to national standards Breaking of the handgrip by 20 when the pre-set torque value is achieved makes over-tightening unlikely Automatic resetting to the starting position Lightweight, but robust and corrosion-resistant construction design Very convenient non-slip rubber handgrip No. TBN 2 G: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications The pre-setting can be made at the factory or by the user on suitable torque testers If ordering, please specify the Nm value - if a fixed factory pre-setting is desired (price on request) Scope of delivery: Torque wrench TBN Breaking Torque wrench Special adjusting key for changing the pre-set torque value Test certificate acc. to DIN EN ISO 6789 Delivery in sturdy cardboard packaging

Length	105mm
Product Type	Torque Wrenches
Trigger Mechanism	Long travel triggering
Maximum Torque	2 N\u00b7mNm
Tightening Direction	Left and right
Minimum Torque	0.4 N\u00b7mNm
Standards Met	DIN EN ISO 6789
Precision	+/- 6 %
