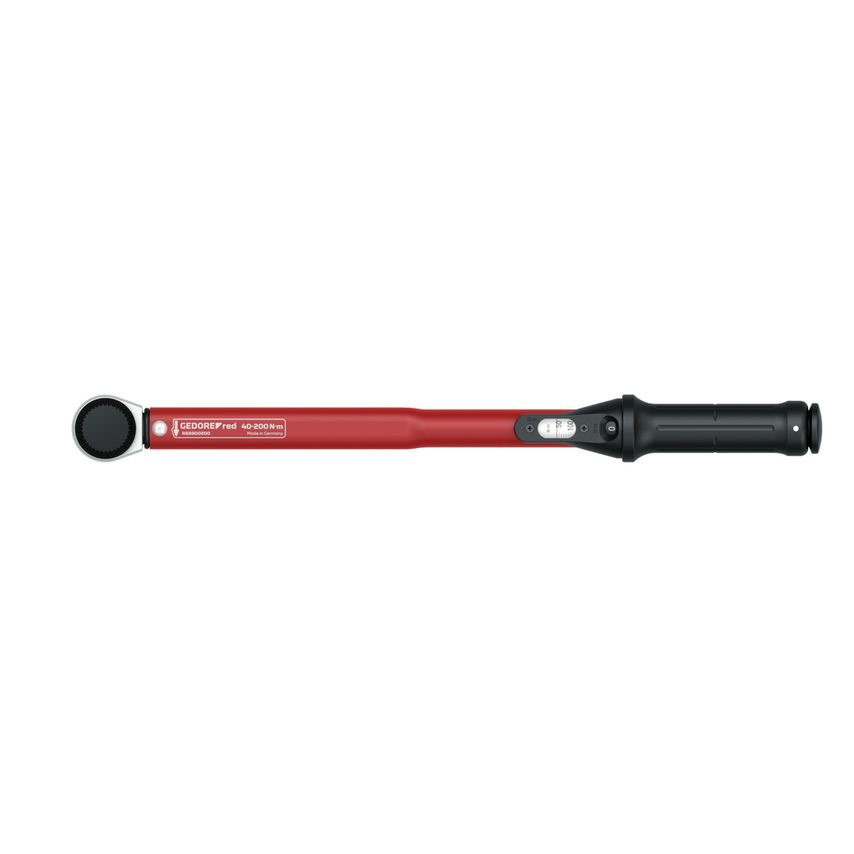

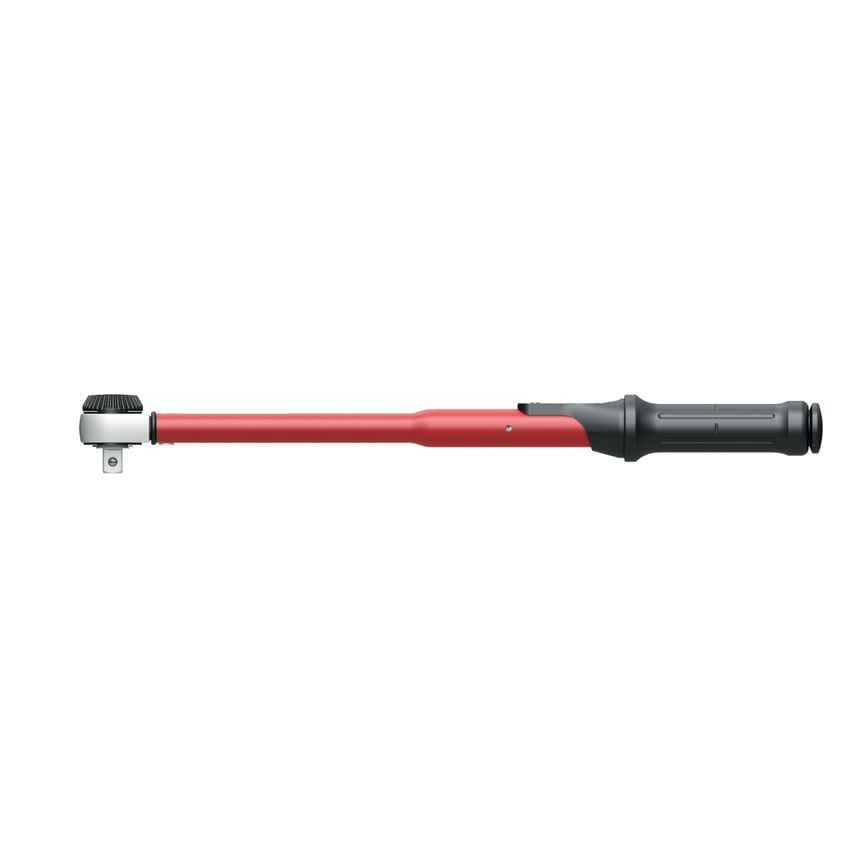

For controlled bi-directional tightening. Repetition-accurate and precision-like. Torque triggering clearly to be heard and felt Features:. Adjustable torque wrench with square drive and integrated ratchet-head function. Square drive with ratchet mechanism. Torque is set by turning the handle. The set value is fixed through the lock at the end of the handle. Easy-to-read scale with magnifying glass for Nm, plus 1/10 scale for precision setting. Actuation accuracy: +/- 3 % tolerance of the scale set torque Scope of delivery:. Torque wrench with test certificate acc. to DIN EN ISO 6790
| Drive Connector Square (Male) | 12.5mm |
| Overall Length | 485mm |
| Precision | +/- 3 % |
| Trigger Mechanism | Short path triggering |
| Torque Range | 40 - 200Nm |
| Width | 52mm |
| Tightening Direction | Left and right |
| Maximum Torque | 200 N\u00b7mNm |
| Number of Teeth | 48 |
| Length | 485mm |
| Torque Wrench Type | Adjustable |
| Calibration Length | 394.2mm |
| Return Angle | 7.5\u00b0 |
| Height | 45mm |
| Standards Met | DIN EN ISO 6789-2 |
| Product Type | Torque Wrenches |
| Drive Type | square socket with kNob |
| Minimum Torque | 40 N\u00b7mNm |
| Graduation | 10 |
