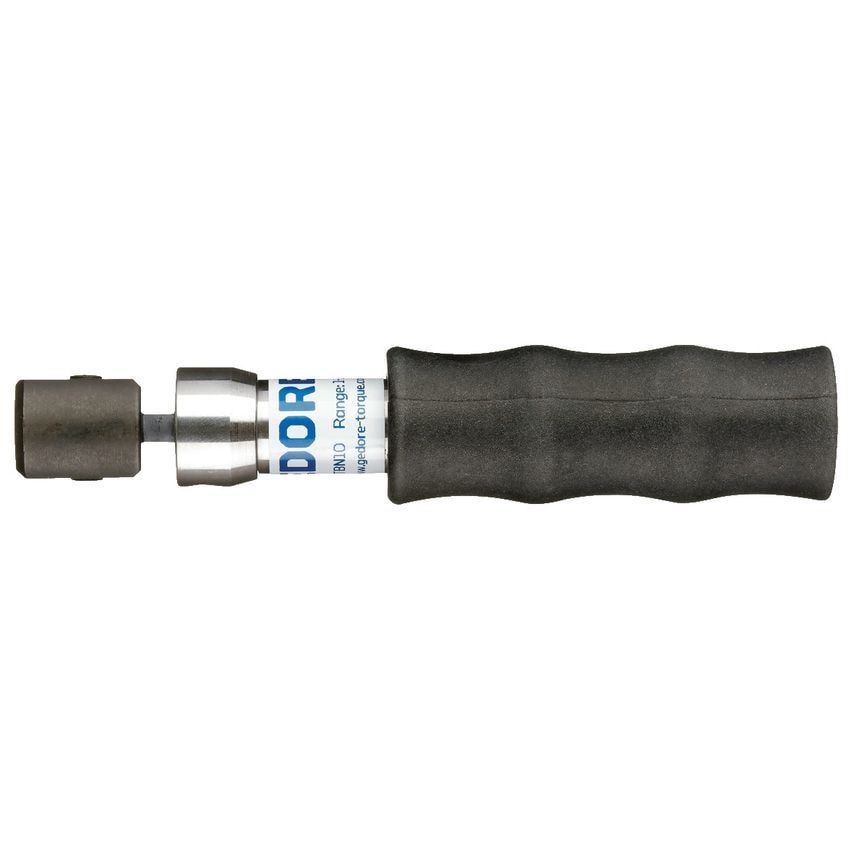

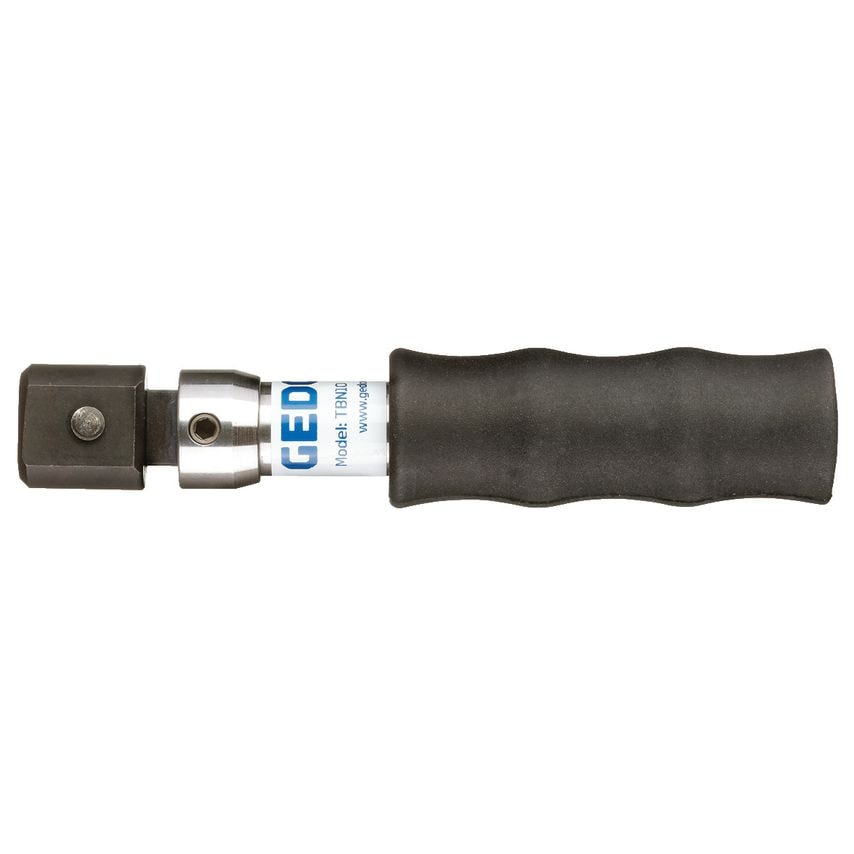

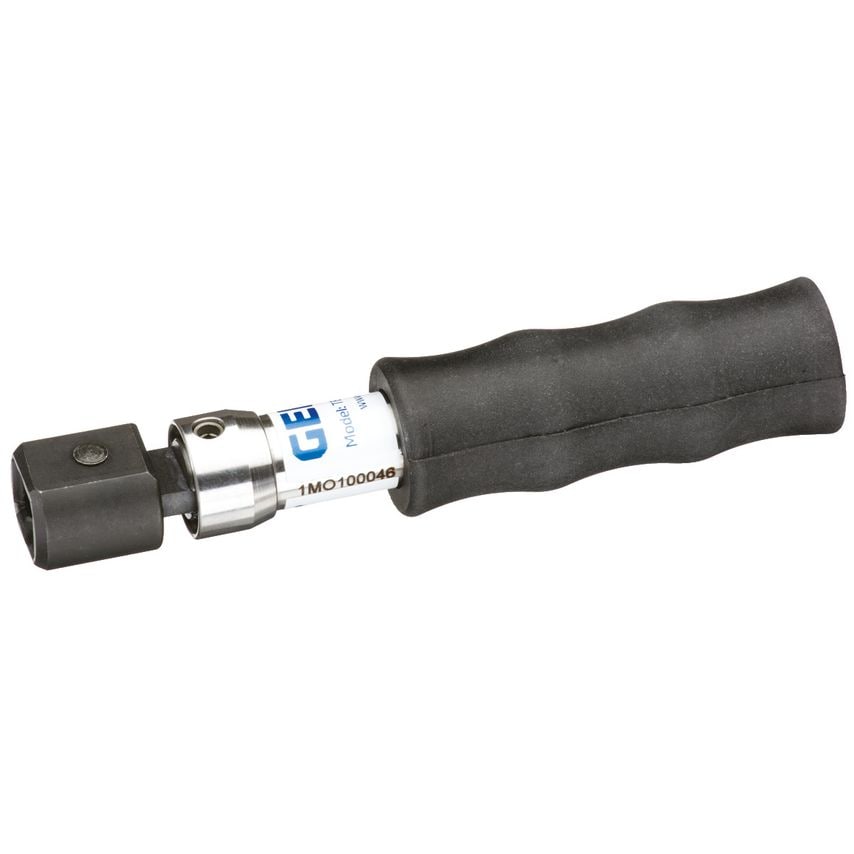

TBN Breaking Torque wrench 9x12 1-10 Nm

Use: Controlled screw tightening in the most common range of 1 - 10 Nm Serial / production-line Extremely long-term work Features: Pre-set production torque wrench - without scale With 9x12 mm rectangular-cavity-end For bi-directional tightening (the wrench only has to be turned by 180!) Working accuracy: +/- 4 % tolerance of set torque Acc. to DIN EN ISO 6789, traceable to national standards Breaking of the handgrip by 20 when the pre-set torque value is achieved makes over-tightening unlikely Automatic resetting to the starting position Lightweight, but robust and corrosion-resistant construction design Very convenient non-slip rubber handgrip No. TBN 2 G: EPA (Electrostatic Protected Area) compliant, for use in electrostatically sensitive applications The pre-setting can be made at the factory or by the user on suitable torque testers If ordering, please specify the Nm value - if a fixed factory pre-setting is desired (price on request) Scope of delivery: Torque wrench TBN Breaking Torque wrench Special adjusting key for changing the pre-set torque value Test certificate acc. to DIN EN ISO 6789 Delivery in sturdy cardboard packaging

Length	133mm
Tightening Direction	Left and right
Standards Met	DIN EN ISO 6789-2
Product Type	Torque Wrenches
Minimum Torque	2 N\u00b7mNm
Trigger Mechanism	Long travel triggering
Drive Type	Rectangular cavity
Material	Tubular Steel Construction
Drive Connector Rectangular	9 x 12mm
Maximum Torque	10 N\u00b7mNm
Precision	+/- 6 %
