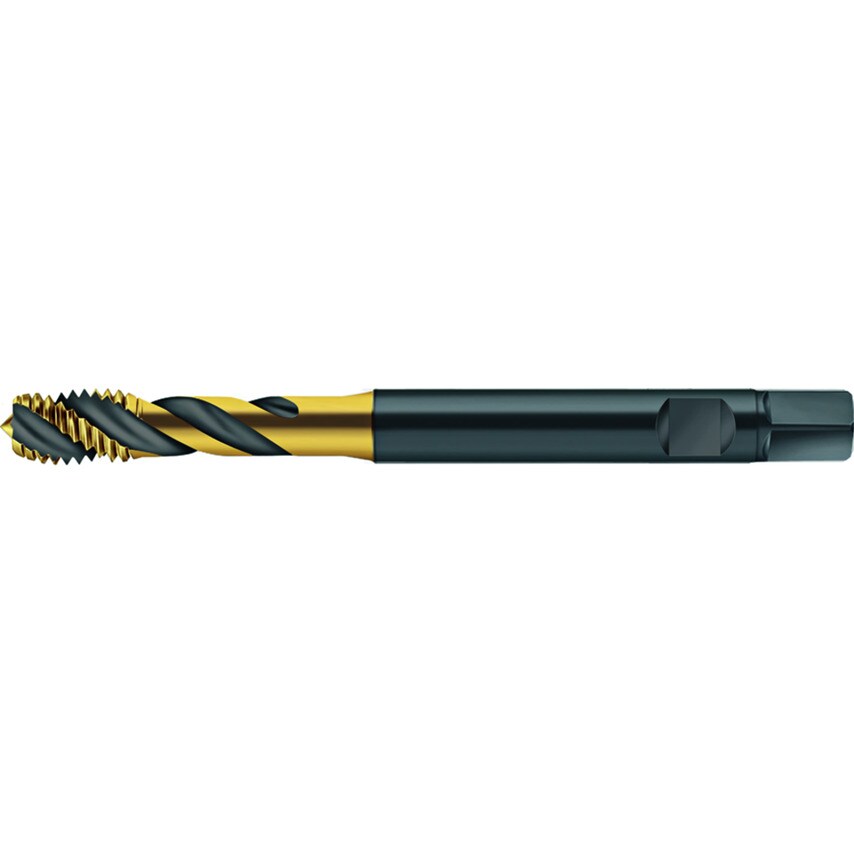

HSS-E machine taps Paradur Synch. C = 2-3xTP (semi-bottom chamfer) 2,5xD M/6HX ~DIN 371 right hand flute 40 Suitable for blind hole TIN/VAP M 2.5 P=0.0177in
| Thread Size | M 2.5 |
| Functional Length | 70mm |
| Cutting Edge Length | 4.5mm |
| Driving Square Length | 8mm |
| Number of Grooves | 3 |
| MFR Part No. | 5101689 |
| Clamping Width | 4.9mm |
| Tool Designation | S2051305-M2.5 |
| Usable Length | 9.3mm |
| Thread Pitch | 0.45mm |
| Connection Diameter | 6mm |
