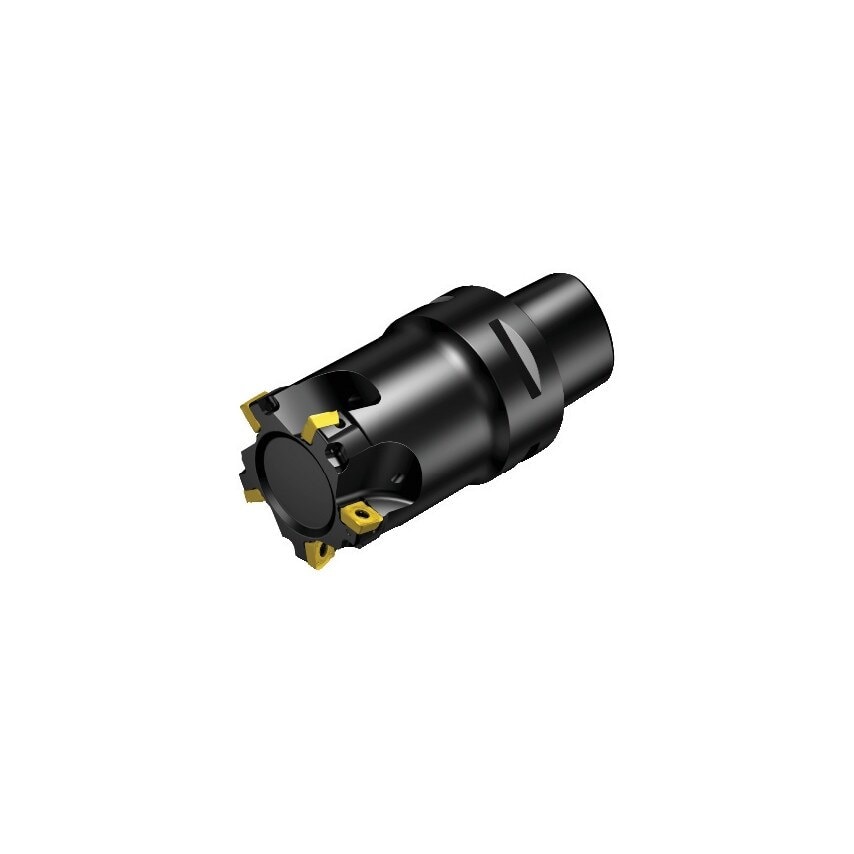

Product Range: CoroMill 490Tool Type: Shoulder millingFeatures & Benefits- First choice for general and repeated shoulder milling- 4 cutting edges- Shim for extra security- Internal coolant- True 90 cuts without sharp steps- Sharp edge lines and burr-free, smooth profiles, which also efficiently reduces the need for a finishing operation- The light cutting performance provides an excellent surface finish and optimal utilization of low-powered machine tools. This also facilitates use of the cutter on extended tool assembliesApplicationGeneral and repeated shoulder milling, Face milling, Edging, Plunge milling, Slot milling, Roughing to finishing
| CoroPak | 90 |
| Usable Length | 60mm |
| Standards Met | ISO26623-1 |
| Max. Depth of Cut | 5.5mm |
| Functional Length | 80mm |
| Cutting Diameter | 31.5mm |
| Damping Property | No |
| Body Material | Steel |
| Through Hole Function Property | Yes |
| Connection Diameter | 6mm |
| Tool Cutting Edge Angle | 90\u00b0 |
| Rotational Speed Maximum | 40400 1/min |
| Maximum Ramping Angle | 0\u00b0 |
| MFR Part No. | 12308973 |
| Weight | 0.28kg |
| Unit Measured | Metric |
| Hand Preference | Right |
| Functional Diameter | 22mm |
| Maximum Cutting Depth | 5.5mm |
