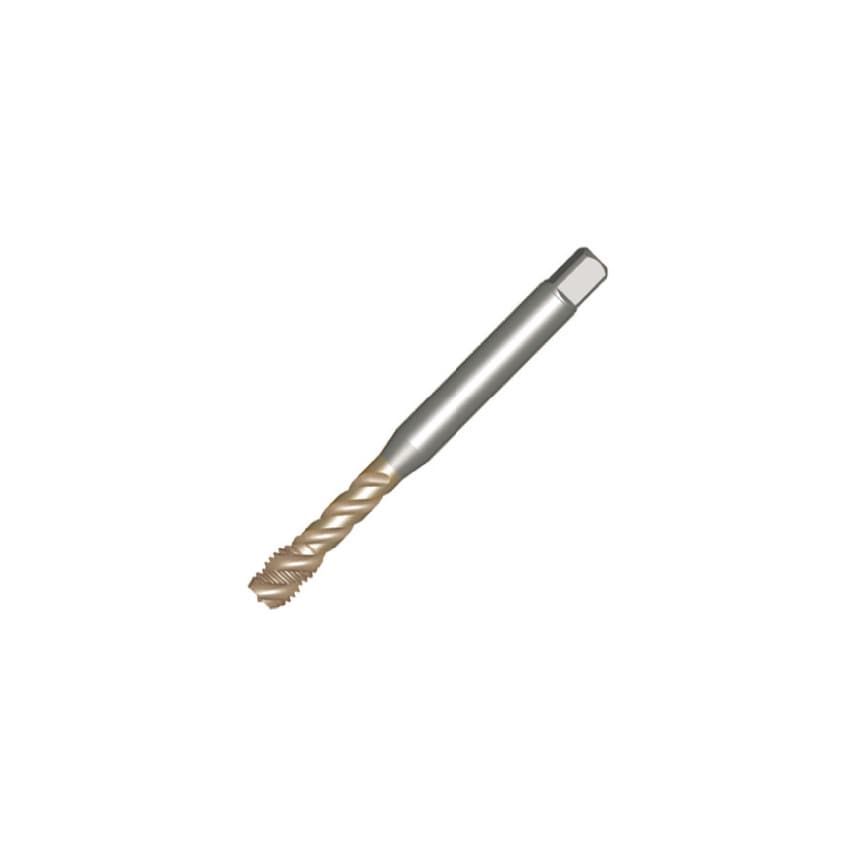

Product Range: CoroTap 300Tool Type: TappingCoroTap 300 is a range of spiral flute taps suitable for tapping in blind holes up to 3 D. There are different helix angles suitable for different applications. The range features versatile taps for various materials and optimized taps for specific materials and applications. Tailor Made and Advanced Engineered tools are available within the Customized solutions range.Features & Benefits- Spiral flute taps for blind holes- Variety of thread forms, thread tolerances and standards- Evacuates chips out of the hole
| Thread Diameter Size | UNF #10-32 |
| Thread Tolerance Class | 2B |
| Basic Standard Group | DIN 2184-1 |
| Blind Hole Function Property | Yes |
| Unit Measured | Metric |
| Threads Per Inch | 32 |
| Coolant Entry Style | Without Coolant |
| CoroPak | 14.1 |
| Usable Length | 25mm |
| MFR Part No. | 26539615 |
| Connection Diameter | 12.86mm |
| Coating Process Type | PVD |
| Functional Length | 70mm |
| Coating Type | AlCrN |
| Through Hole Function Property | Yes |
| Grade | C110 |
| Coolant Exit Style | 0 |
