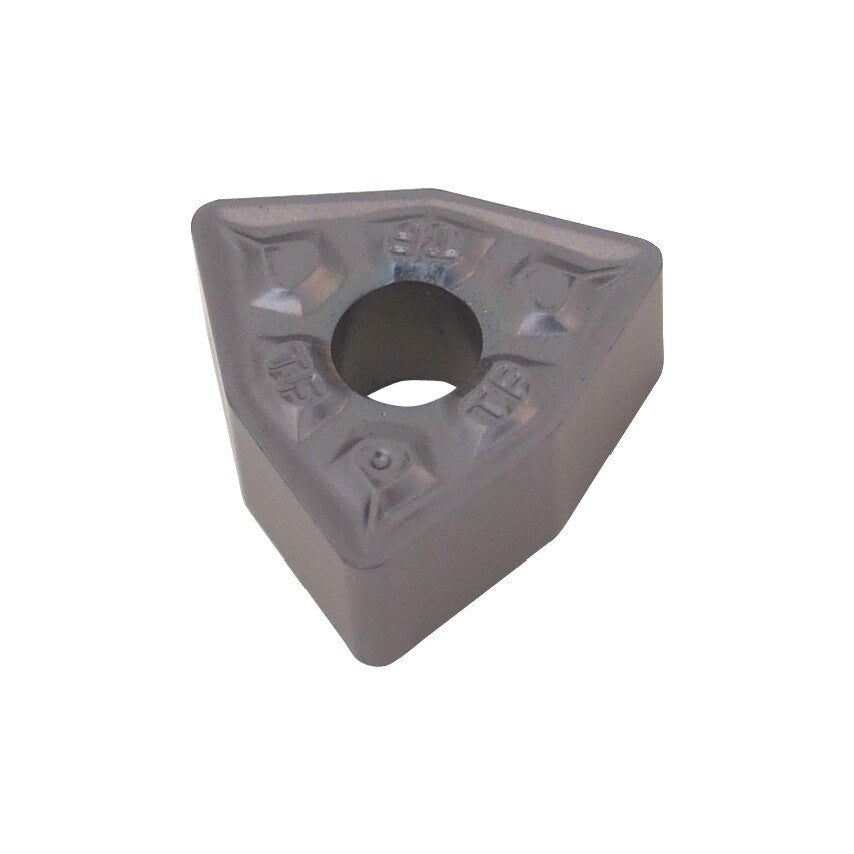

WNMG Turning Inserts
80 Trigon Insert
Double-sided inserts with negative (0) relief angle, offering a strong edge for general applications and varying depths of cut dependent on chipbreaker type across most materials.
Insert Grade IC907
ISO Range - (P10-P30)(M05-M20)(K15-K30)(H05-H15)(S05-S20)(N05-N20)
Coating - PVD TiAlN+TiN
A tough sub-micron substrate, suitable for low-to-medium cutting speeds.For machining of heat resistant alloys, austenitic stainless steel and hard steel.
Chipbreaker : TF . Application Medium
Chipbreaker : GN . Application Medium
| Shape | Trigon |
| ISO Category | H | K | M | N | P | S |
| Insert Size | 060408 |
| ISO Cut | H05 to H15 | K15 to K30 | M05 to M20 | N05 to N20 | P10 to P30 | S05 to S20 |
| Material | Carbide |
| ISO Category Grade | H | K | M | N | P | S |
| Pack Quantity | 1 |
| Material Application | Cast Iron | Hardened Steel | Nonferrous Metals | Nonferrous Metals | Stainless Steels | Steels |
| Clearance Angle | 0\u00b0 |
| Corner Radius | 0.8 |
| Insert Style | WNMG |
| Inscribed Circle | 9.52mm |
| Cutting Direction | Neutral |
| ISO Designation | WNMG 060408-TF |
| Chipbreaker | TF |
| Cutting Edge Length | 6.5mm |
| Thickness | 4.76mm |
| Manufacturer Grade | IC907 |
| Finish/Coating | TiAIN/TiN |
| MFR Part No. | 5594751 |
