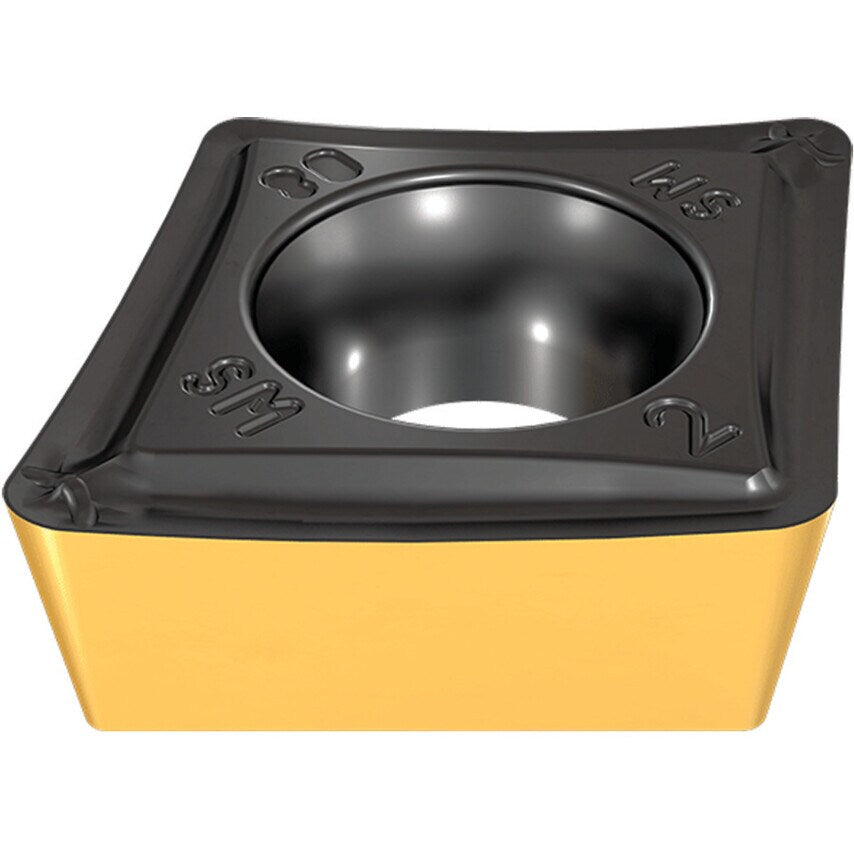

CCMT turning inserts single-sided, 7 positive relief angle inserts for semi-finish and finish cutting. "M" tolerance edge condition for general applications. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials, including non-ferrous and exotic alloys.
Features and Benefits
Tough substrate with a cobalt enriched layer for greater cutting strength
Thick CVD TiCN+alpha Al2O3+TiN coating for high toughness and wear resistance
Chipbreaker SM for finishing applications
Typical Applications
General use machining
Steel
Standards
Insert Grade IC9250
ISO Range - (P10-P35)(M05-M20)
| Manufacturer Grade | IC9250 |
| Material | Carbide |
| Material Application | Nonferrous Metals | Nonferrous Metals |
| Chipbreaker | SM |
| Cutting Direction | Neutral |
| Pack Quantity | 1 |
| ISO Designation | CCMT 09T308-SM |
| ISO Category | M | P |
| Cutting Edge Length | 9.7mm |
| Clearance Angle | 7\u00b0 |
| ISO Cut | M05 to M20 | P10 to P35 |
| Insert Size | 09T308 |
| Finish/Coating | Al2O3+TiCN+TiN |
| ISO Category Grade | M | P |
| Thickness | 3.97mm |
| Corner Radius | 0.8 |
| Inscribed Circle | 9.525mm |
| Insert Style | CCMT |
| MFR Part No. | 5507018 |
| Shape | 80\u00b0 Rhombic |
