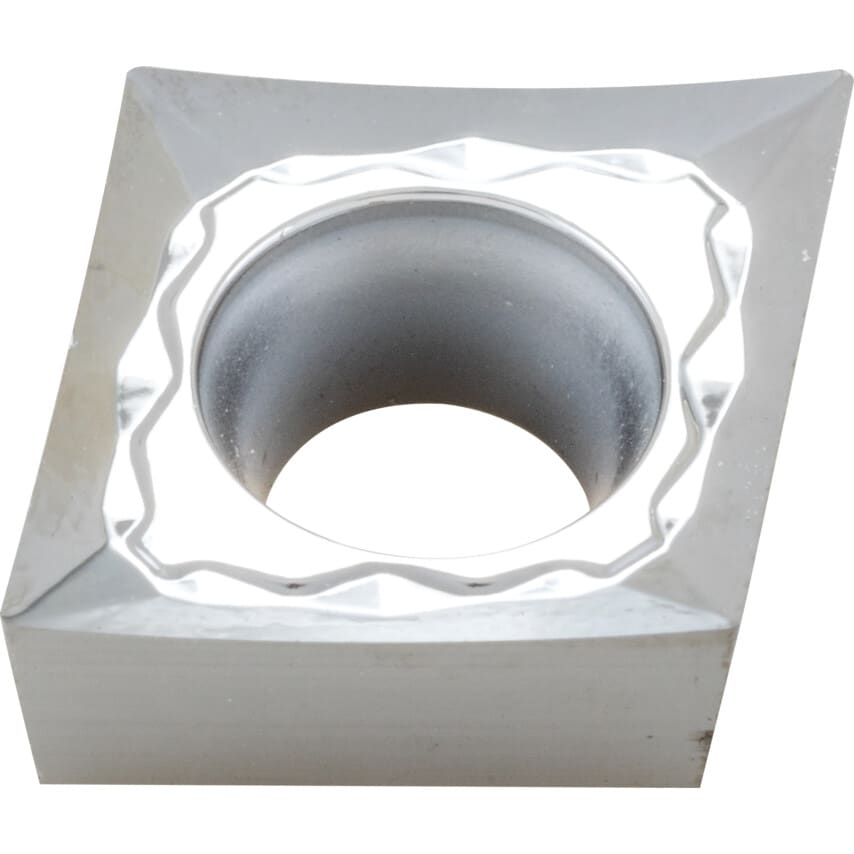

These turning inserts are single-sided, 7 positive relief angle inserts that are ideal for semi-finish and finish cutting. They have an "M" tolerance edge condition, meaning they are suitable for general applications. The inserts have numerous benefits, including chip breaking in moderate feed range, positive rake and low cutting forces. Used for a wide range of materials, including non-ferrous and exotic alloys.
Features and Benefits
Wear resistant
Suitable for general applications
Positive rake and low cutting force
Typical Applications
Turning
Grooving
Semi-finishing
Finishing
| MFR Part No. | 5502778 |
| Corner Radius | 0.2 |
| ISO Cut | M05 to M15 | P05 to P25 |
| Finish/Coating | Uncoated |
| ISO Category | M | P |
| Manufacturer Grade | IC20N |
| ISO Category Grade | M | P |
| Clearance Angle | 7\u00b0 |
| Cutting Edge Length | 9.7mm |
| Shape | 80\u00b0 Rhombic |
| Material Application | Nonferrous Metals | Nonferrous Metals |
| Insert Style | CCMT |
| Material | Cermet |
| ISO Designation | CCMT 09T302 |
| Thickness | 3.97mm |
| Insert Size | 09T302 |
| Inscribed Circle | 9.525mm |
| Pack Quantity | 1 |
