DCMT Turning Inserts
55 Rhombic Insert
7 positive flank inserts used for semi-finishing and finish turning. Chip breaking in moderate feed range. Positive rake, low cutting forces. Used for a wide range of materials
IC9250
ISO Range - (P20-P30)(M15-M30)
Grade or Coating Type: CVD
Coating Layers: TiCN+alpha Al2O3+TiN
A finishing grade for steel and stainless
| ISO Category | M | P |
| Manufacturer Grade | IC9250 |
| Chipbreaker | SM |
| ISO Category Grade | M | P |

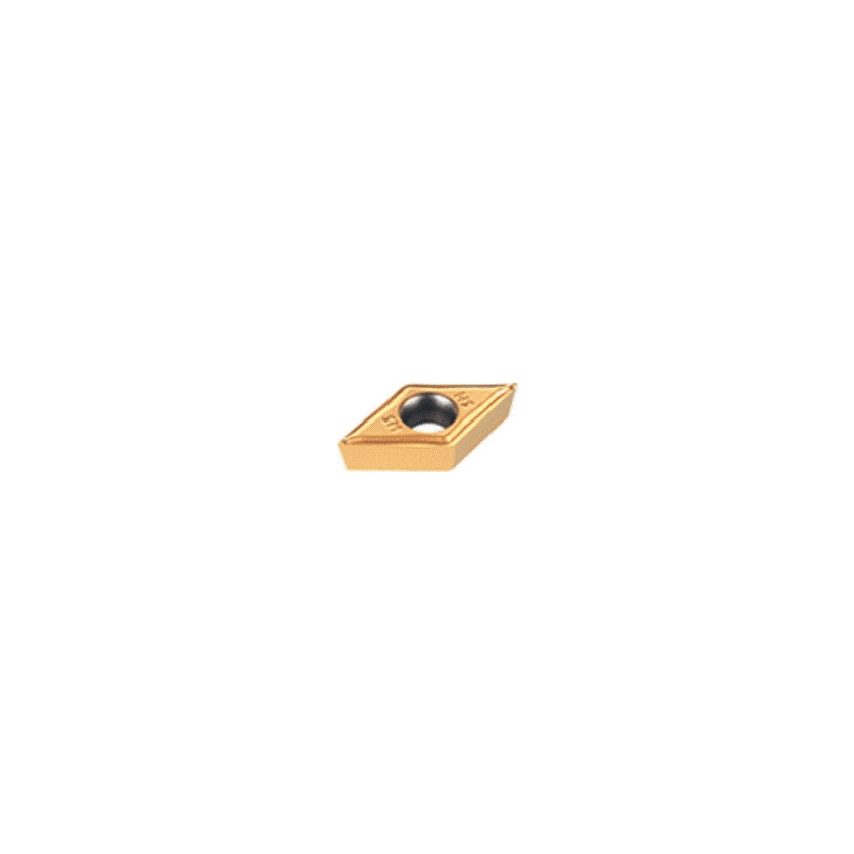

| ISO Designation | DCMT 11T304-SM |
| Corner Radius | 0.4 |
| MFR Part No. | 5507024 |
| Thickness | 3.97mm |
| ISO Cut | M15 to M30 | P20 to P30 |
| Insert Style | DCMT |
| Cutting Direction | Neutral |
| Pack Quantity | 1 |
| Material Application | Stainless Steels | Steels |
| Insert Size | 11T304 |
| Material | Carbide |
| Inscribed Circle | 9.525mm |
| Shape | 55\u00b0 Rhombic |
| Clearance Angle | 7\u00b0 |
| Finish/Coating | TiCN+alpha Al2O3+TiN |
| Cutting Edge Length | 11.6mm |
