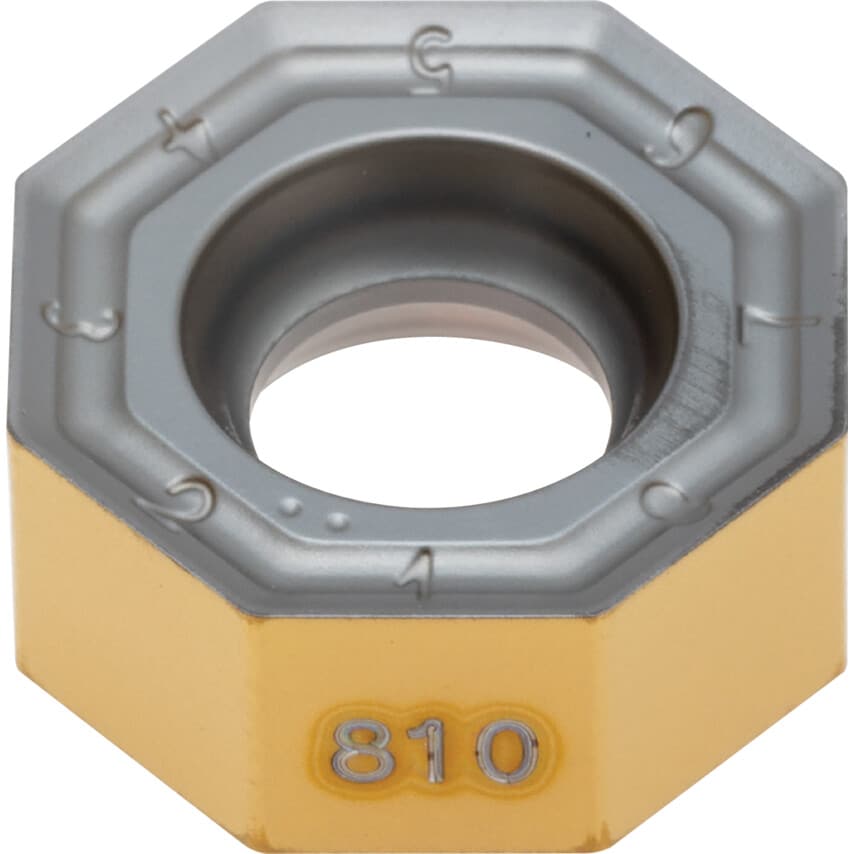

ONMU Milling Inserts
Grade: IC810
PVD AlTiN+TiN 'SUMO TEC' coated grade. First choice for milling nodular cast iron at medium to high cutting speeds.
ISO Range - P/M/K: (P15-P30)(K15-K35)
Grade or Coating Type: PVD
Coating Layers: AlTiN+TiN
Iscar's ONMU octagonal, double-sided inserts with16 cutting edges are the most economical insert regarding price per cutting edge. The inserts have helical cutting edges and positive rake angles, featuring low power consumption and excellent surface finish. The new inserts are available in the most advanced SUMO TEC carbide grades.
| ISO Designation | ONMU 050505-TN |
| ISO Category Grade | K | P |
| Finish/Coating | AlTiN |
| Chipbreaker | TN |
| Insert Size | 505 |
| Clearance Angle | 0\u00b0 |
| Shape | Octagon |
| Manufacturer Grade | IC810 |
| Cutting Direction | Neutral |
| Thickness | 5.56mm |
| Insert Style | ONMU |
| Material Application | Cast Iron |
| ISO Cut | K05 to K25 | P15 to P30 |
| Material | Carbide |
| Pack Quantity | 1 |
