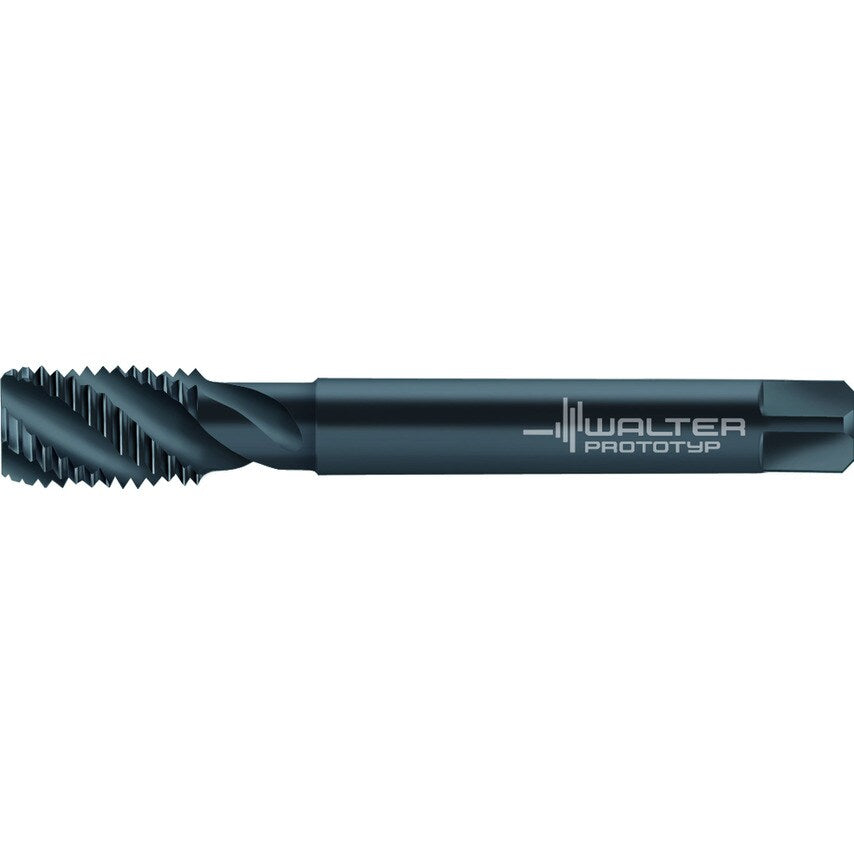

HSS-E machine taps Perform C = 2-3xTP (semi-bottom chamfer) 3xD MF/6H DIN 374 right hand flute 45 Suitable for blind hole WY80FC MF 8x1 P=0.0394in
| Usable Length | 67mm |
| Connection Diameter | 6mm |
| Tool Designation | TC115-M8X1-L0-WY80FC |
| Thread Pitch | 1mm |
| Driving Square Length | 8mm |
| Thread Size | MF 8x1 |
| Functional Length | 90mm |
| Number of Grooves | 3 |
| Clamping Width | 4.9mm |
| MFR Part No. | 6958835 |
| Cutting Edge Length | 12mm |
