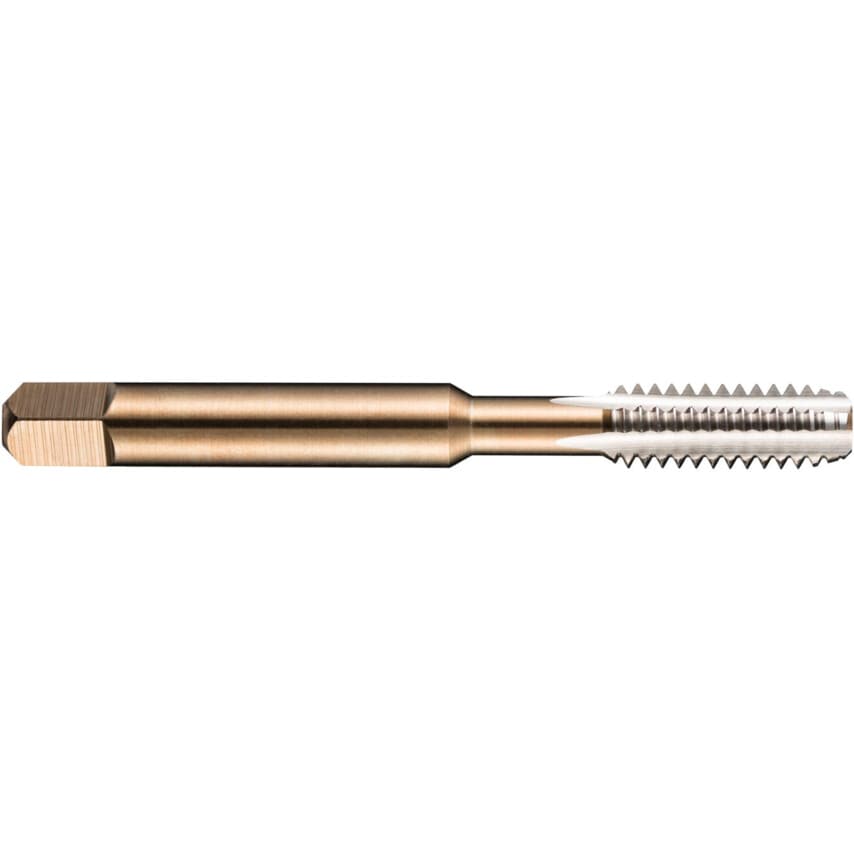

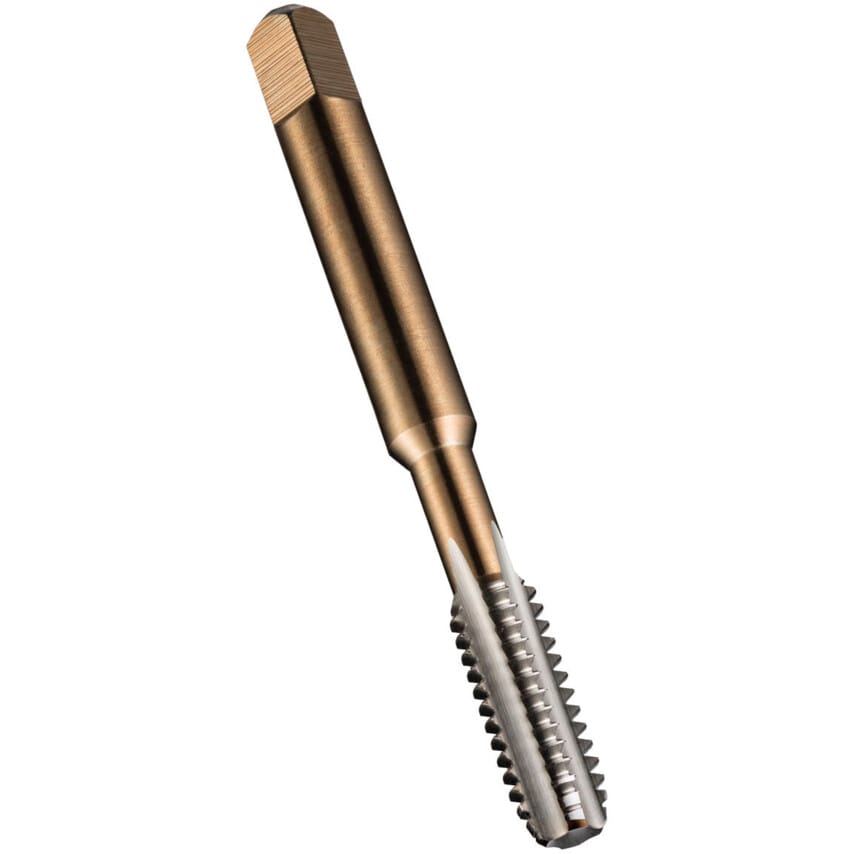

Series E531 HSS Straight Flute Tap Set - BSW
HSS, bright finish straight flute. Right hand cut.
Tolerance medium. 1.5xD.
Manufactured to ISO529.
Sets include 1 of each tap (Taper, Second, and Plug)
| MFR Part No. | E5311/4NO6 |
| Thread Standard | BSW |
| Pitch | 20 |
| Helix Angle | Medium |
| Material Grade | M2 |
| Series | E531 |
| Class of Fit | 2B |
| Overall Length | 66.0mm |
| Chamfer | Plug; Second; Taper |
| Number of Flutes | 3 |
| Threading Tap Type | Hand Tap |
| Number of Pieces | 3 |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Finish/Coating | Bright |
| Shank Diameter | 6.3mm |
| Square Width | 5.0mm |
| ISO Category | K | N | P |
| Model Number | E531 |
| Thread Length | 13.0mm |
| Material | HSS |
| Dimensions Standard | ISO 529 |
| Thread Size | 1/4in |
