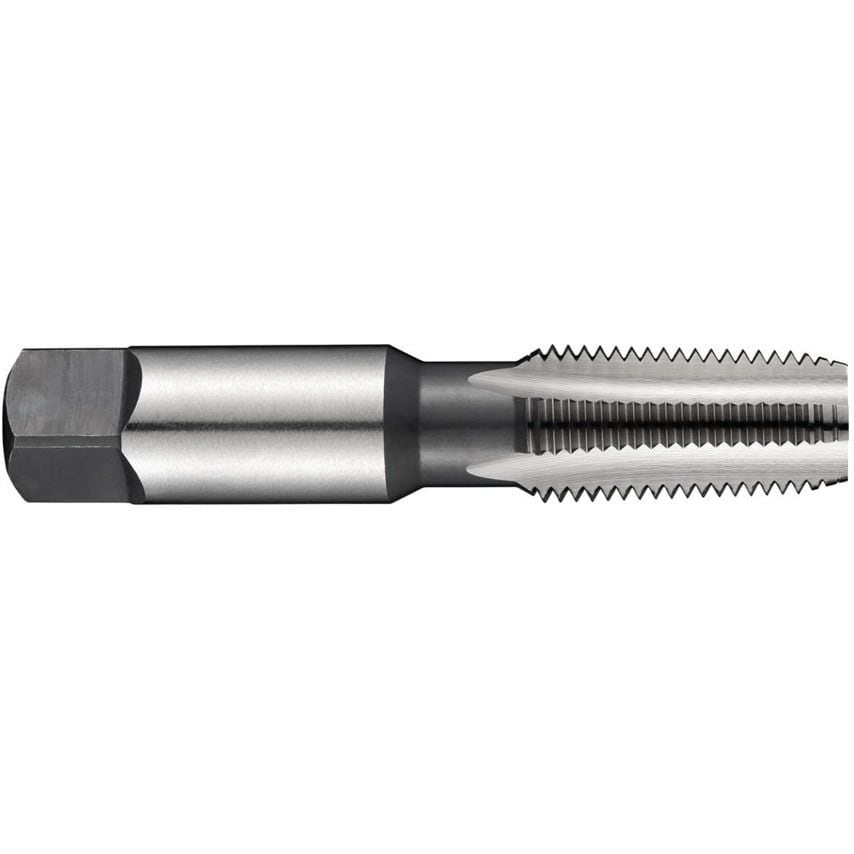

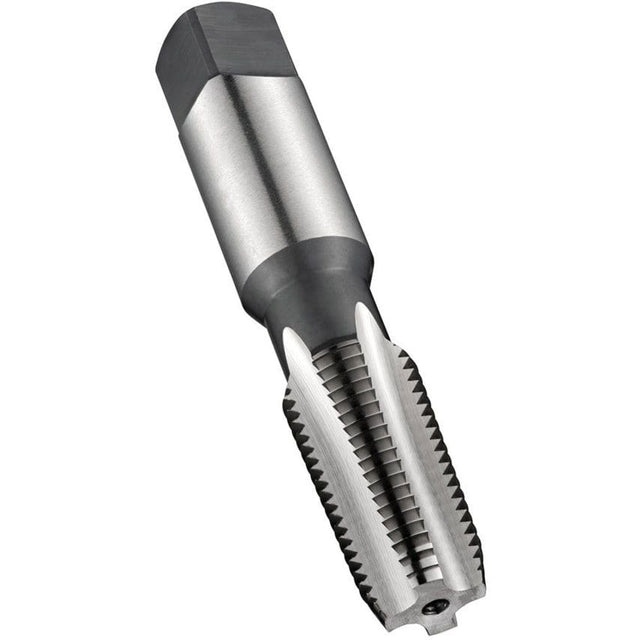

Set of straight flute hand taps NO7 for National Pipe Taper thread NPT 1/4" with 18 TPI and Normal class of fit
| Series | E710 |
| Tap Chamfer Style | B 4 - 6 / C 2 - 3 |
| Thread Length | 27mm |
| Material | HSS |
| Overall Length | 75mm |
| Finish/Coating | Bright |
| Number of Pieces | 2 |
| Thread Form | NPT - National taper pipe |
| ISO Category | K | N | P |
| Flute Geometry (FDC) | Straight Flute Geometry |
| Square Width | 10.7mm |
| Cutting Direction | Right |
| Tap Application | Through or Blind Hole |
| Thread Standard | NPT |
| Shank Diameter | 10.7mm |
| Shank | Cylindrical Shank with Square |
| Thread Size | 1/4in |
| MFR Part No. | E7101/4NO7 |
| Tap Type | Straight Flute |
| Finish | Bright |
| Number of Flutes | 4 |
| Standards | ~ANSI B94.9 |
| Chamfer | Set |
| Unit of Measurement | Imperial |
