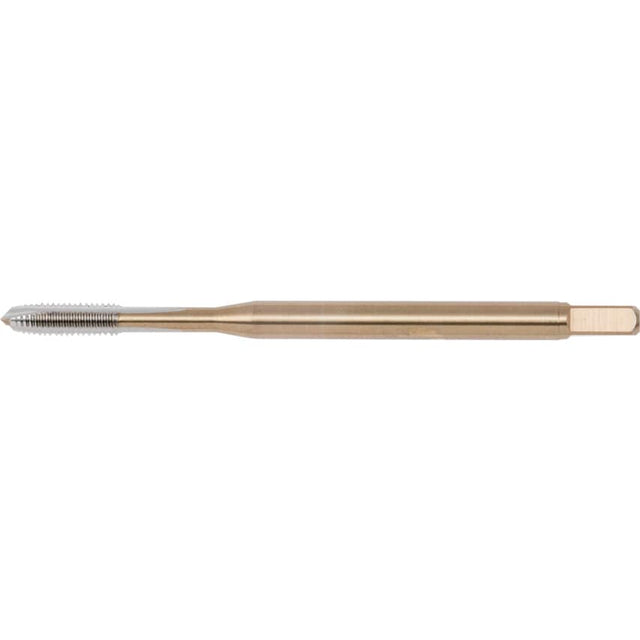

EP00 HSS-E PM Spiral Point Tap Metric Form Multi-application machine taps offering superb performance in a wide range of materials 2.5xD Programme is available in a choice of finishes: Bright, Steam Tempered or Titanium Nitride Coated (TiN) Spiral point for through holes EP00 available in sizes M2 - M30 Manufactured to DIN 371 <10mm DIN 376 > 12mm Bright Finish - Suitable for Steel, Cast Iron, Titanium, Nickel, Copper and Aluminium
| Overall Length | 90.00mm |
| Finish/Coating | Bright |
| Series | EP006H |
| MFR Part No. | EP00M8 |
| Tapping Depth | 35.00mm |
| Thread Direction | Right Hand |
| Square Width | 4.90mm |
| Shank Diameter | 6.0mm |
| Class of Fit | 6H |
| Pitch | 1.3 |
| Thread Size | M8 |
| Tap Type | Spiral Point |
| Material Grade | M35 |
| Product Type | Machine Taps |
| Number of Flutes | 3 |
| Material | Powdered Metal Cobalt High Speed Steel |
| Dimensions Standard | DIN 376 |
| Thread Length | 18.0mm |
| Thread Standard | Metric Coarse |
