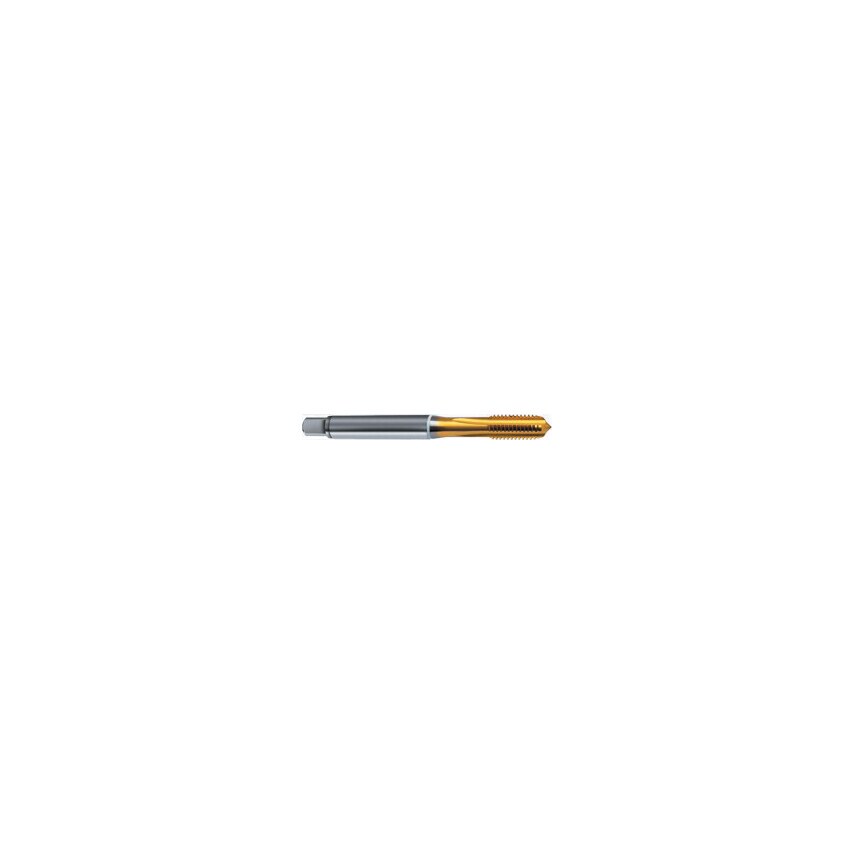

Series 930
Standard DIN 371, DIN 2184-1
Tool material: HSS-E
Spiral point: straight flute
Chamfer Form C 2-3
Tolerance zone: 6HX
Blind holes
TiN finish
External cooling
| Square Width | 6.2 |
| Helix Angle | 0 |
| Dimensions Standard | DIN 371 |
| Thread Size | M 8 |
| Class of Fit | 6HX |
| Series | 930 |
| Tap Type | Spiral Point |
| Thread Standard | M |
| Number of Flutes | 4 |
| Thread Length | 17 |
| Tapping Depth | 35 |
| Finish/Coating | TiN |
| Shank Diameter | 8 |
| Material Grade | M35 |
| Material | Cobalt High Speed Steel |
| Overall Length | 90cm |
| Thread Direction | Right Hand |
| MFR Part No. | 00930 008.000 |
