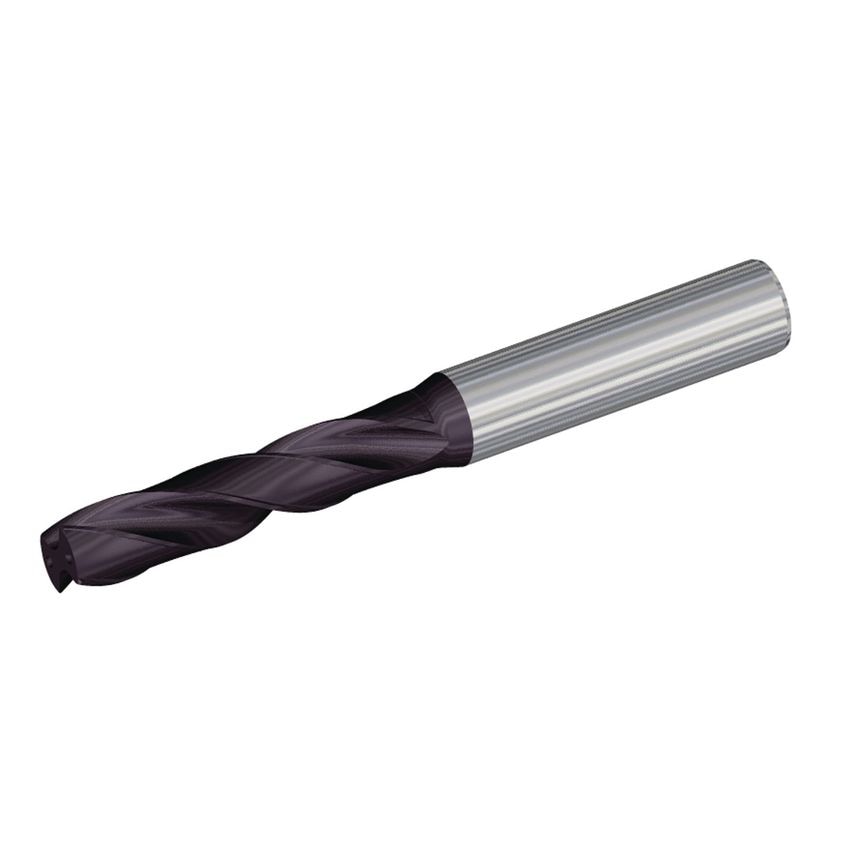

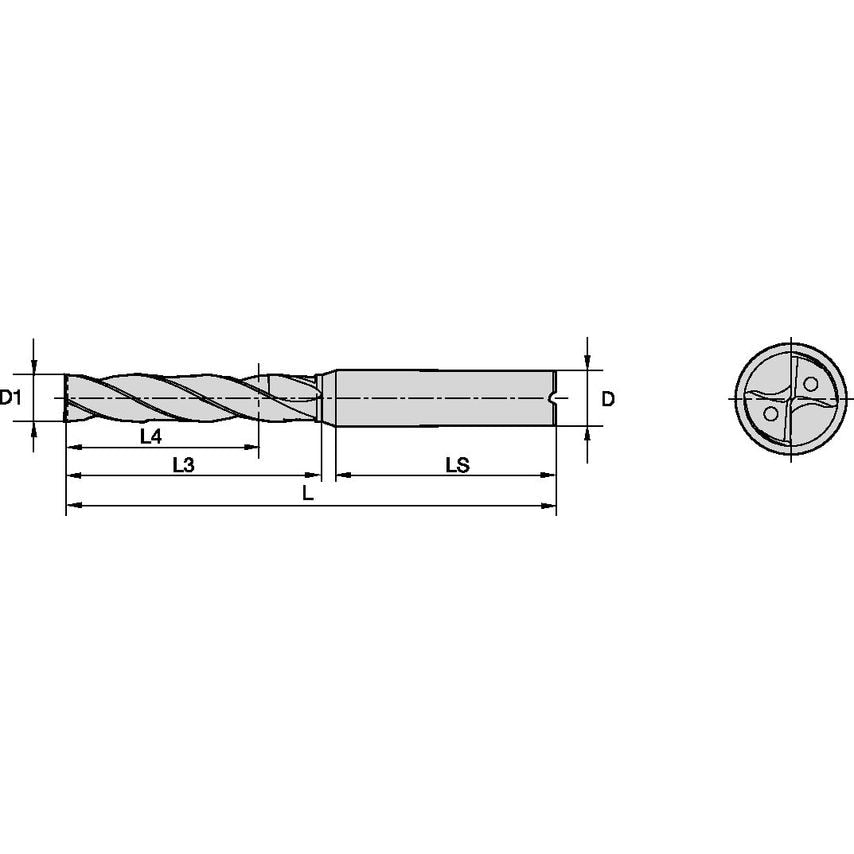

180 Flat-Bottom Drills Through CoolantHigh-Performance Solid Carbide Drills
| Coolant Supplied | Yes |
| Drill Depth | 35mm | 35.0000mm |
| Number of Flutes | 2 |
| Coolant Delivery | Off-center Axial Coolant |
| MFR Part No. | 2985335 |
| Flute Length | 47mm | 47.0000mm |
| Flute Construction | Helical Flute |
| Assembly Length | 52.115mm |
| Functional Length | 88.6400mm |
| Clamping Length | 40mm |
| Drill Diameter | 9.5000mm |
| Material | Carbide |
| Adapter Type | Cylindrical |
| Unit Measured | Metric |
| Drill Diameter Tolerance | 0.006000 to 0.021000mm |
| Shank Length | 40.0000mm |
| Primary Material | Steel |
| Adapter / Shank / Bore Diameter | 10.0000mm |
| Helix Type | Right Hand Helix/Flute |
| Hand Preference | Right |
| Coolant Diameter | 1.4400mm (0.0138in) |
| Finish/Coating | TiAlN |
| Drill Point | 0.36mm |
| Overall Length | 89mm | 89.0000mm |
| Helix Angle | 28.929 |
| Adapter Style | Straight-Cylindrical |
