GOdrill Wide Range of Materials

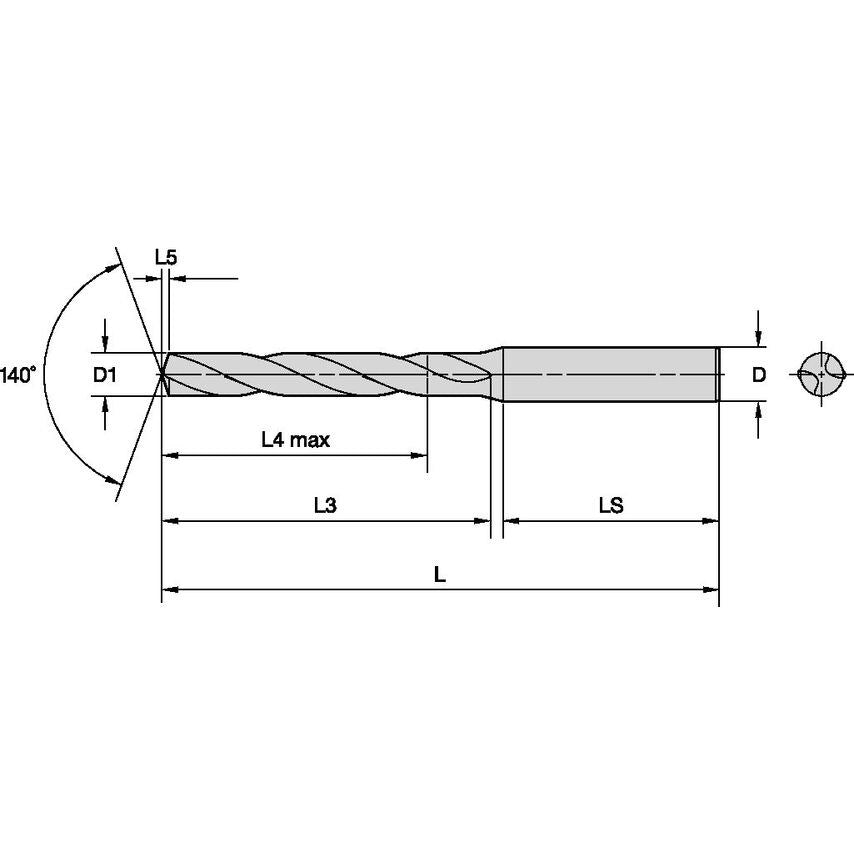

Solid Carbide Drills
| Shank Length | 48.0000mm |
| Drill Point | 2.98mm |
| Helix Angle | 28.385 |
| Clamping Length | 48mm |
| Adapter Style | Straight-Cylindrical |
| Flute Construction | Helical Flute |
| Adapter / Shank / Bore Diameter | 18.0000mm |
| Unit Measured | Metric |
| Functional Length | 140.0200mm |
| Drill Diameter | 17.2000mm |
| Primary Material | Steel |
| Assembly Length | 98.02mm |
| Number of Flutes | 2 |
| Hand Preference | Right |
| Drill Depth | 71mm | 71.0000mm |
| Adapter Type | Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| Flute Length | 93mm | 93.0000mm |
| Coolant Supplied | No |
| Finish/Coating | TiN |
| Overall Length | 143mm | 143.0000mm |
| MFR Part No. | 4150826 |
| Material | Carbide |
| Drill Diameter Tolerance | -0.018000 to 0.000000mm |
