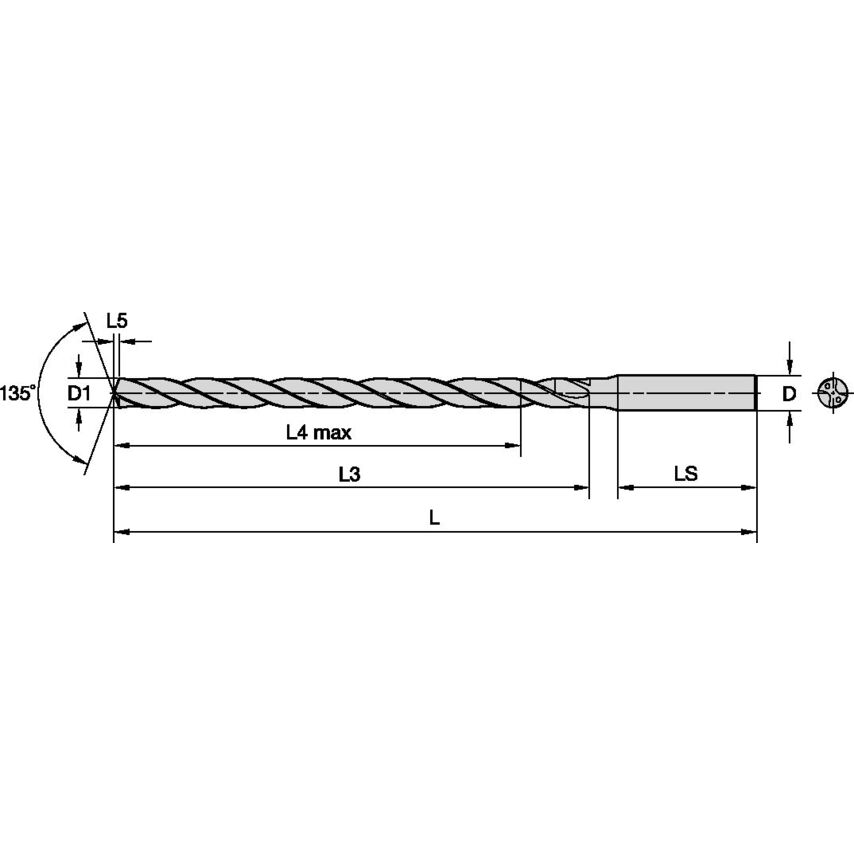

HP Beyond Four-Margin, Long-Length Drills Through Coolant 12 x D
High-Performance Solid Carbide Drills
| Hand Preference | Right |
| Adapter Style | Straight-Cylindrical |
| Drill Point | 2.421mm |
| Drill Diameter | 13.0000mm |
| Drill Depth | 166mm | 166.0000mm |
| Adapter Type | Cylindrical |
| Helix Type | Right Hand Helix/Flute |
| MFR Part No. | 4169301 |
| Material | Carbide |
| Coolant Supplied | Yes |
| Adapter / Shank / Bore Diameter | 14.0000mm |
| Number of Flutes | 2 |
| Overall Length | 246mm | 246.0000mm |
| Unit Measured | Metric |
| Shank Length | 45.0000mm |
| Finish/Coating | TiAlN |
| Drill Diameter Tolerance | 0.007000 to 0.025000mm |
| Flute Construction | Helical Flute |
| Flute Length | 195mm | 195.0000mm |
| Clamping Length | 45mm |
| Helix Angle | 27.546 |
| Assembly Length | 198.579mm |
| Primary Material | Steel |
| Functional Length | 243.5790mm |
